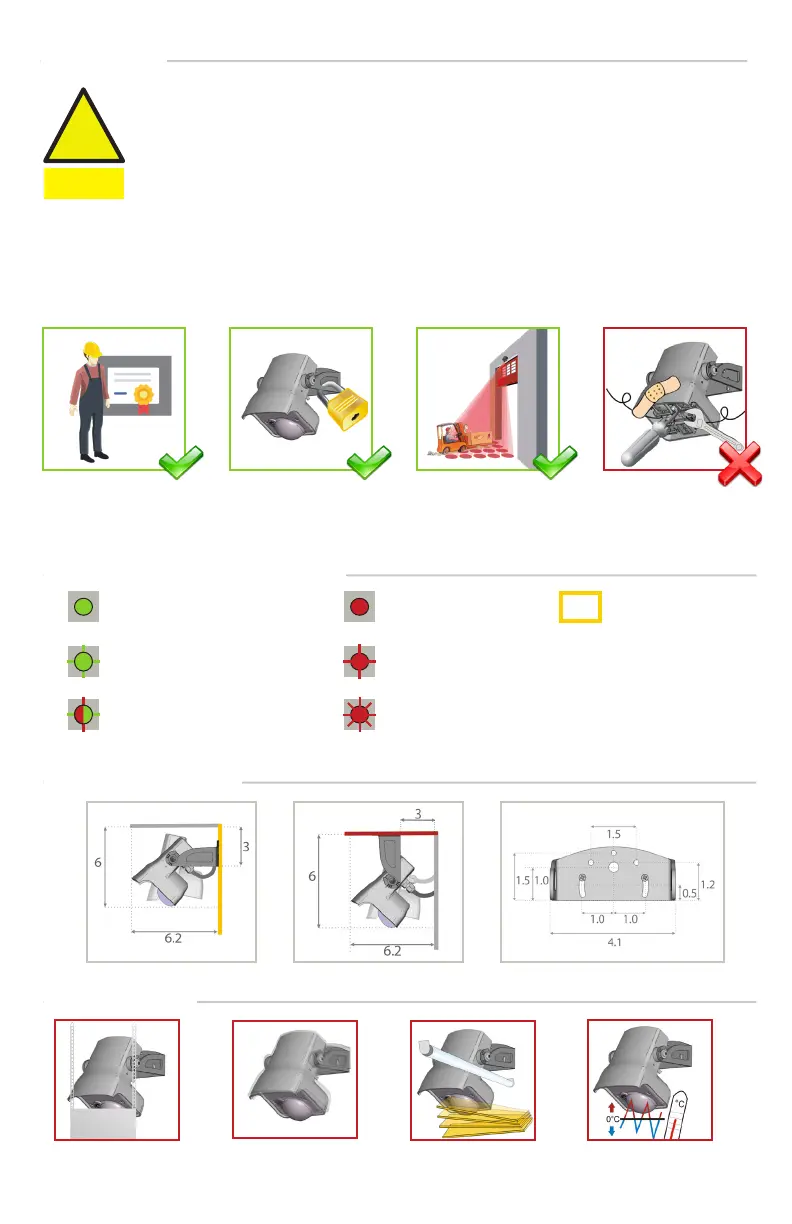

BEA IS40 - Safety Precautions; Product Dimensions; Installation Tips; Mounting Instructions

Page 2 of 8 75.5695.08 IS40 IS40XL 20230627
Avoid proximity to neon
lamps or moving objects.
Do not cover the sensor. Avoid extreme vibrations. Avoid exposing the sensor to
sudden temperature changes.
Wall mounting Ceiling mounting Bracket dimensions
The warranty is void if
unauthorized repairs are
made or attempted by
unauthorized personnel.
Only trained and qualified
personnel may install and
setup the sensor.
Only trained and
qualified personnel are
recommended to install
and set up the sensor.
Always test the proper
operation of the installation
before leaving the premises.
Activation/Pulse detection Presence detection
LED flashes
Parameter indication for manual setup
LED flashes quickly
LED flashes
Value indication for manual setup
Setup
READ BEFORE BEGINNING INSTALLATION/PROGRAMMING/SET-UP
 Shut off all power going to header before attempting any wiring procedures.
 Maintain a clean and safe environment when working in public areas.
 Constantly be aware of pedestrian/vehicle traffic around the area.
 Always stop pedestrian/vehicle traffic through the doorway when performing tests that may result in
unexpected reactions by the door.
 ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge. Before
handling any board, ensure you dissipate your body’s ESD charge.
 Always check placement of all wiring before powering up to ensure that moving door parts will not catch
any wires and cause damage to equipment.
 Ensure compliance with all applicable safety standards upon completion of installation.
 DO NOT attempt any internal repair of the components. All repairs and/or component replacements must be
performed by BEA, Inc. Unauthorized disassembly or repair:
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided warranty.
PRECAUTIONS
!
CAUTION
green red
LED INDICATIONS AND SYMBOLS
USEFUL DIMENSIONS
MOUNTING TIPS
FACTORY VALUES
green red
redred/green
