BEA ULTIMO - AIR SAFETY FIELD WIDTH

3
Page 12 of 20 75.0034.03 ULTIMO 20220120
The size of the detection field varies
according to the mounting height and
the settings of the sensor.
Widths specified above correlate to
standard mounting height (7'2").
Settings 4 and 5 are only optional in single-slider applications.
2. Always verify the actual AIR detection field by walk-testing according to ANSI 156.10.
Do not use a SPOTFINDER to verify the AIR detection field.
Additional adjustments are possible by LCD or remote control (see OVERVIEW OF SETTINGS).

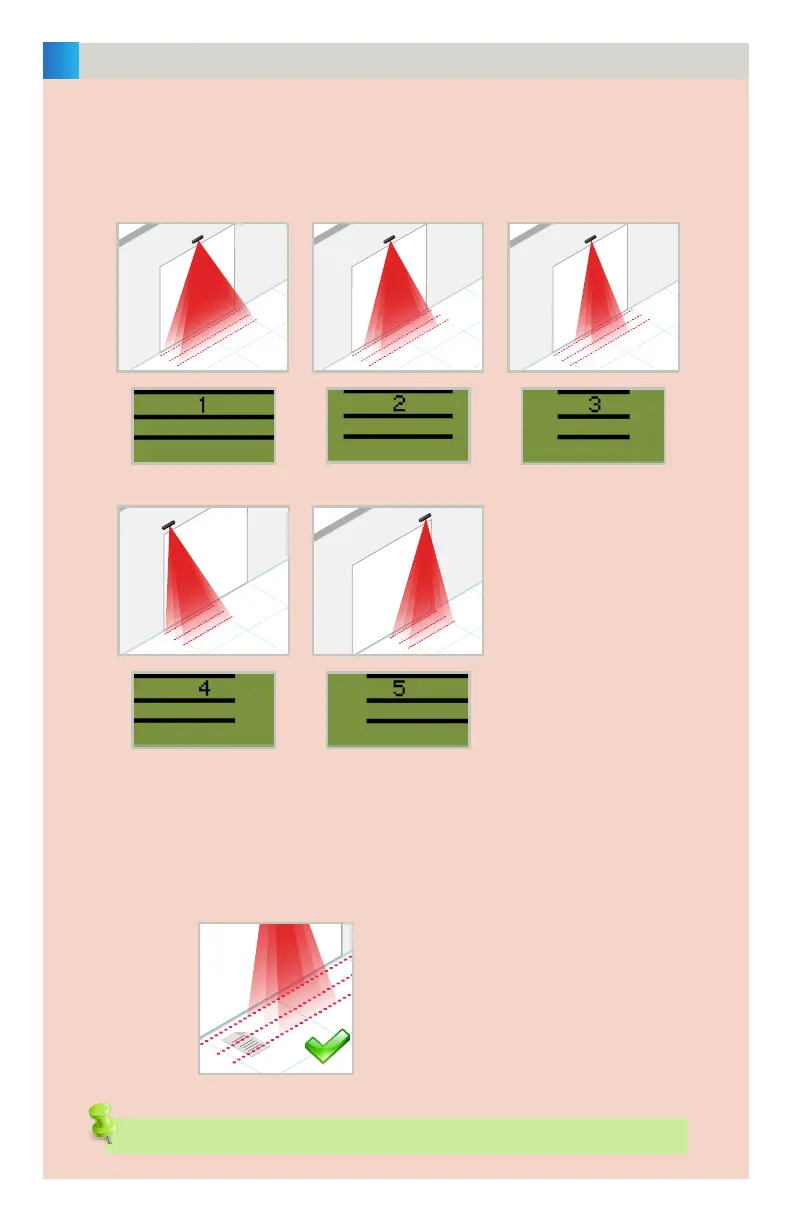

ACTIVE INFRARED SAFETY FIELD
1. If desired, adjust the field width using the LCD menu or remote control buttons (see page 16,
IR:Width menu).
WIDTH
WIDE STANDARD NARROW
LEFT, ANGLED RIGHT, ANGLED
