75.0034.03 ULTIMO 20220120 Page 9 of 20

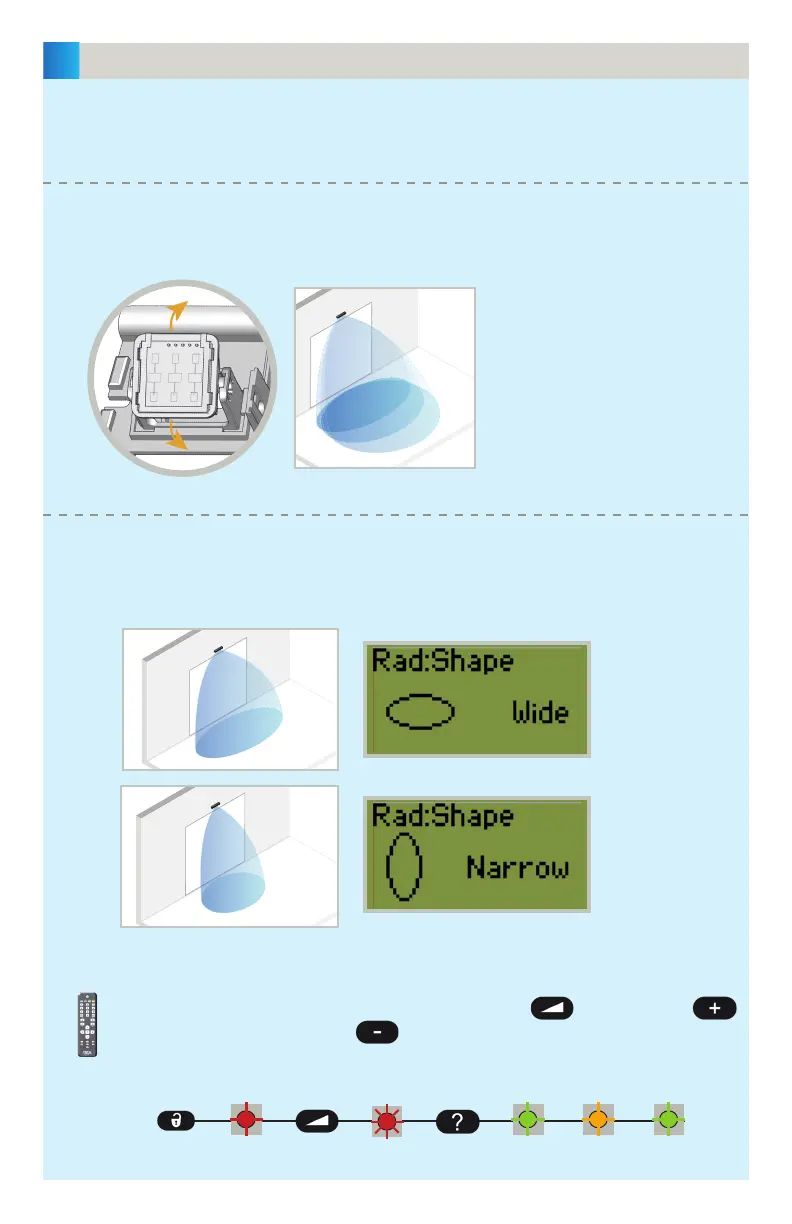

RADAR FIELD
ANGLE
The size of the detection field varies according to the mounting height and parameter settings of
the sensor.
Graphics are representations,
not default settings.
WIDTH
If using remote control, you can also press the RAD:Fieldsize button ( ) and the plus sign ( )
to select Wide shape or the minus sign ( ) to select Narrow shape.
To check the existing radar field size/shape, use the following sequence:
Tilt the antenna up to adjust the depth outward and down to adjust inward from the doorway.
x = number of flashes
= corresponds to the field size
1x = narrow
2x = wide
Navigate to menu 2 of the LCD to choose the desired width shape – wide lobe or narrow lobe.
