21
Quick Start
Languages

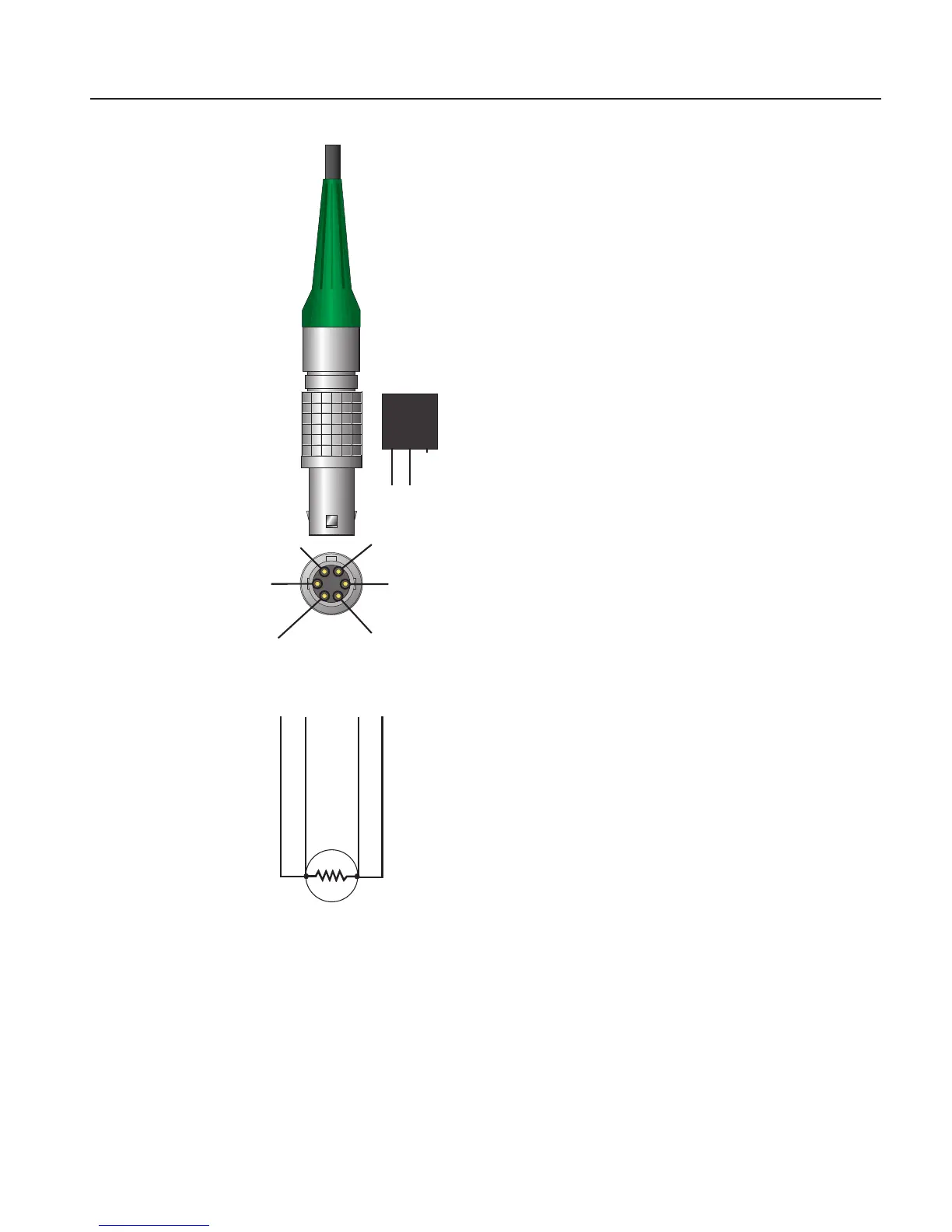

Figure 8
5 4
2
1
Memory
3
6
Pin 1
Excitation
Current –
Pin 2
Sense –
Pin 3
Memory –
(GND)
Pin 4
Sense +
Pin 5
Current +
Pin 6
Memory +
Pre-assembled
inside connector
PRT
Probe connector wiring
A two-wire probe can also be used with the reference thermometer. It is connected
by attaching one wire to both pins 1 and 2 of the plug and the other wire to both pins
4 and 5. If a shield wire is present, it should be connected to pin 3. Accuracy may be
signicantly degraded using a two-wire connection because of lead resistance.
3.3 Languages
The display on Field Temperature Blocks can be set to different languages depending
on the conguration.
