Device Configuration
VPN – PPTP (Example on LAN-to-LAN)
92
BEC MX-200 User Manual

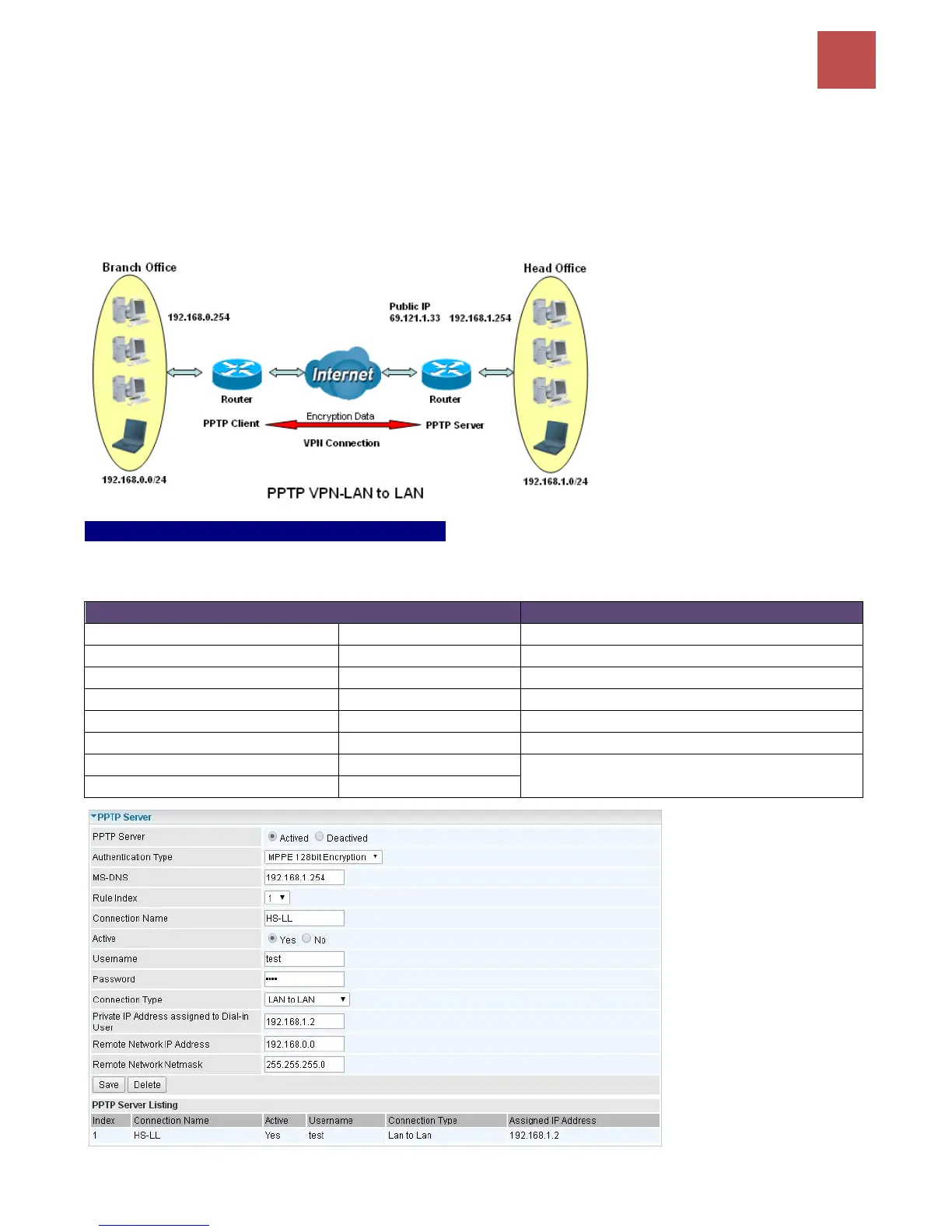

Example: PPTP – Network (LAN) to Network (LAN) Connection
The branch office establishes a PPTP VPN tunnel with head office to connect two private networks
over the Internet. The routers are installed in the head office and branch offices accordingly.
NOTE: Both office LAN networks must be in different subnets with the LAN-LAN application.
Configuring PPTP Server in the Head office
The IP address 192.168.1.2 will be assigned to the router located in the branch office. Please make
sure this IP is not used in the head office LAN.
Configuration Settings
Description
Connection Name
HS-LL
Give a name of PPTP connection
Authentication Type
MPPE 128bit
Authentication type
Username
test
Dial in authenticate user name
Password
test
Dial in authenticate user password
Connection Type
LAN to LAN
LAN to LAN for dial in
Assigned IP
192.168.1.2
An IP assigned to the dial in client
Remote Network IP
129.168.0.0
Remote access network
Remote Network Netmask
255.255.255.0
