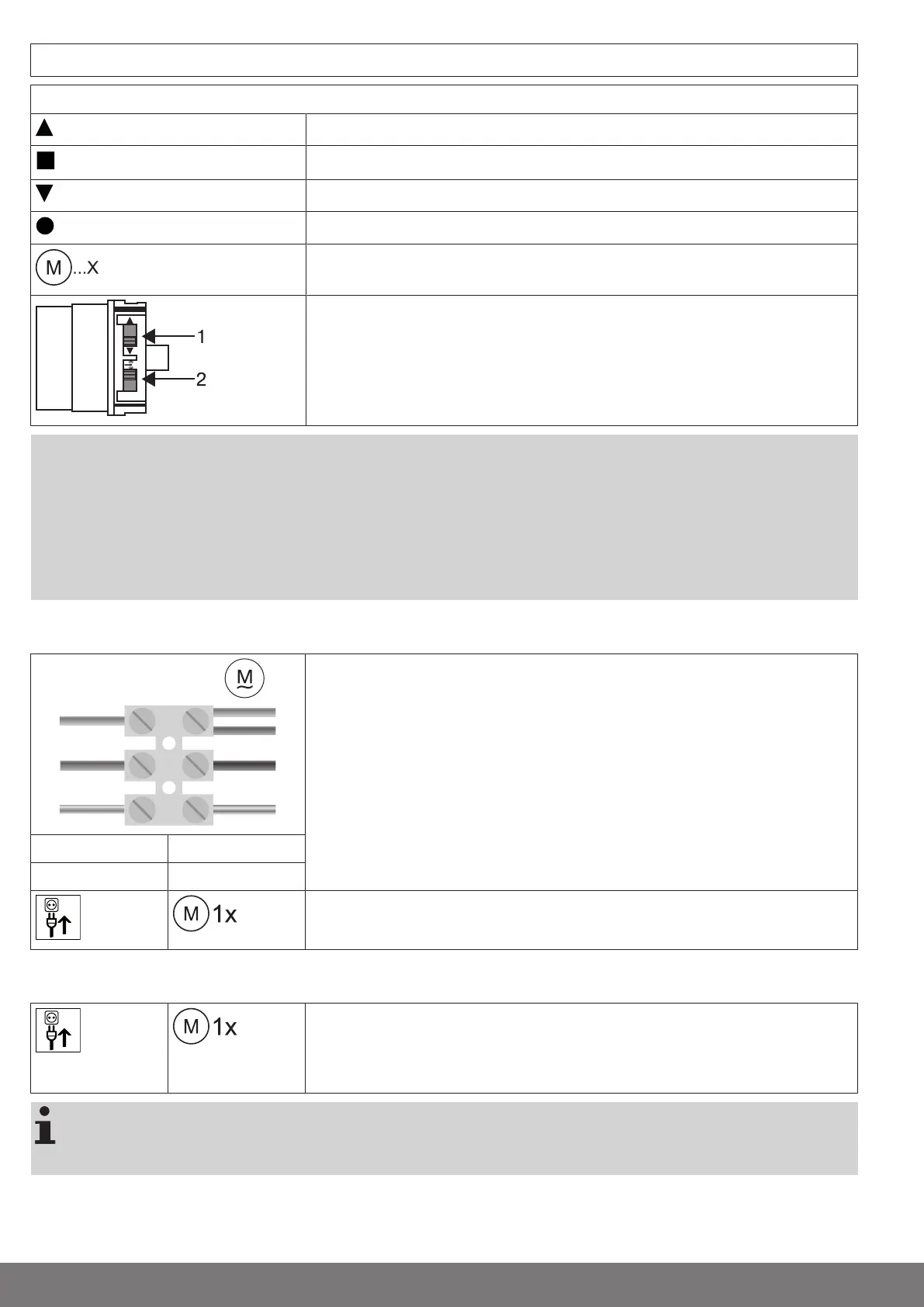

Commissioning with a Centronic transmitter
Explanation of symbols
UP button
STOP button
DOWN button
Programming button (on the transmitter)
Receiver confirms once or multiple times by "clicking" or "shifting"
1 = direction switch
2 = radio switch
Attention
The tubular drives are designed for short-time operation. An inbuilt thermal protection
switch prevents overheating of the tubular drive. During commissioning (long drop dis-
tance or long running time), the thermoswitch may trigger. The drive will switch off. After a
short cooling-down period, the system is ready for operation again.
The drive does not achieve its full duty cycle until it has cooled to ambient temperature.
Avoid a situation where the thermal protection switch cuts in repeatedly.
Connecting the tubular drive
N
1
2
1
2
4
3
4
230V AC / 50 Hz
L1
PE
Connect the tubular drive to the power supply.
1 = blue 3 = black
2 = brown 4 = green/ yellow
Switch on the power.
►
The tubular drive confirms.
Readying the tubular drive for programming by switching on the power
Switch on the power.
▻
The tubular drive confirms.
►
The tubular drive is ready to program for 3 minutes.
If several tubular drives are to be connected in parallel, you can deactivate the program-
ming mode on one tubular drive by switching the radio switch to the outside position after
turning the power on.
20-en
