Problem Remedy
Tubular drive does not run in the right direction. Tubular drive is overheated. The tubular drive is operational
again after a few minutes.
Tubular drive is faulty (does not run even after standing still for
a long period of time). Replace the tubular drive.
Clear and remove the obstruction and set the drive in the direc-
tion required.
Check the electrical connection.
Tubular drive only runs for approx. 1 second. Tubular drive is faulty. Replace the tubular drive.
Tubular drive switches off automatically before the first limit po-
sition is programmed.
Tubular drive has detected a torque increase.
Clear and remove the obstruction. Then move past this position
to the desired limit position.
When you attempt to set the limit positions using Auto-install,
this does not work.
Use a heavier end strip.
Close to the desired extended limit position and set a point.
Tubular drive encounters an obstruction and reverses. How-
ever, it does not double-check again whether the obstruction is
still there.
The installation is not yet complete. Travel to the limit position
"Stop" three times.

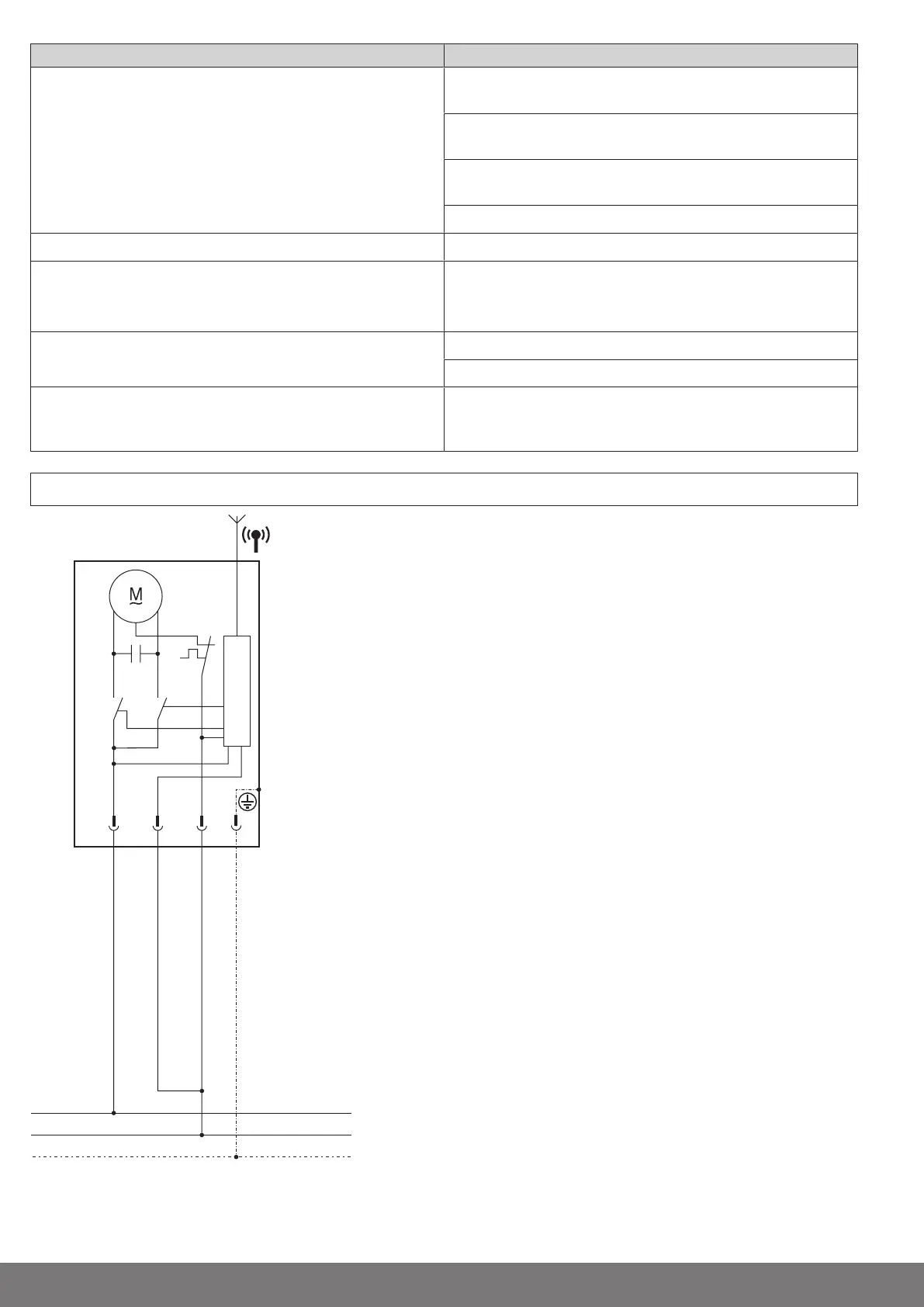

Sample wiring diagram
N
L
PE
Electronics
Black
Brown
Blue
Green/yellow
