Add Ethernet IP Module
Now you need to add your main communications module. Make sure you know the IP address of the card
that is setup as the EtherNet IP card, that address will have to be set in the module settings along with the
slot the card is in.

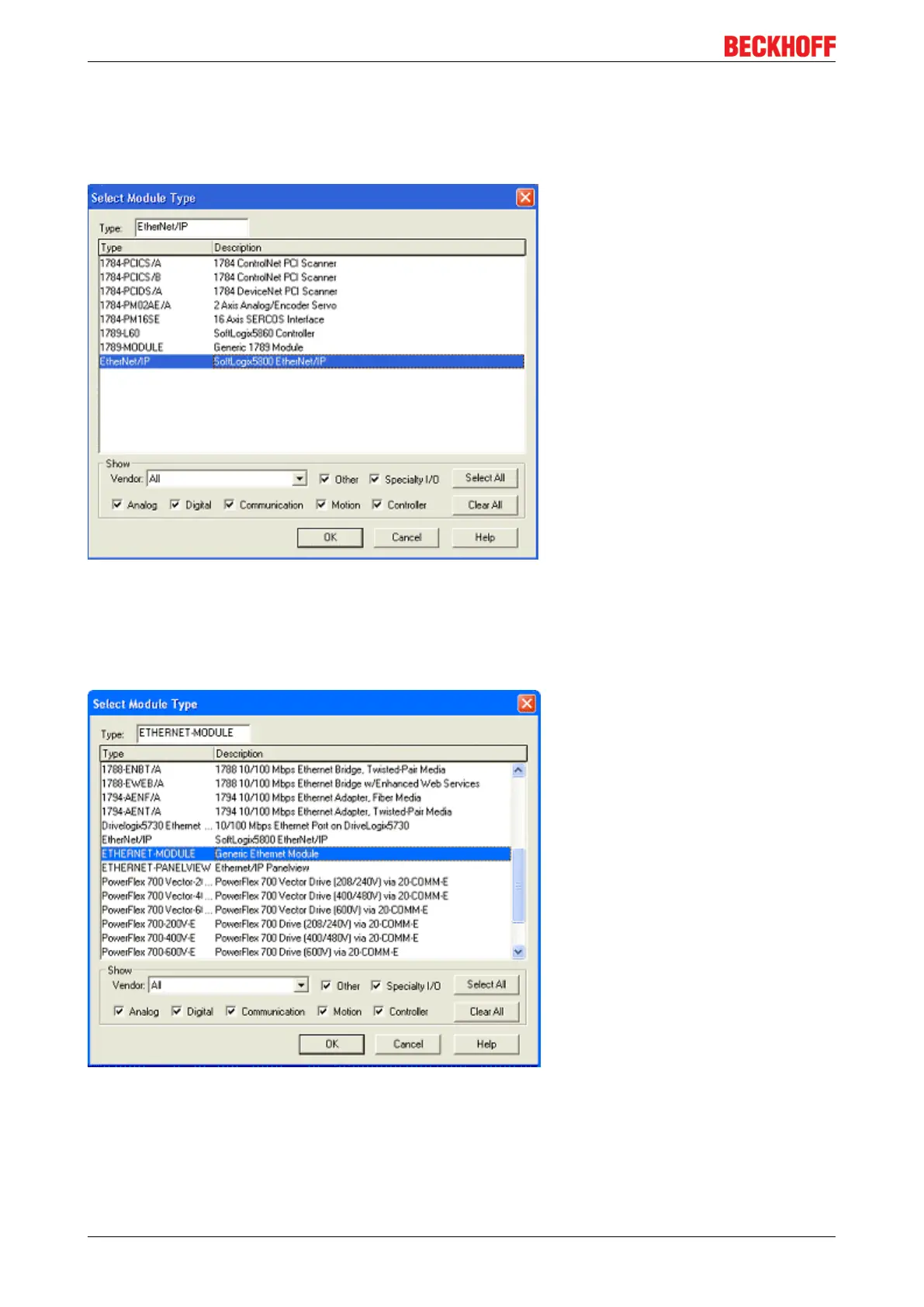

Fig.49: First Steps - Add Ethernet IP Module
Add Ethernet IP Box
When adding the BK9105 box you must select the "ETHERNET-MODULE" as it is a generic Ethernet/IP
device and we will configure it to work with our BK9105.
Fig.50: First Steps - Add Ethernet IP Box
Configuring the BK9105 in RSLogix
For the example here we used two KL1012 terminals and two KL2032. With these cards that gave us 2
words total of input and output data. On the properties dialog you will need to change some of the box
settings, please read below for recommendations on settings.
