Appendix
BK9055 and BK9105 61Version: 2.0.0

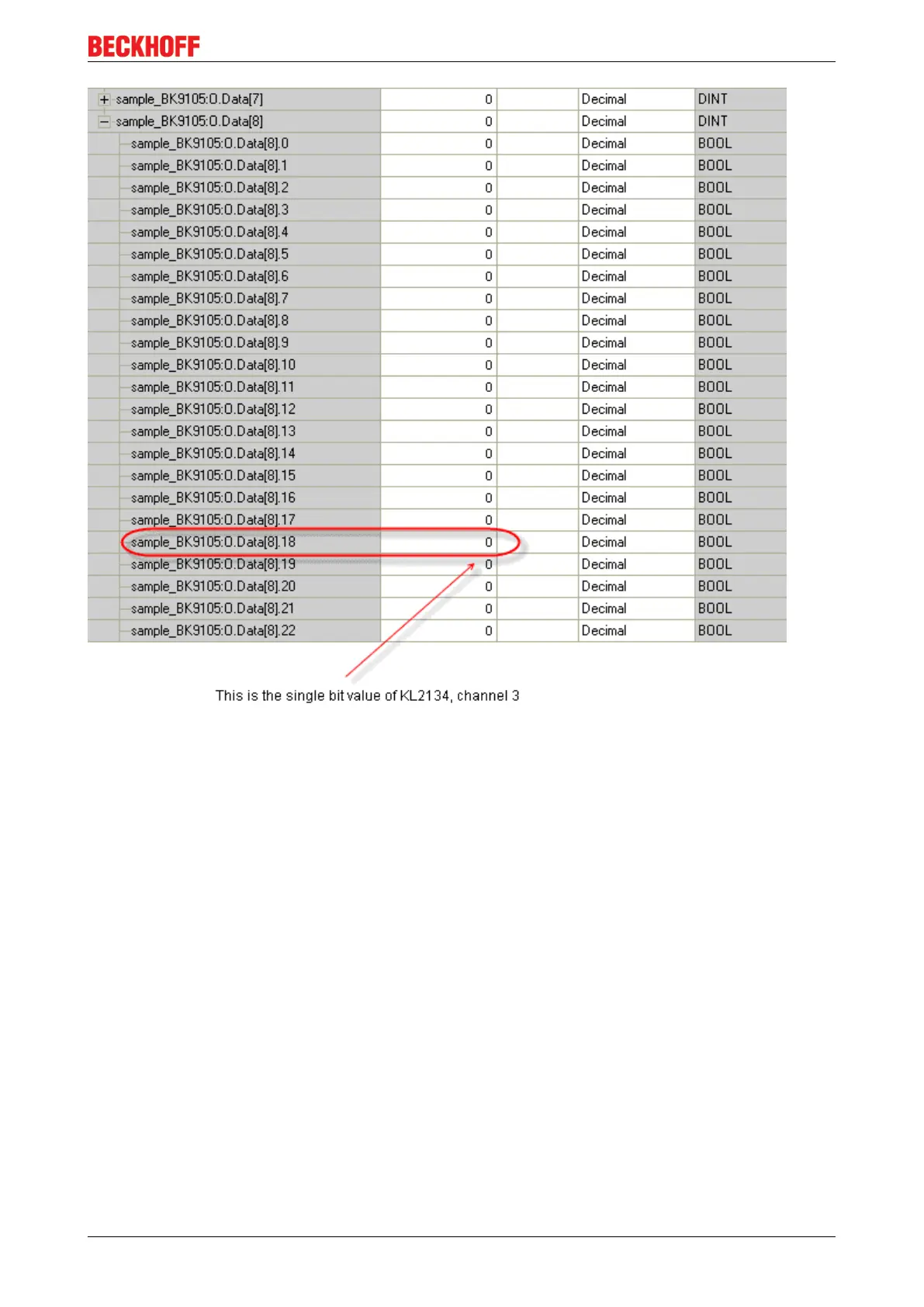

Fig.56: Single bit value of KL2134, channel 3
Open RSLogix 5000 and create a new PLC project
When creating a new project make sure to select the correct controller type and controller settings. This
example uses a SoftLogix Virtual Chasis, with the BK9105 (Beckhoff EthernetIP Bus coupler).
