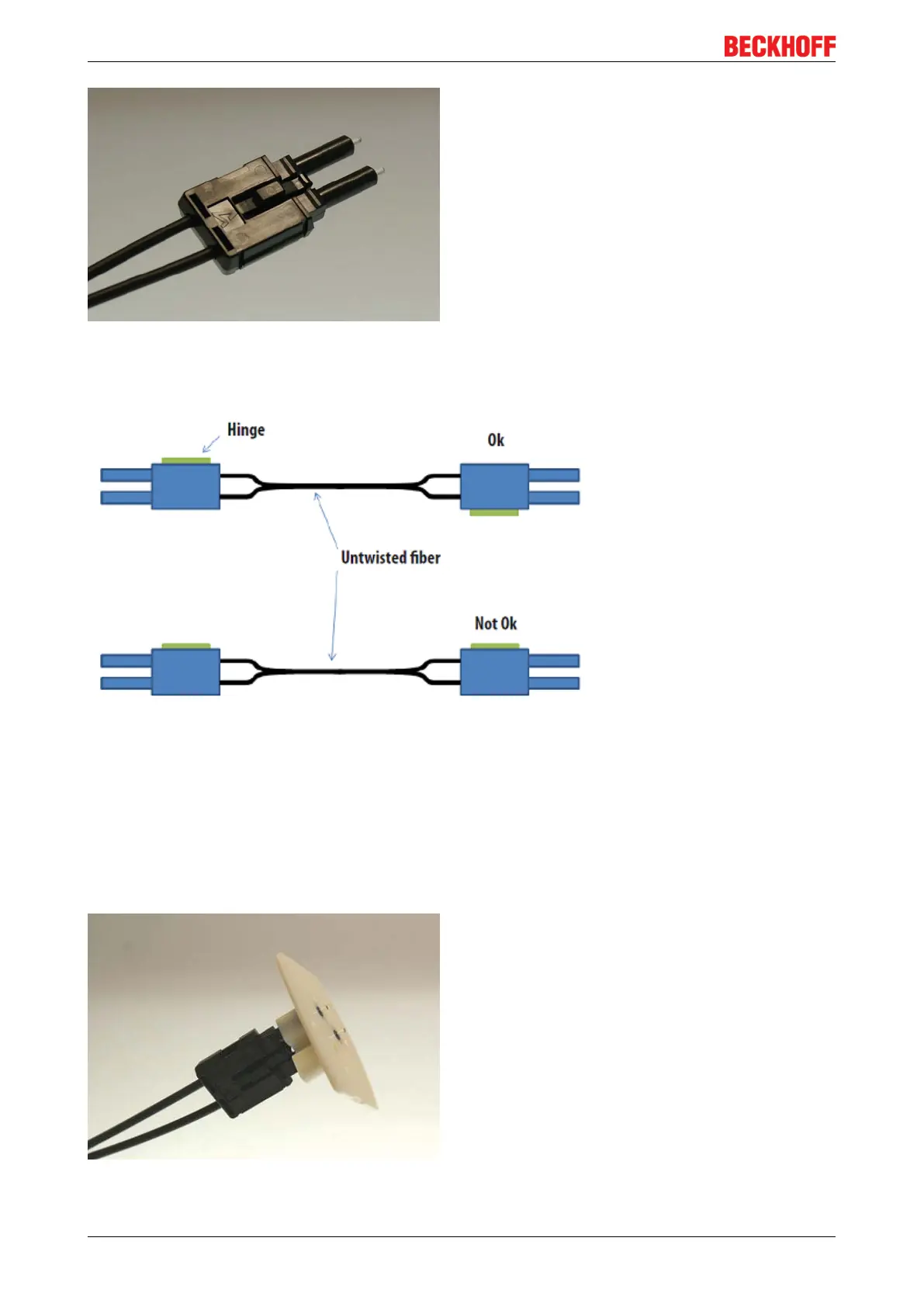

Fig.52: Closed connector
When inserting the wires into the connector ensure the optical channels are crossed (Tx1 → Rx2; Tx2 →
Rx1). The 'nose' at the connector hinge can be used as a guide.
Fig.53: Correctly connected optical channels
3. Grinding and polishing
Any fibers protruding more than 1.5mm from the connector should be shortened with a cutter knife or a pair
of scissors.
Now push the connector fully into the sanding gauge, so that the ends to be polished protrude from the lower
side. The sanding gauge is suitable for polishing one or two simplex connectors or a duplex connector.
Fig.54: Sanding gauge with protruding fiber ends
