Appendix

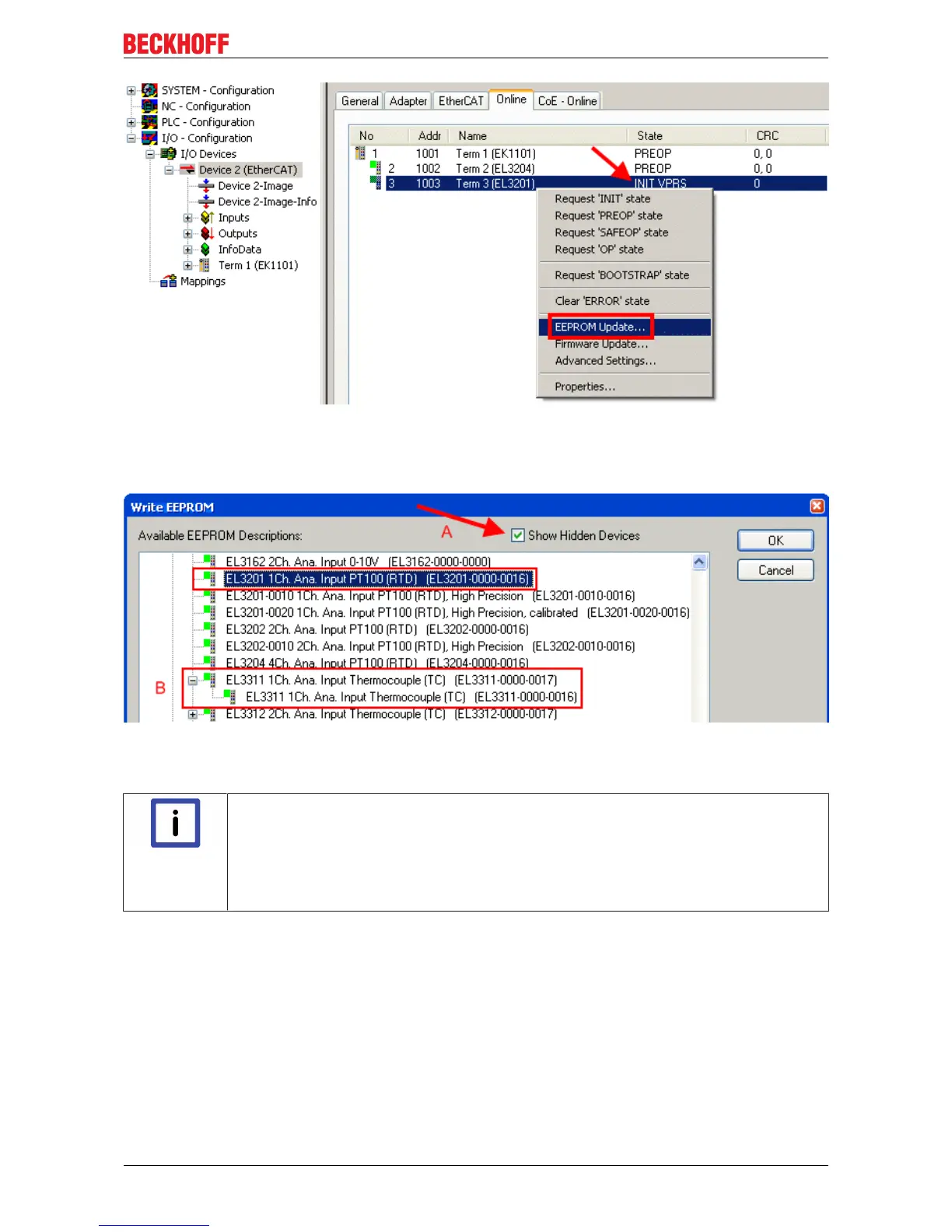

Fig.180: EEPROM Update
Select the new ESI description in the following dialog, see Fig. “Selecting the new ESI”.
The ShowHiddenDevices checkbox also shows older, usually hidden slave versions.
Fig.181: Selecting the new ESI
A progress bar in the System Manager shows the progress. Data are first written, then verified.
Note
The change only takes effect after a restart.
Most EtherCAT devices read a modified ESI description immediately or after startup from
the INIT. Some communication settings such as distributed clocks are only read during
power-on.
The EtherCAT slave therefore has to be switched off briefly in order for the change to take
effect.
Determining the firmware version
Determining the version on laser inscription
Beckhoff EtherCAT slaves feature serial numbers applied by laser. The serial number has the following
structure: KK YY FF HH
KK - week of production (CW, calendar week)
YY - year of production
FF - firmware version
HH - hardware version
Example with ser. no.: 12 10 03 02:
EL72x1-0010 195Version: 2.0
