Commissioning

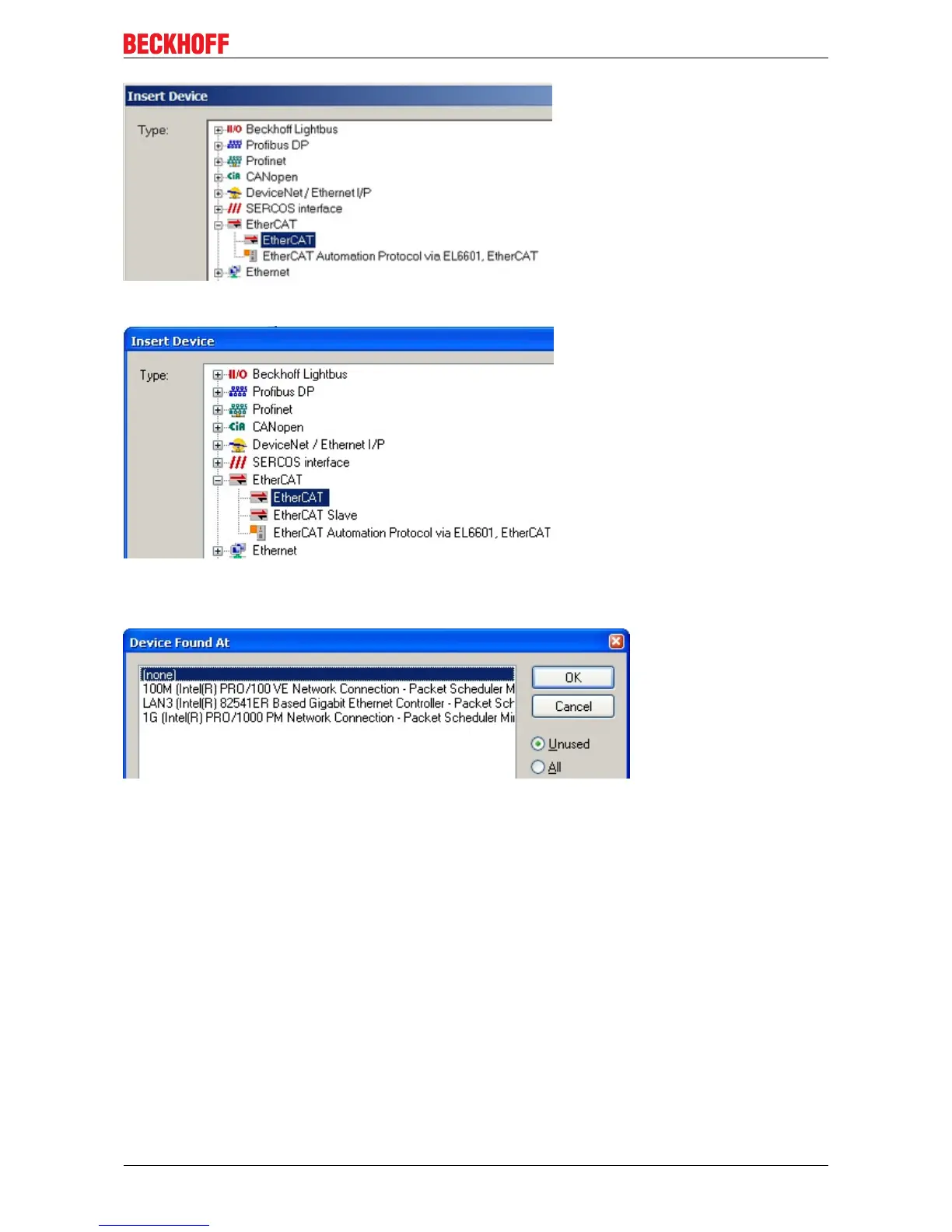

Fig.52: Selecting the EtherCAT connection (TwinCAT 2.11)
Fig.53: Selecting the EtherCAT connection (TwinCAT 2.11 R2)
Then assign a real Ethernet port to this virtual device in the runtime system.
Fig.54: Selecting the Ethernet port
This query may appear automatically when the EtherCAT device is created, or the assignment can be set/
modified later in the properties dialog (see Fig. “EtherCAT properties dialog”).
EL72x1-0010 53Version: 2.0
