Commissioning

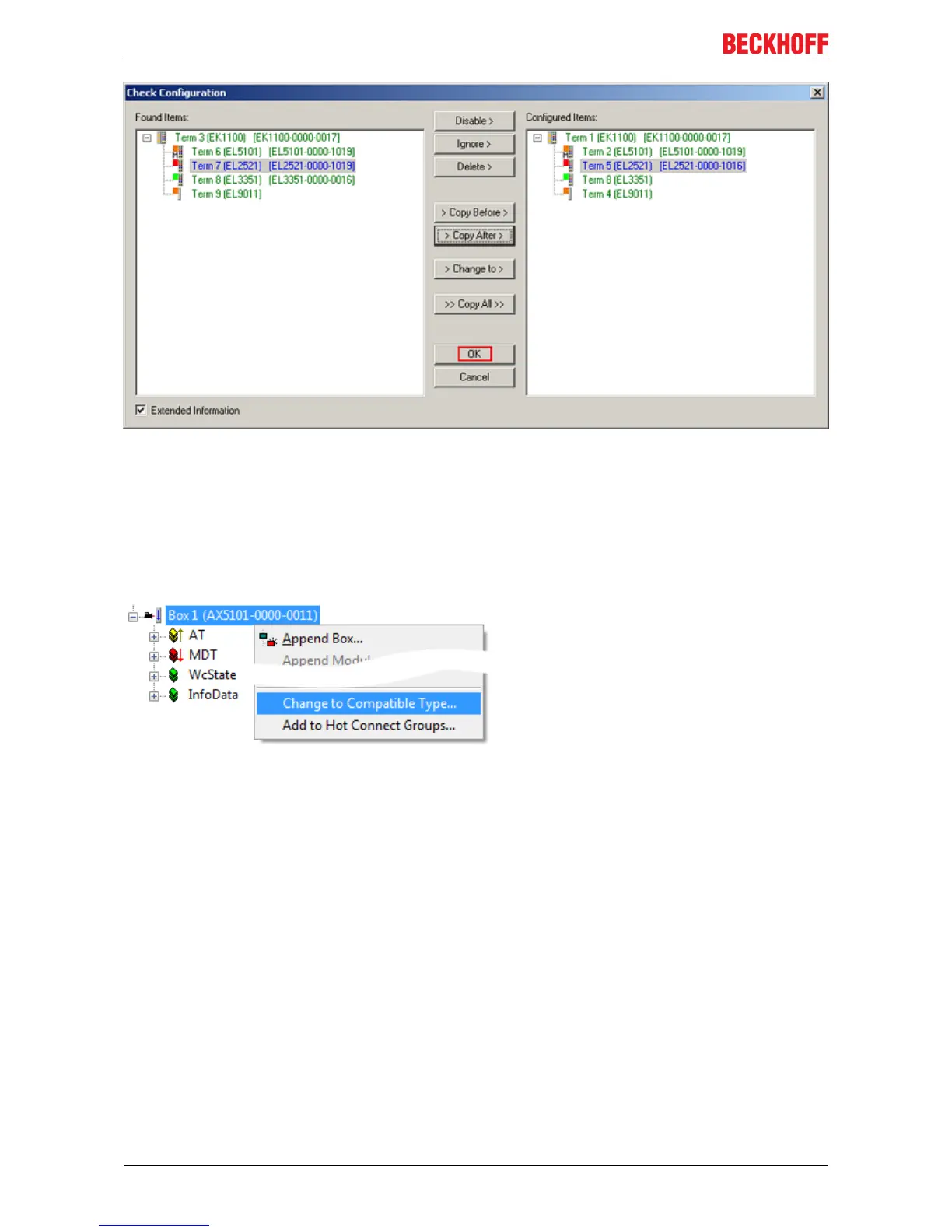

Fig.82: Correction dialog with modifications
Once all modifications have been saved or accepted, click “OK” to transfer them to the real *.tsm
configuration.
Change to compatible device
The TwinCAT System Manager offers a function for the exchange of a device whilst retaining the links in the
task: Change to compatible device.
Fig.83: TwinCAT 2 Dialog ChangeToCompatibleDevice
This function is preferably to be used on AX5000 devices. If called, the System Manager suggests the
devices that it finds in the associated sub-folder; in the case of the AX5000, for example, in \TwiNCAT\IO
\EtherCAT\Beckhoff AX5xxx.
Change to Alternative Type
The TwinCAT System Manager offers a function for the exchange of a device: Change to Alternative Type
EL72x1-001066 Version: 2.0
