8.3.3 SAWTOOTH WAVEFORM SWITCH
• This switch controls the SAWTOOTH waveform output for OSC 1.
The SAWTOOTH waveform has a rasping, buzzy and hard sound. Classic
synthesizer basses, strings, brass and pad sounds are often created using
sawtooth waveforms. The large range of harmonic content makes the
SAWTOOTH waveform a good candidate to start with when creating a
program that you want to sound "fat."
The SAWTOOTH waveform contains a fundamental sine wave and all of its
integral harmonic sine waves at a xed ratio.

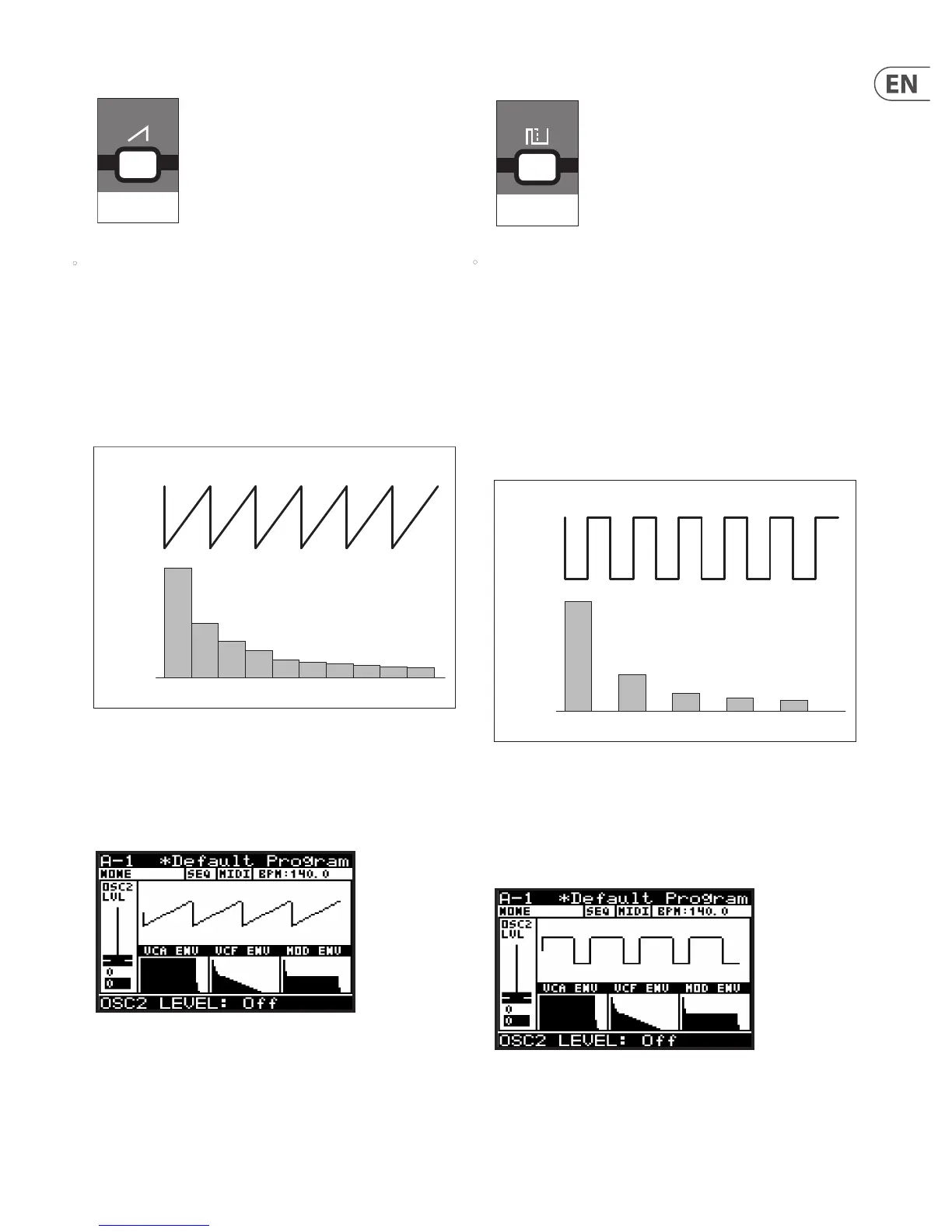

The characteristics of the SAWTOOTH waveform are shown below:
The SAWTOOTH waveform output can be On/O. The default program
setting is On.
Note: The OSC 1 SAWTOOTH waveform output can be used independently or
in combination with the OSC 1 SQUARE waveform output.
There is also a visualization of the SAWTOOTH waveform as shown below:
ON=SAWTOOTH
OSC (SAW)
HARMONIC
CONTENT
f 2nd 3rd 4th 5th 6th 7th 8th 9th 10th
SAWTOOTH WAVE
8.3.4 SQUARE WAVEFORM SWITCH
• This switch controls the SQUARE waveform output for OSC 1.
The SQUARE waveform has a hollow sound, which does not sound as rich
as a sawtooth waveform due to the lack of even harmonics. Traditionally it
is often used to emulate a clarinet because of its similarity to the output of
the instrument. However in modern electronic music it is commonly used to
thin, nasal or cavernous sounds.
The SQUARE waveform contains a fundamental sine wave and its odd
numbered harmonics at a xed ratio. The level of each harmonic is the same
as the sawtooth wave, i.e. the content of nth harmonic is 1/n, except there
are no even-numbered harmonics present.
The characteristics of the SQUARE waveform are shown below:
The SQUARE waveform output can be On/O. The default program setting
is On.
Note: The OSC 1 SQUARE waveform output can be used independently or in
combination with the OSC 1 SAWTOOTH waveform output.
There is also a visualization of the SQUARE waveform as shown below:
ON=SQUARE
HARMONIC
CONTENT
f 3rd 5th 7th 9th
SQUARE WAVE
OSC (SQR)
