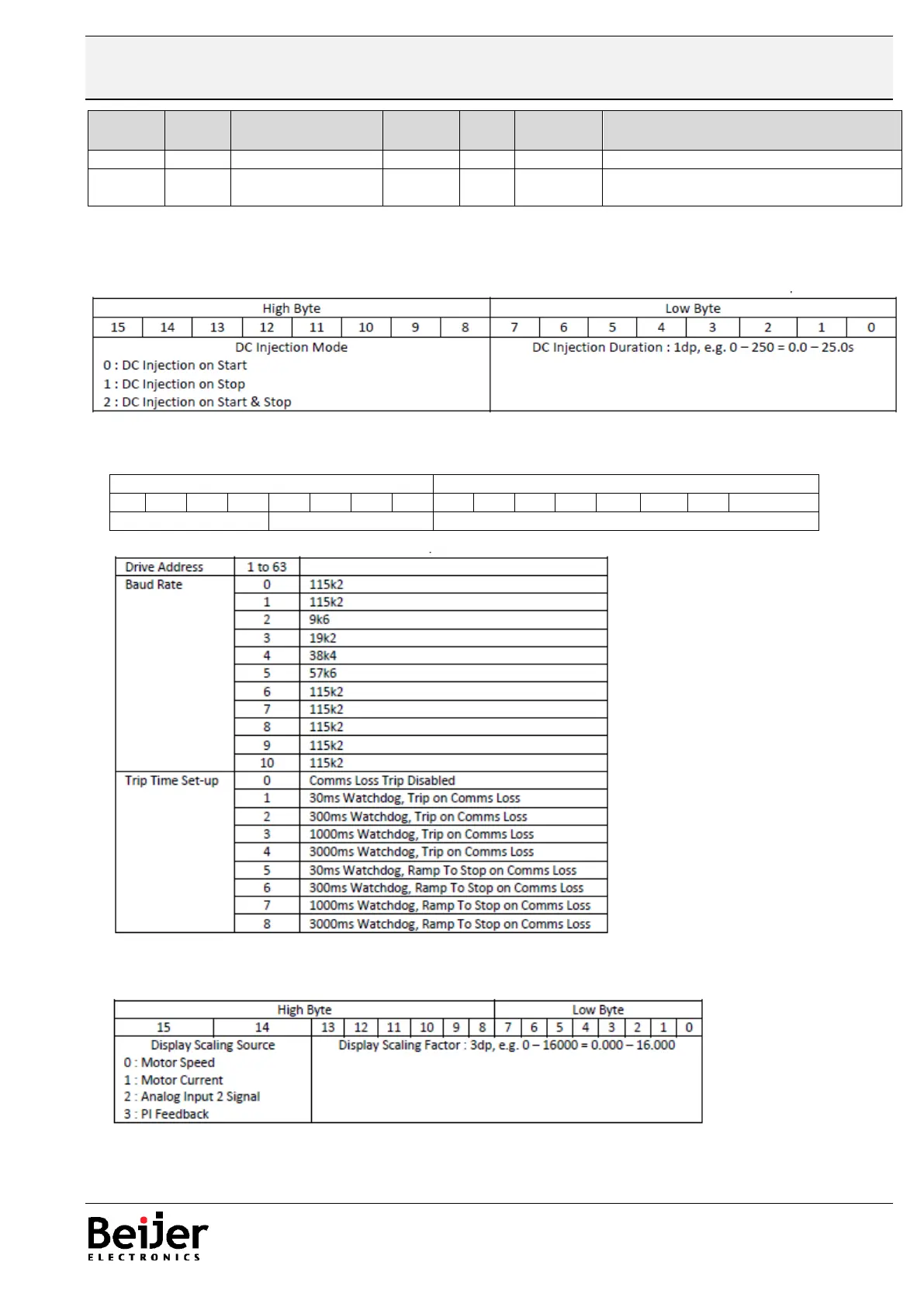

BeiJer X2 User Manual

X2 Control communication with BFI-E3 by Modbus TCP
SER0020_V1.0.0 2020-11
28 (31)
Normal.dotm
, 2020-07-01
Register
Para-
meter
Description
Format
Min
Max
Data format
187
59
DC Injection Current
U16
0
1000
1dp, e.g. 100 = 10.0%
188
60
Thermal Overload
Retention
U16
0
1
Additional Information
Register 160 which is Parameter P-32: DC Injection Configuration
The parameter value is stored as a combined 16-bit word which is constructed as follows:
Register 164 which is Parameter P-36: Communications Configuration
This Register entry contains multiple data entries, as follows:-
High Byte
Low Byte
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
Trip Configuration
Baud Rate
Drive Address
Data values can be interpreted as follows:
Register 168 which is Parameter P-36: Display Scaling
The parameter value is stored as a combined 16-bit word which is constructed as follow:
