2.3. Product overview and description
The DRYPOINT
®
M intelligence is a drying system that guarantees a constant degree of drying even under uctuating
operating conditions. The sensor system integrated into the control unit (2) responds to changes in the operating pressure,
the pressure dew point at the inlet and uctuations in the compressed air demand. The display and control elements of the
unit are integrated into the control panel (1). The control panel shows the current operating mode as well as the set degree
of drying. A change of the operating mode or the degree of drying is possible at any time during continuous operation.
1
2
3
4
8
5
7
9
6
11
12
10
!
20.. 20.. 20..
Year
Month
NEXT ELEMENT
CHANGE
DRYPOINT
®
M
eco control

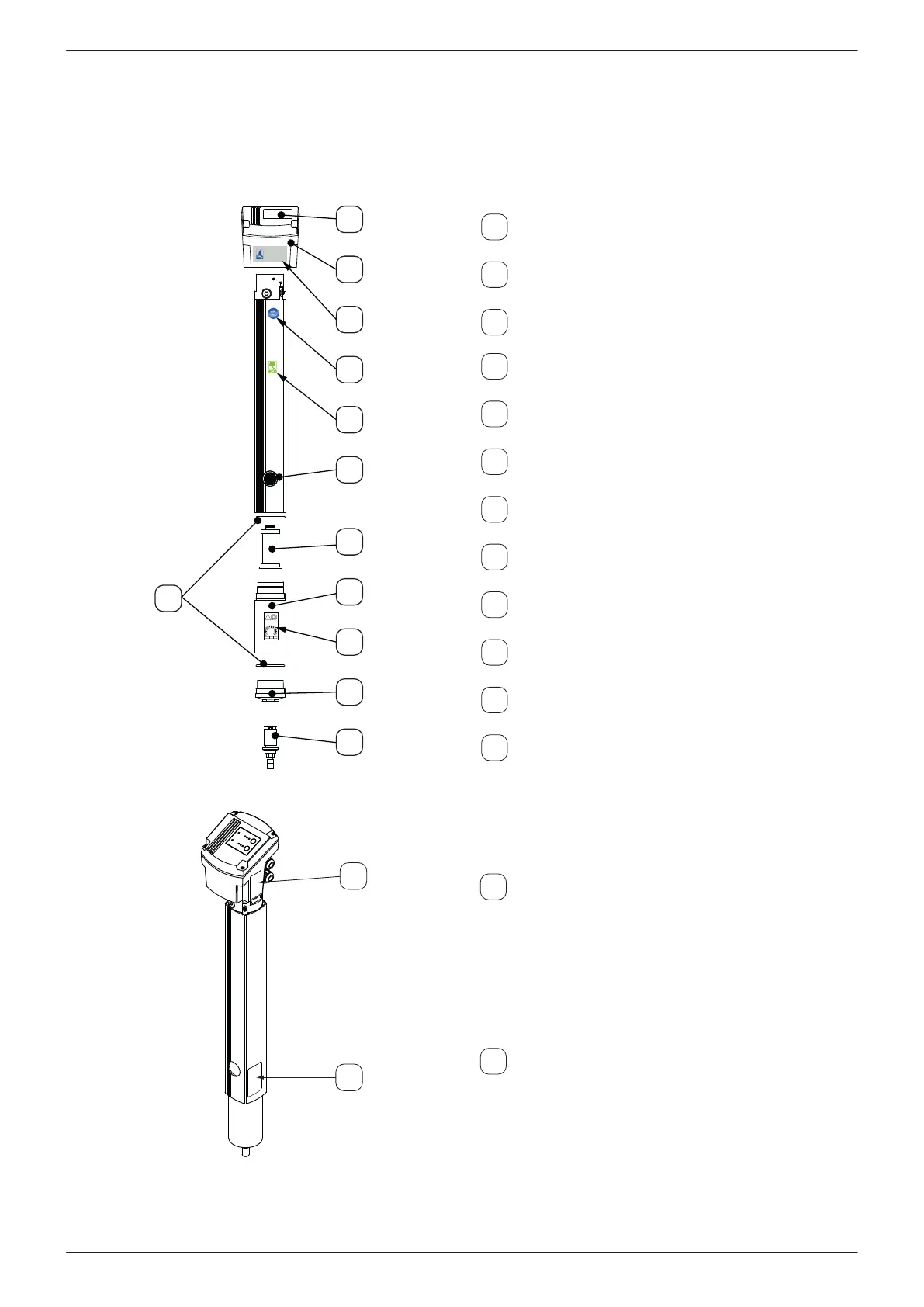

1
User interface
2
Control unit/housing head
3
Label: DRYPOINT
®
M intelligence
4
Label: BEKO quality
5
Label: eco seal
6
Purge air outlet
7
Nanolter element
8
O-rings (housing)
9
Housing extension
10
Label: Next element change
11
Housing base
12
Float drain
13
14
13
Type plate of control unit
14
Name plate of drying system
