Beko DRYPOINT M intelligence - Operating Modes

Installation and operation instructions US-EN
12 DRYPOINT
®
M intelligence
The control software decides in cycles if and for how long the complete purge air volume is to be supplied in order to
achieve and stabilize the required degree of drying. This process is implemented by means of a cycle-operated solenoid
valve. The time for the two subprocesses described below therefore varies in each cycle, in order to keep the degree of
drying within the specied tolerance range.

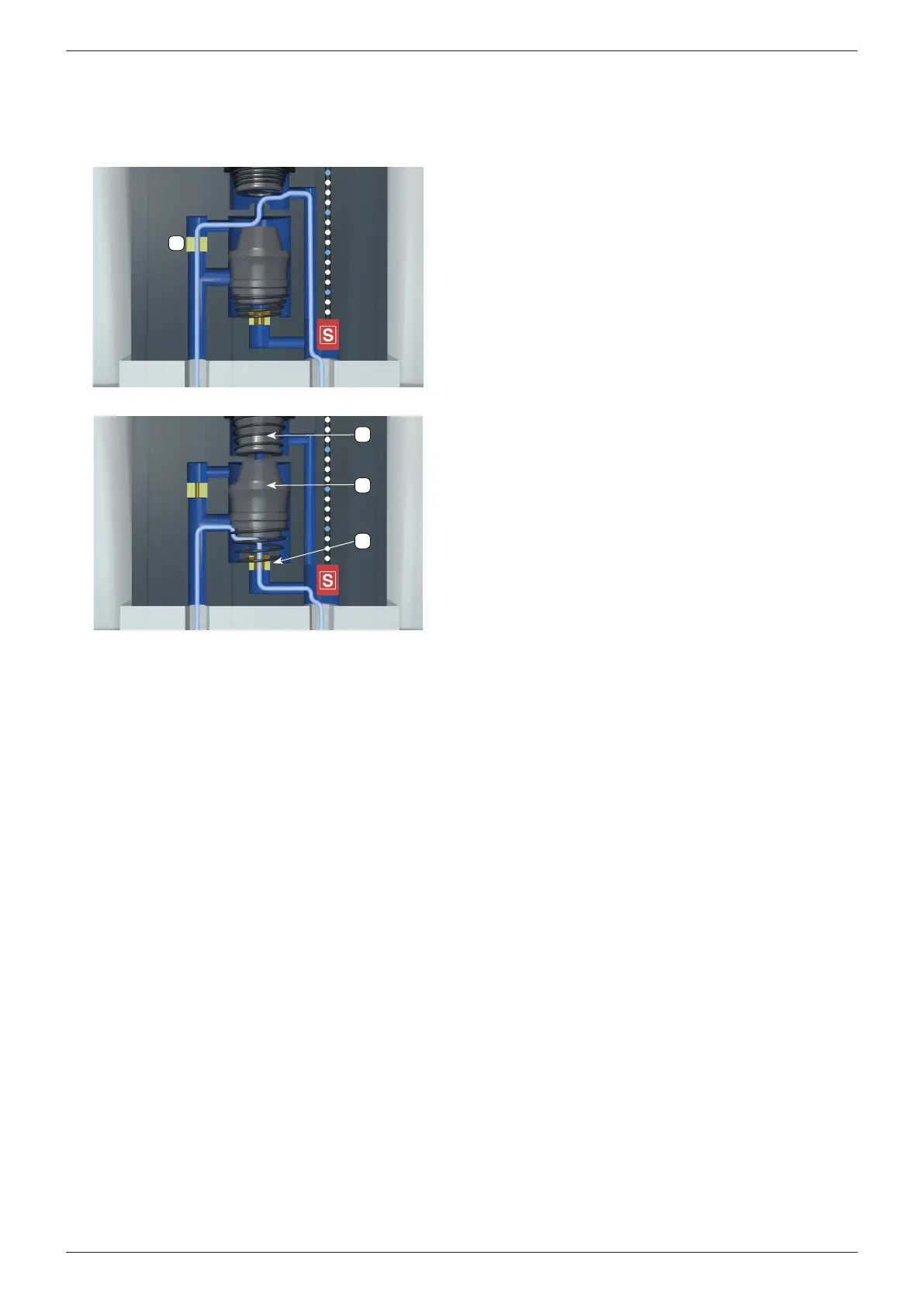

Function: Measuring gas ow
A very small partial ow of the dried compressed air
(measuring gas) ows continuously through the internal
channel along the temperature and humidity sensor (S) to the
measuring gas nozzle (1). This sensor continuously measures
the moisture content of the compressed air in the measuring
gas and sends the result to the control.
Function: Purge air ows
The control continuously compares the measured degree of
drying of the measuring gas with the setpoint value for the
DRYPOINT
®
M intelligence. Tthe valve unit is actuated in
case of deviations: The solenoid core (2) and the piston (3)
close the valve seat so that the compressed air ows through
the purge air nozzle (4) to the membrane dryer. The drying
process commences without delay.
2.3.2. Operating mode
Constant mode (-14 °F; factory-set) - the pressure dew point at the outlet is kept constant:
In this operating mode, the DRYPOINT
®
M intelligence keeps the set outlet pressure dew point constant between +50 and
-15 °F. If the set pressure dew point is less than 10 °F below the compressed air temperature, the setpoint pressure dew
point is automatically reduced by one step (to max. -15 °F). As soon as the dierence is again 10 °F, the system returns to
normal operation.
Dynamic mode - the dierence between the compressed air temperature and the outlet pressure dew point is kept
constant:
In this operating mode, the pressure dew point is reduced relative to the compressed air temperature by a specied
dierence between 20 and 100 °F. If the compressed air temperature changes, the pressure dew point follows automatically.
For technical reasons, the compressed air temperature increase is limited to 4 °F/h in order to eliminate insignicant short-
term changes in the ambient conditions on site.
1
3
2
4
