Beko DRYPOINT M intelligence - Dimensions

US-EN Installation and operation instructions
DRYPOINT
®
M intelligence 15

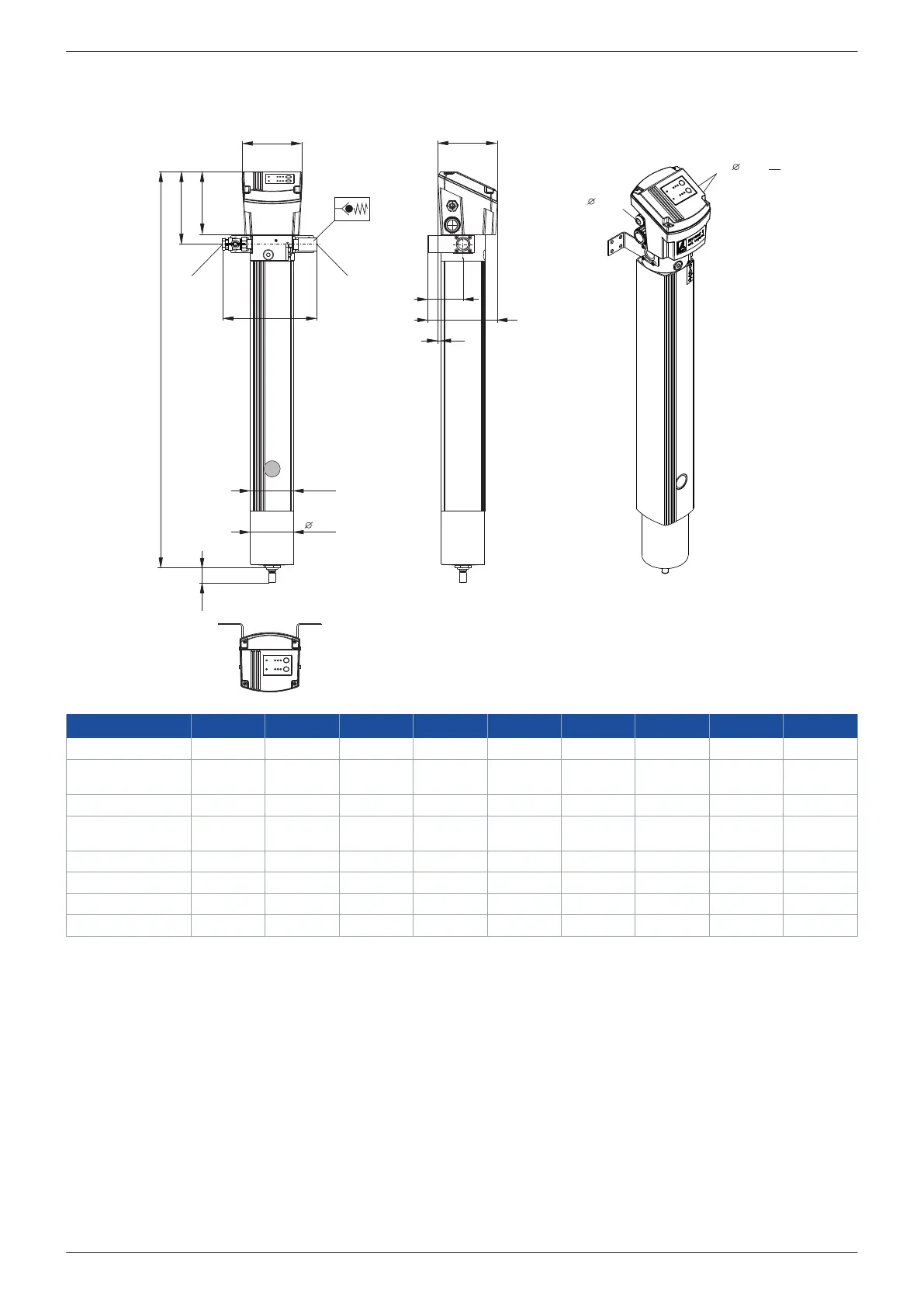

2.7. Dimensions
A
B
4,33´ 4,33´
4,56´
1xPG 5...10
2xPG 5...10
C
F
E
D
D1
1,1´
NPT NPT
H
Dimensions MDi 12 MDi 17 MDi 25 MDi 35 MDi 45 MDi 55 MDi 65 MDi 100 MDi 130
A (inch) 24.60 26.96 27.28 29.25 32.00 34.76 35.23 40.74 46.65
B (inch)
approx. 7.67 approx. 7.67 approx. 8.46 approx. 8.46 approx. 8.46 approx. 8.46
approx.
11.81
approx.
11.81
approx.
11.81
C (inch) 5.23 5.23 5.23 5.23 5.23 5.23 5.62 5.62 5.62
D / diameter
D1 (inch)
2.36/2.36 2.36/2.36 3.14/3.14 3.14/3.14 3.14/3.14 3.14/3.14 4.72/4.72 4.72/4.72 4.72/4.72
E (inch) 2.55 2.55 2.55 2.55 2.55 2.55 3.07 3.07 3.07
F (inch) 5.23 5.23 5.23 5.23 5.23 5.23 5.74 5.74 5.74
NPT 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1" 1" 1"
H (inch) 0.43 0.43 0.07 0.07 0.07 0.07 - - -
