Beko DRYPOINT M intelligence - Opening the Control Unit

US-EN Installation and operation instructions
DRYPOINT
®
M intelligence 23
4.3. Opening the control unit

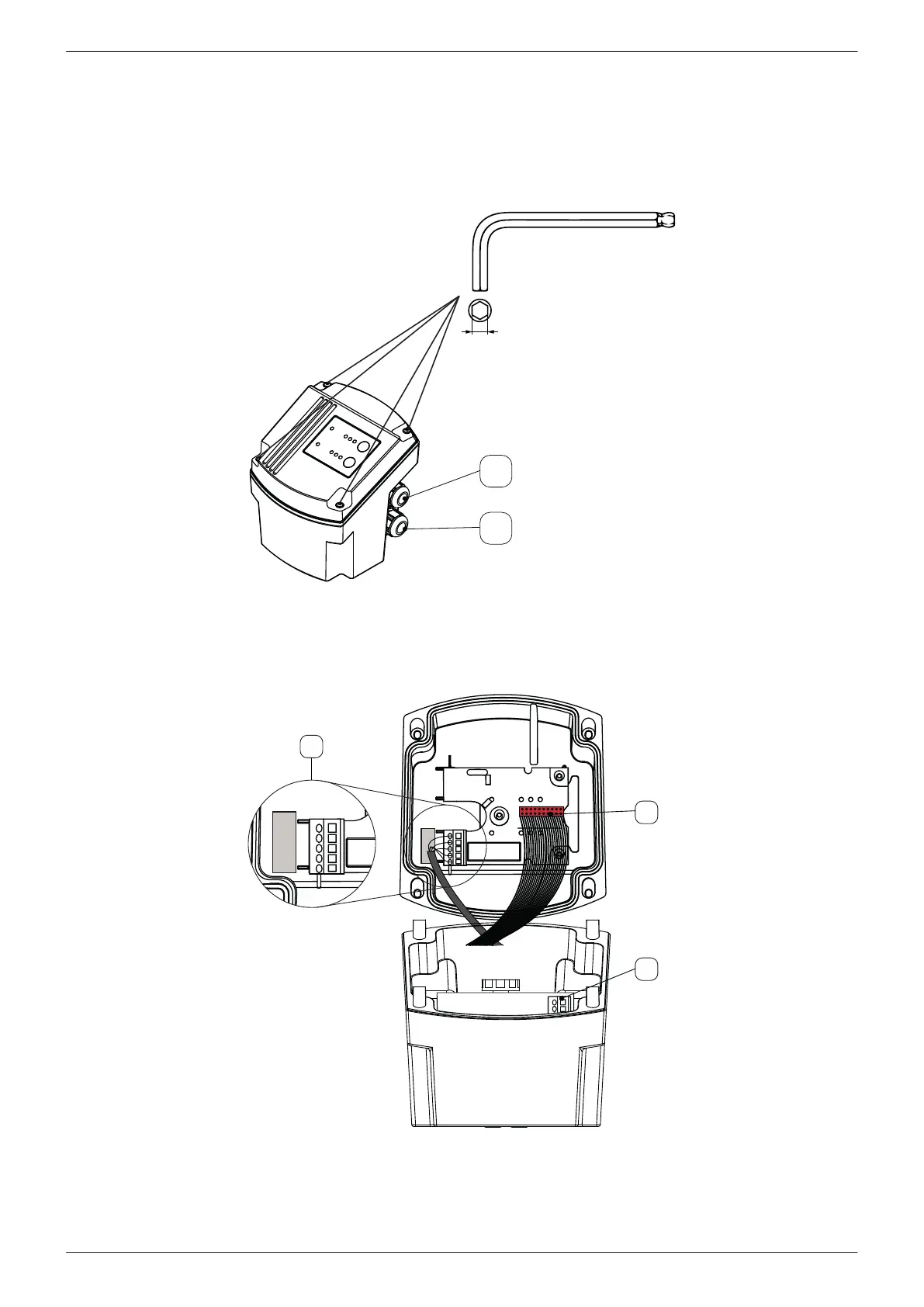

To establish an alarm contact or a connection to the 4 ... 20 mA interface, you must open the housing of the control unit. To
do this, loosen the 4 housing screws, using a 0.08" Allen key. Feed the cables through the armored conduit tting (4) or (5).
4
5
0.08‘‘ (2 mm)
Then lift the cover from the control unit. Ensure that the ribbon cable (3) is not squeezed or torn.
X4.5
X4.4
X4.3
X4.2
X4.1
3
2
1
X4.5
X4.4
X4.3
X4.2
X4.1
