Installation BRS20/22/30/32/40/42/50/52
Release
12
01/2022
31

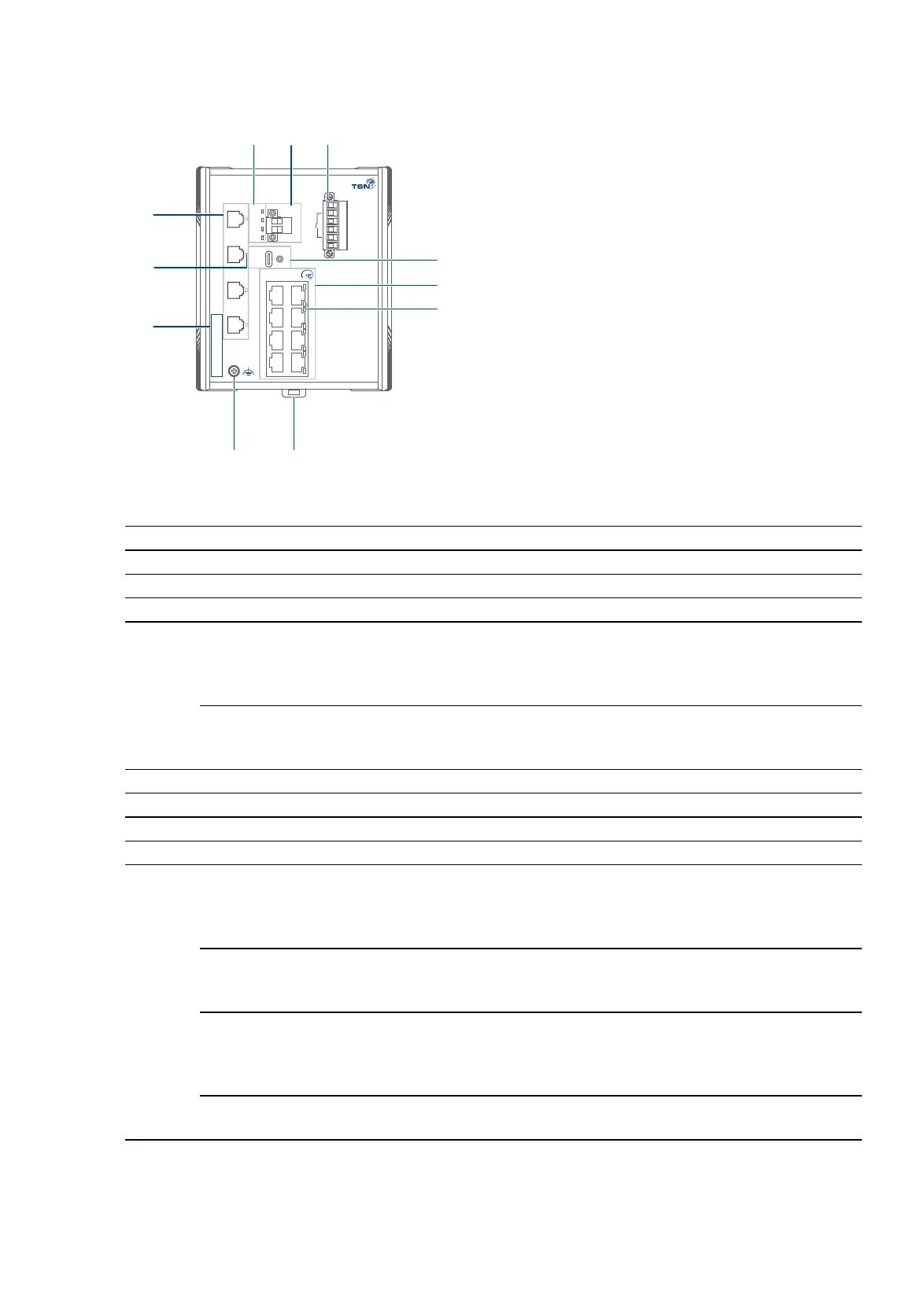

Example of a device variant with 8 ... 12 ports with PoE
1 LED display elements for device status
2 2-pin terminal block with screw lock for the digital input
3 6-pin terminal block with screw lock for redundant power supply and signal contact
4 USB-C interface
5 depending on the device variants
BRS22/32
RJ45 socket for 10/100 Mbit/s Twisted pair connections
RJ45 socket with PoE support
BRS42/52
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
RJ45 socket with PoE support
6, 10 LED display elements for port status
7 Rail lock slide for DIN rail mounting
8 Grounding screw
9 Label area for IP address
11 depending on the device variants
BRS22
SFP slot for 100 Mbit/s F/O connections
Not present
BRS32
SFP slot for 100/1000 Mbit/s fiber optic connections
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
BRS42
SFP slot for 100/1000 Mbit/s fiber optic connections
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
Not present
BRS52
SFP slot for 100/1000/2500 Mbit/s fiber optic connections
ACA
PoE
Status
Power
IP-ADDRESS
5
7
6
8
9
10
11
12
USB
z
P
0V 0V+24V(P2) +24V(P1)
RELAY
z
Input
+
-
x y
1
2
3
4
123
5
6
7
8
9
10
11
4
