Installation BRS20/22/30/32/40/42/50/52
Release 12 01/2022
7.9 Dimension drawings
7.9.1 Device variants with casing with characteristic
value C (plastic casing)

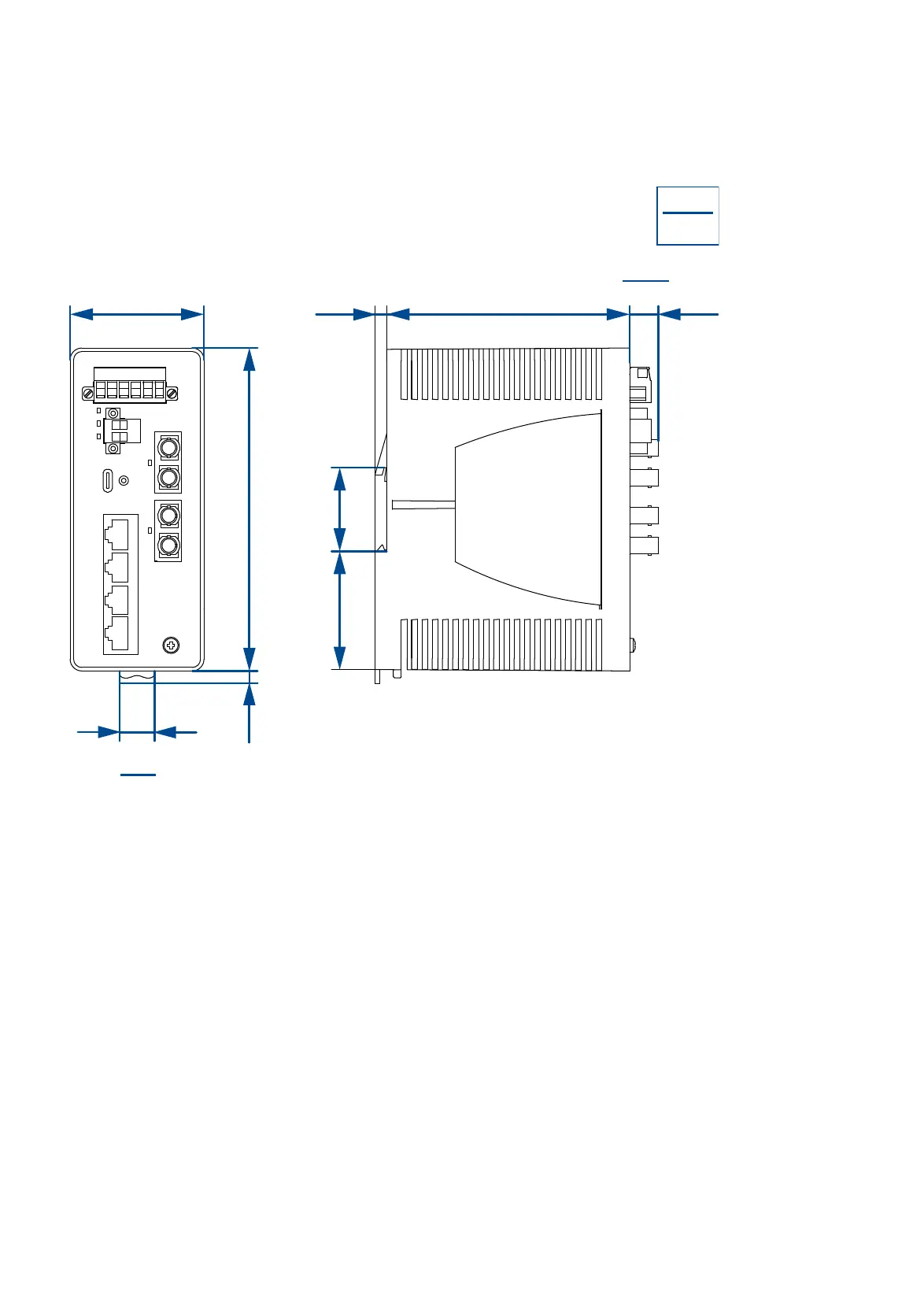

Figure 24: Device variants in narrow plastic casing
57
2.24
137,5
5,3
50,4
35,6
103,5
12,3
14,9
0.59
5.410.21
4.07
5
0.2
0.48
1.4
1.97
mm
inch
