2.4.3 Digital input (optional)

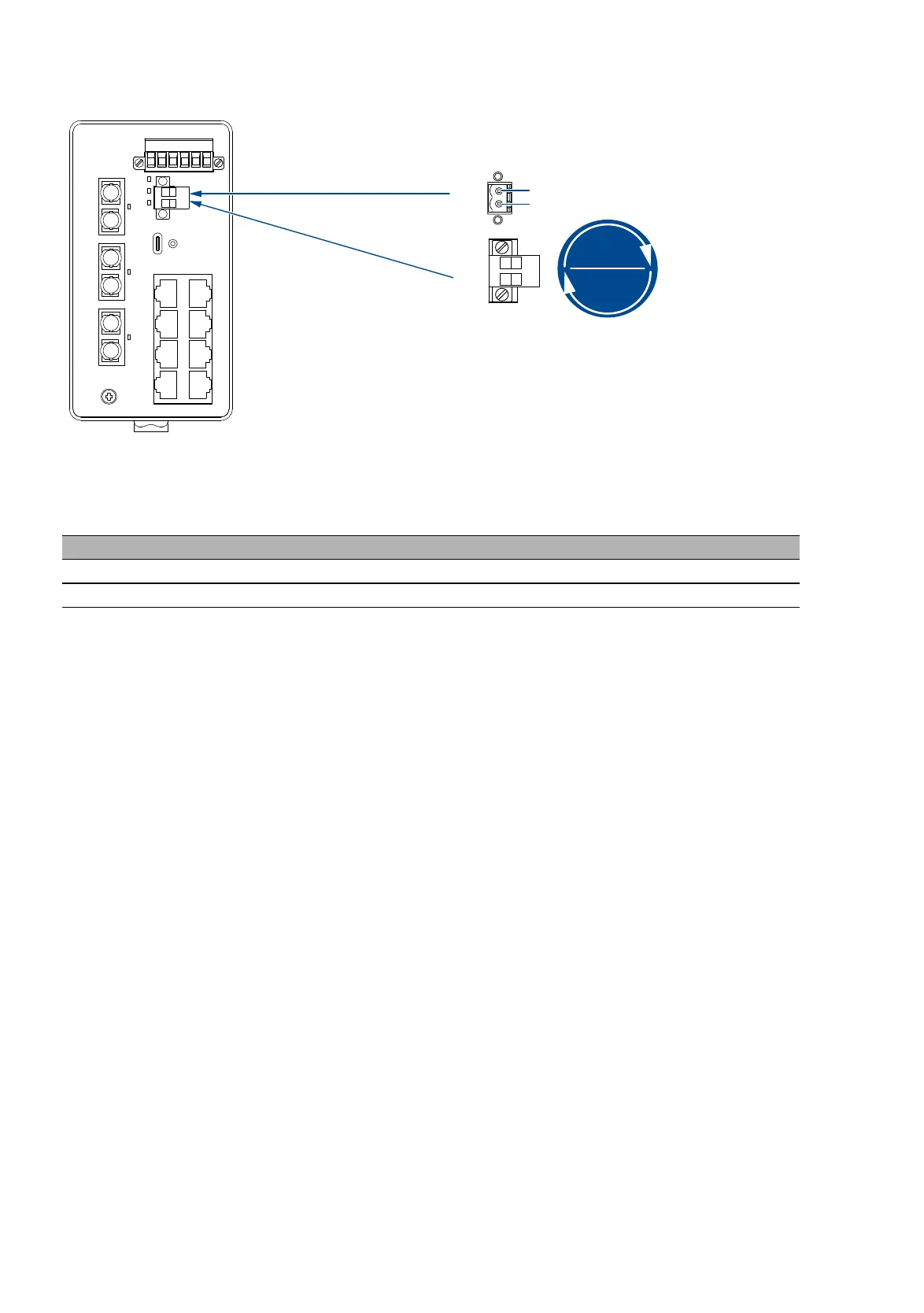

Figure 19: (1) Connection on the device, (2) terminal block mounted on the device
(front view), tightening torque.
Perform the following work steps:
 Remove the terminal connector from the device.
 Connect the wires according to the pin assignment on the device with the
clamps.
 Fasten the wires in the terminal block by tightening the terminal screws.
 Mount the terminal block on the device using screws.
Pin Signal, terminal Function
1 DI (+) Signal input
2DI (−) Reference potential
Table 11: Digital input: pin assignment
Input
+
-
4.4 lb-in
0.5 Nm
