Installation BRS20/22/30/32/40/42/50/52
Release 12 01/2022
37
1.5.4 100 Mbit/s F/O port
This port is a DST/DSC socket or an SFP slot.
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
 100 Mbit/s, full duplex
Delivery state:
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
1.5.5 100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to standard IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-
LX.
This port supports:
 100 Mbit/s, full duplex
 1000 Mbit/s full duplex
Delivery state:
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
1.5.6 100/1000/2500 Mbit/s F/O port
This port is an SFP slot.
The 100 Mbit/s F/O port allows you to connect network components
according to the standard IEEE 802.3 100BASE-FX.
The port allows you to connect network components according to standard
IEEE 802.3 1000BASE-SX/1000BASE-LX.

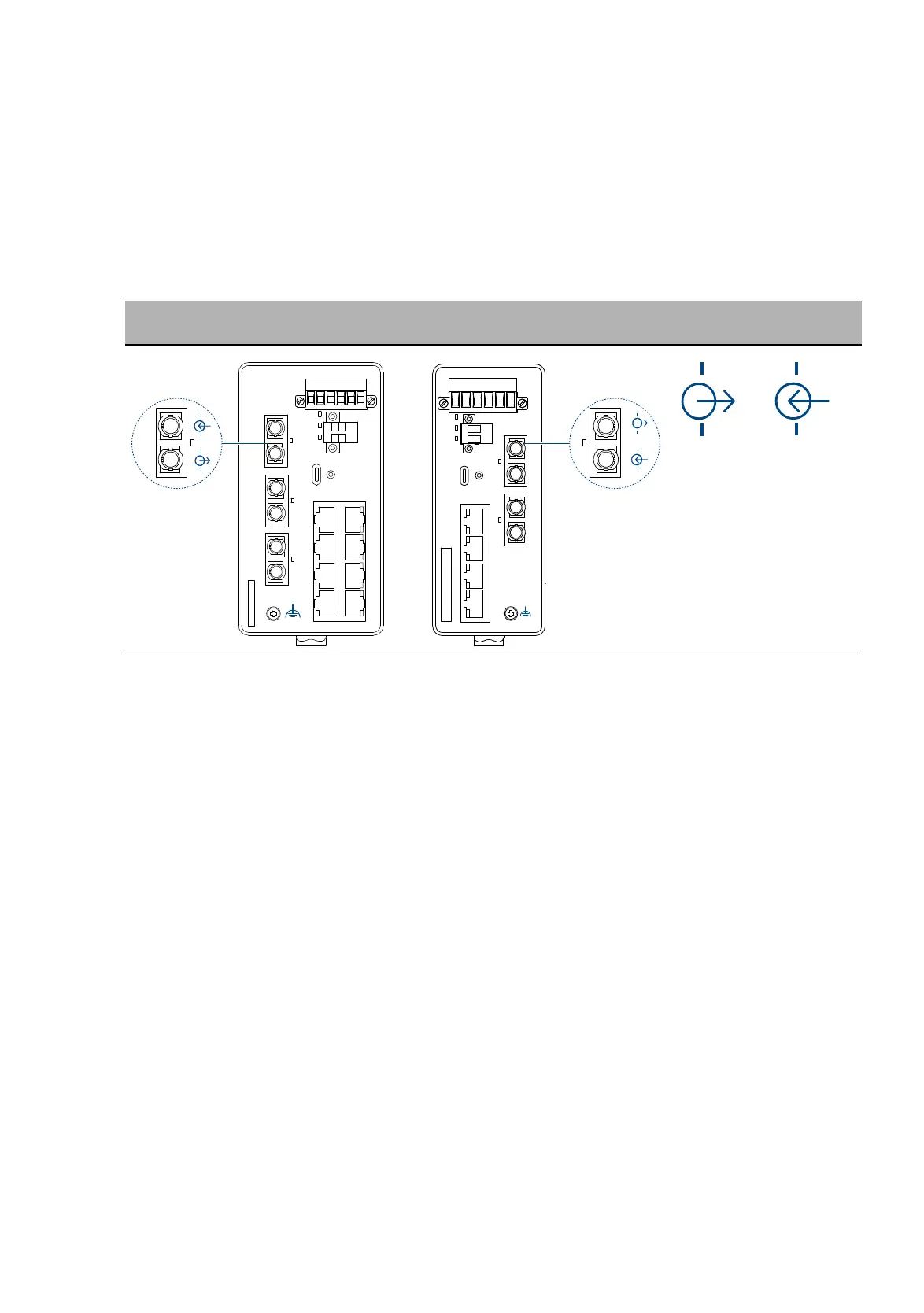

Example: Sending
direction
Receiving
direction
Table 3: Sending and receiving directions
Input
Power
Status
ACA
USB
1
2
3
4
5
6
7
8
9
10
11
IP-ADRESS
IP-ADRESS
USB
1
2
3
4
5
6
Power
Status
ACA
Input
