Installation BRS20/22/30/32/40/42/50/52
Release 12 01/2022
2.3 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 103.

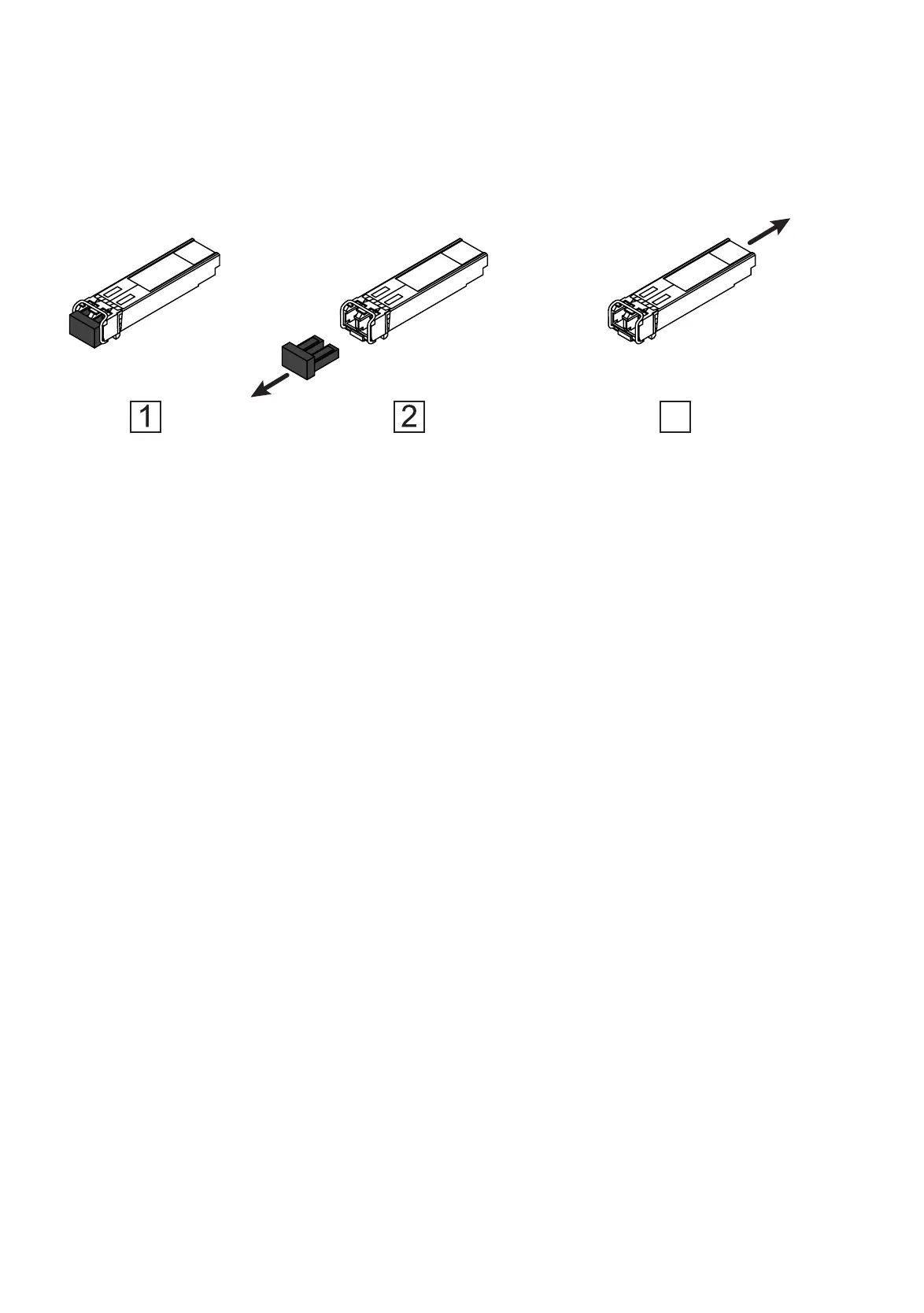

Figure 13: Installing SFP transceivers: Installation sequence
Perform the following work steps:
 Take the SFP transceiver out of the transport packaging (1).
 Remove the protection cap from the SFP transceiver (2).
 Push the SFP transceiver with the lock closed into the slot until it latches
in (3).
2.4 Connecting the terminal blocks
2.4.1 Power supply
Note: The supply voltage is connected to the device casing through
protective elements exclusively.
