6.2 Removing the device

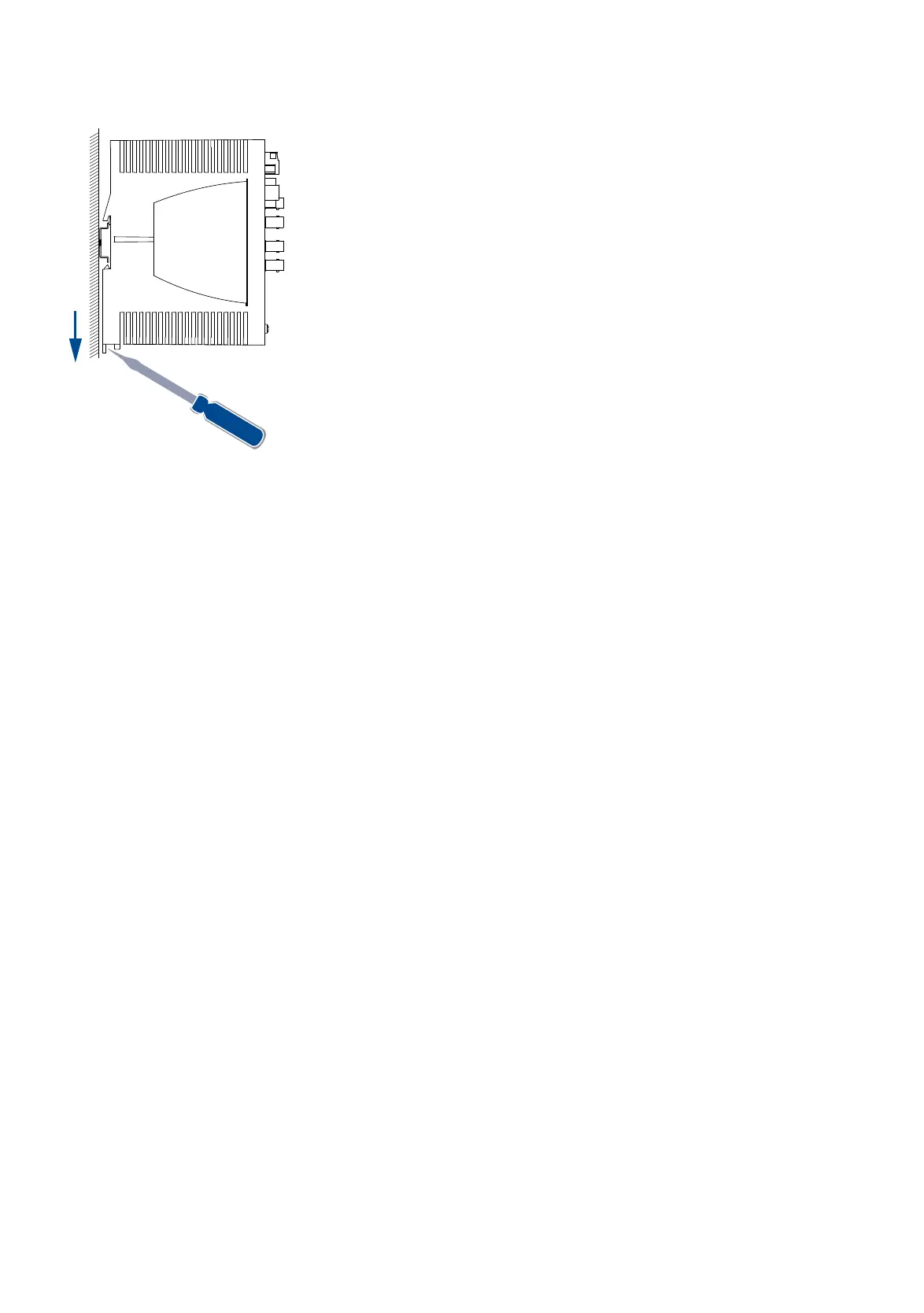

Figure 23: Removal from the DIN rail
Perform the following work steps:
 Disconnect the data cables.
 Disable the supply voltage.
 Disconnect the terminal blocks.
 Disconnect the grounding.
 Insert a screwdriver horizontally below the casing into the locking gate.
 Pull the rail lock slide down using a screwdriver and fold the device up.
