Installation BRS20/22/30/32/40/42/50/52
Release
12
01/2022
33
1.3.2 Rear view
7 depending on the device variants
BRS20/30
8 × RJ45 socket for 10/100 Mbit/s twisted pair connections
16 × RJ45 socket for 10/100 Mbit/s twisted pair connections
BRS40/50
8 × RJ45 socket for 10/100/1000 Mbit/s twisted pair connections
16 × RJ45 socket for 10/100/1000 Mbit/s twisted pair connections
8 Rail lock slide for DIN rail mounting
9 Grounding screw
10 Label area for IP address of device
11 Label area for MAC address of device
12 LED display elements for port status
13 depending on the device variants
BRS20
SFP slot for 100 Mbit/s F/O connections
DSC or DST singlemode socket for 100 Mbit/s fiber optic connections
DSC or DST multimode socket for 100 Mbit/s fiber optic connections
RJ45 socket for 10/100 Mbit/s Twisted pair connections
These ports support full duplex only.
Not present
BRS30
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
These ports support full duplex only.
SFP slot for 100/1000 Mbit/s F/O connections
BRS40
SFP slot for 100/1000 Mbit/s F/O connections
RJ45 socket for 10/100/1000 Mbit/s Twisted Pair connections
These ports support full duplex only.
BRS50
SFP slot for 100/1000/2500 Mbit/s fiber optic connections
14 2-pin terminal block with screw lock for the digital input

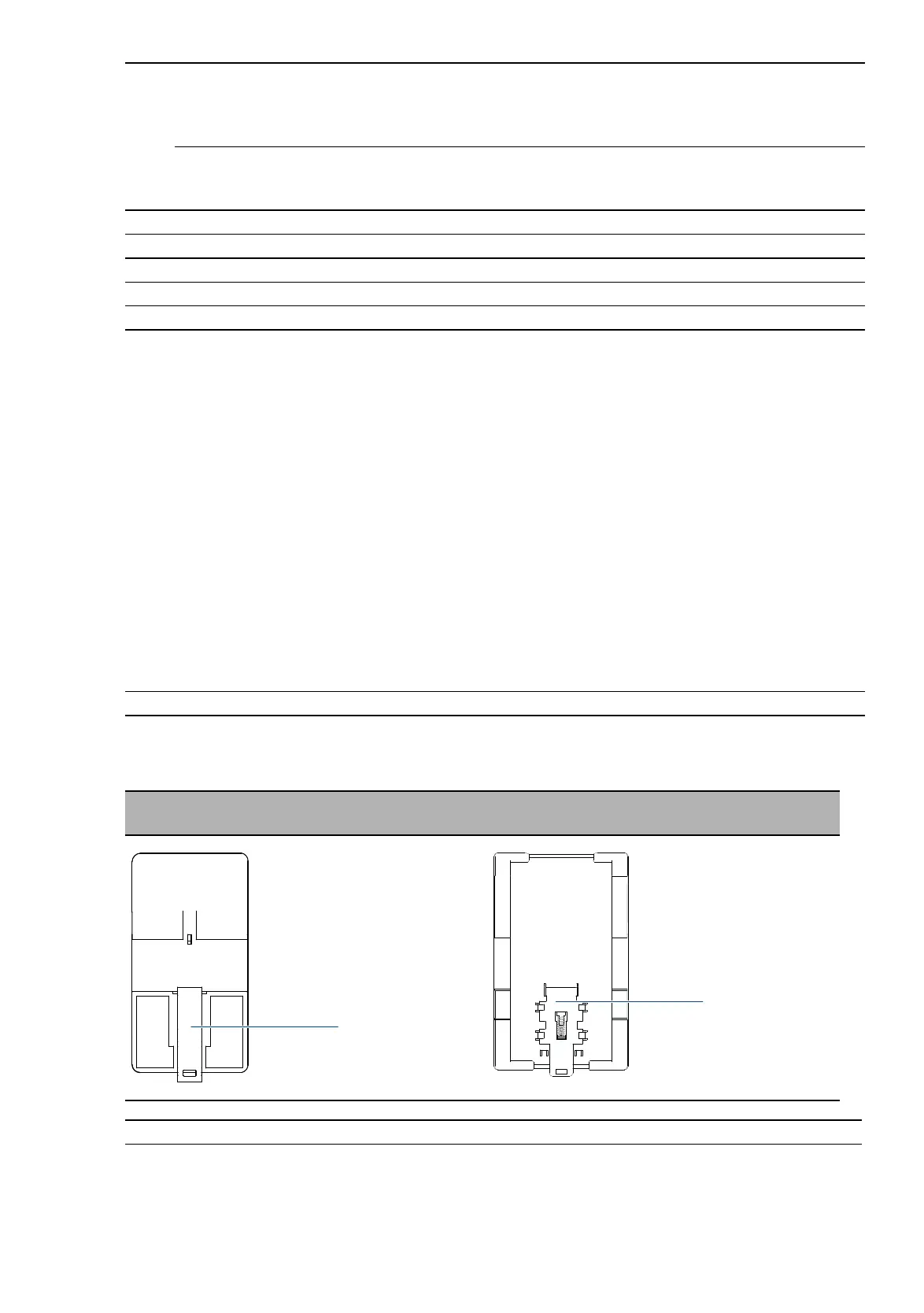

Device variants with casing characteristic
value C
Device variants with casing with
characteristic value E or D
1 Rail lock slide for DIN rail mounting
