Belden HIRSCHMANN BRS32 - Disassembly

Installation BRS20/22/30/32/40/42/50/52
Release 12 01/2022
63
6Disassembly
6.1 Removing an SFP transceiver (optional)

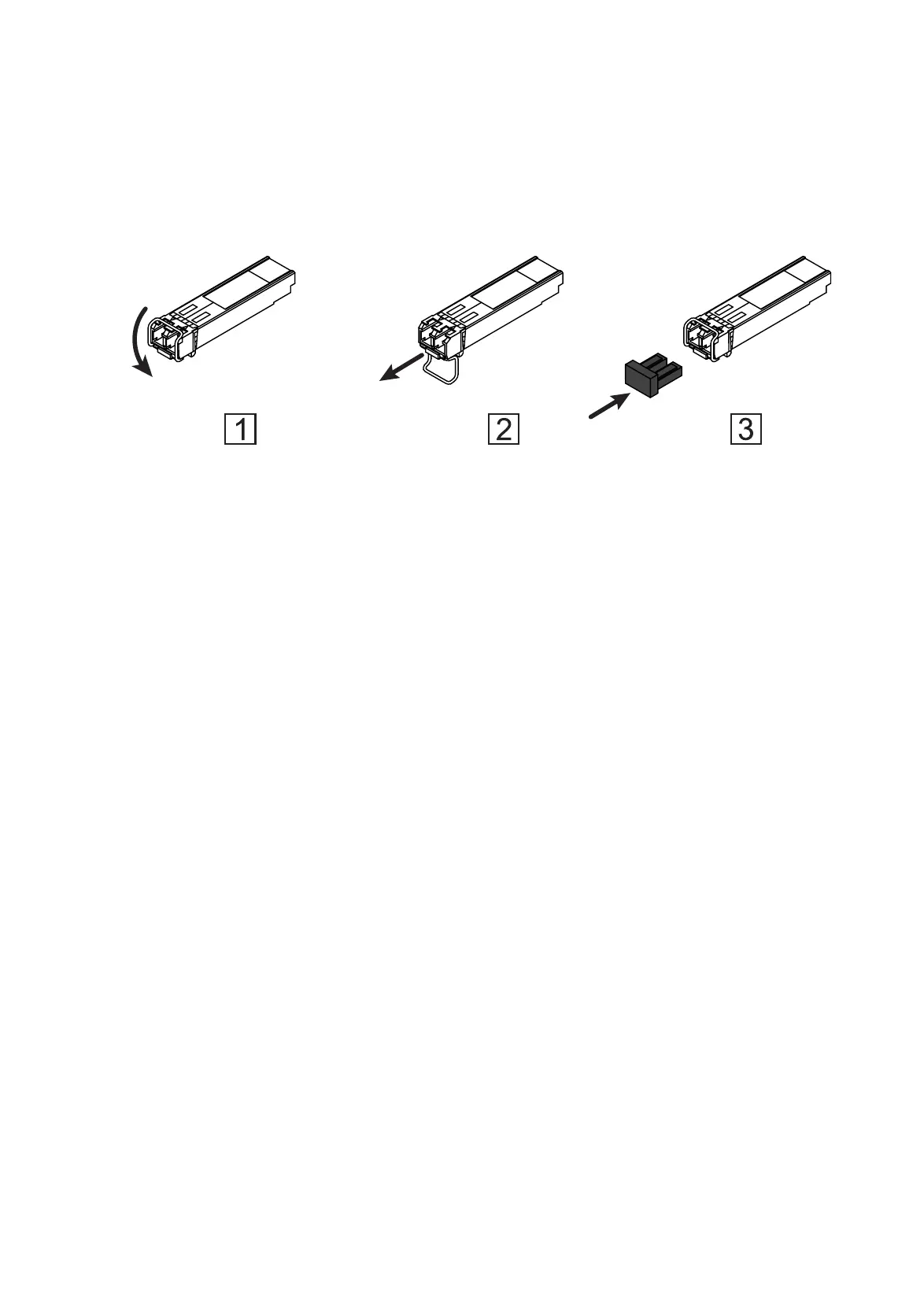

Figure 22: De-installing SFP transceivers: De-installation sequence
Perform the following work steps:
 Open the locking mechanism of the SFP transceiver (1).
 Pull the SFP transceiver out of the slot via the open locking
mechanism (2).
 Close the SFP transceiver with the protection cap (3).
