Belden HIRSCHMANN BRS32 - Signal Contact (Optional)

Installation BRS20/22/30/32/40/42/50/52
Release 12 01/2022
55
 Fasten the wires in the terminal block by tightening the terminal
screws.
 Mount the terminal block on the device using screws.
2.4.2 Signal contact (optional)

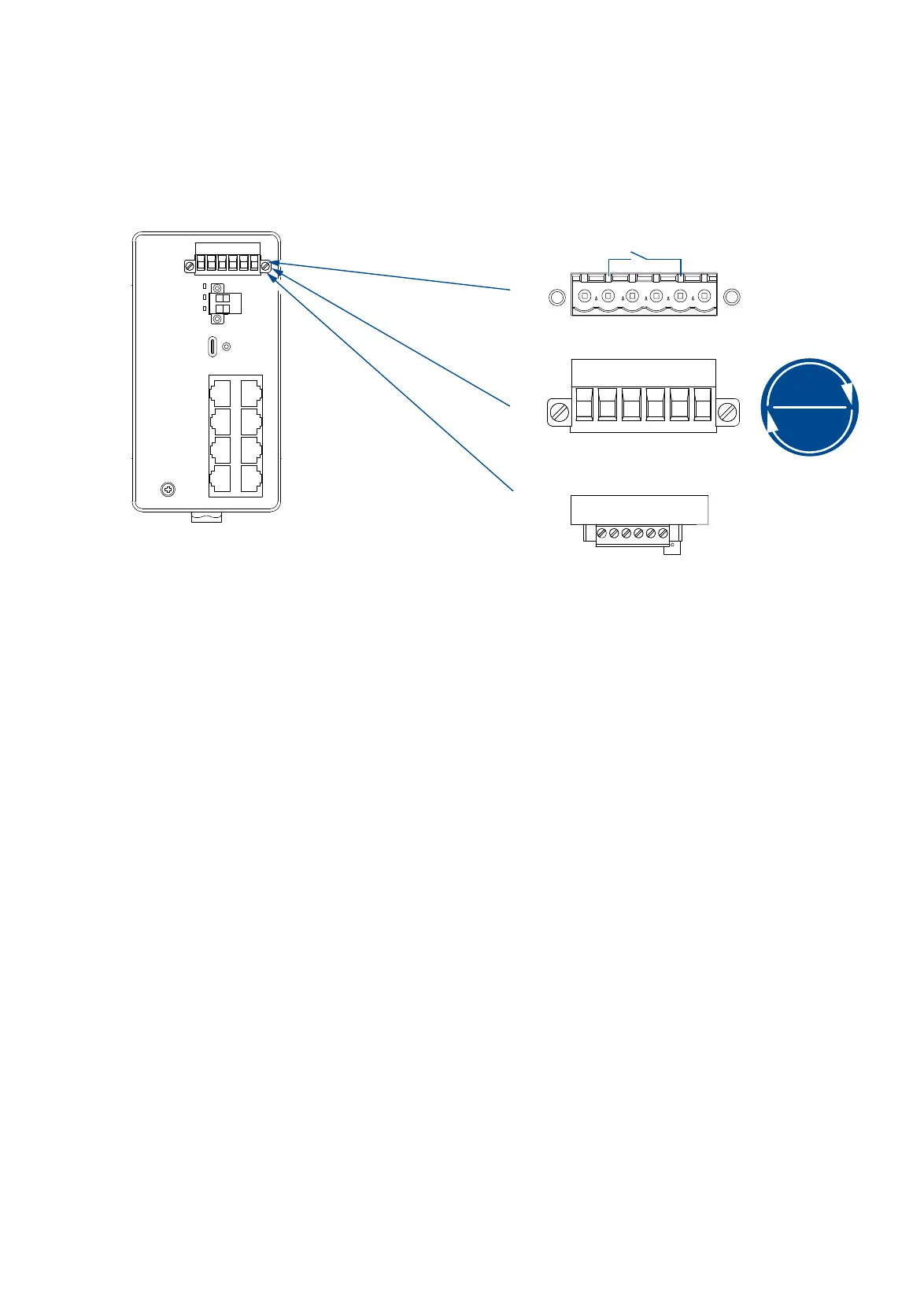

Figure 18: (1) Connection on the device, (2) terminal block mounted on the device
(front view), tightening torque, (3) terminal block mounted on the device
(view from above).
Perform the following work steps:
 Connect the signal contact lines with the terminal block connections.
 Fasten the wires in the terminal block by tightening the terminal screws.
 Mount the terminal block on the device using screws.
4.4 lb-in
0.5 Nm
RELAY
1
2
3
