VAV – Module NMV-D2M

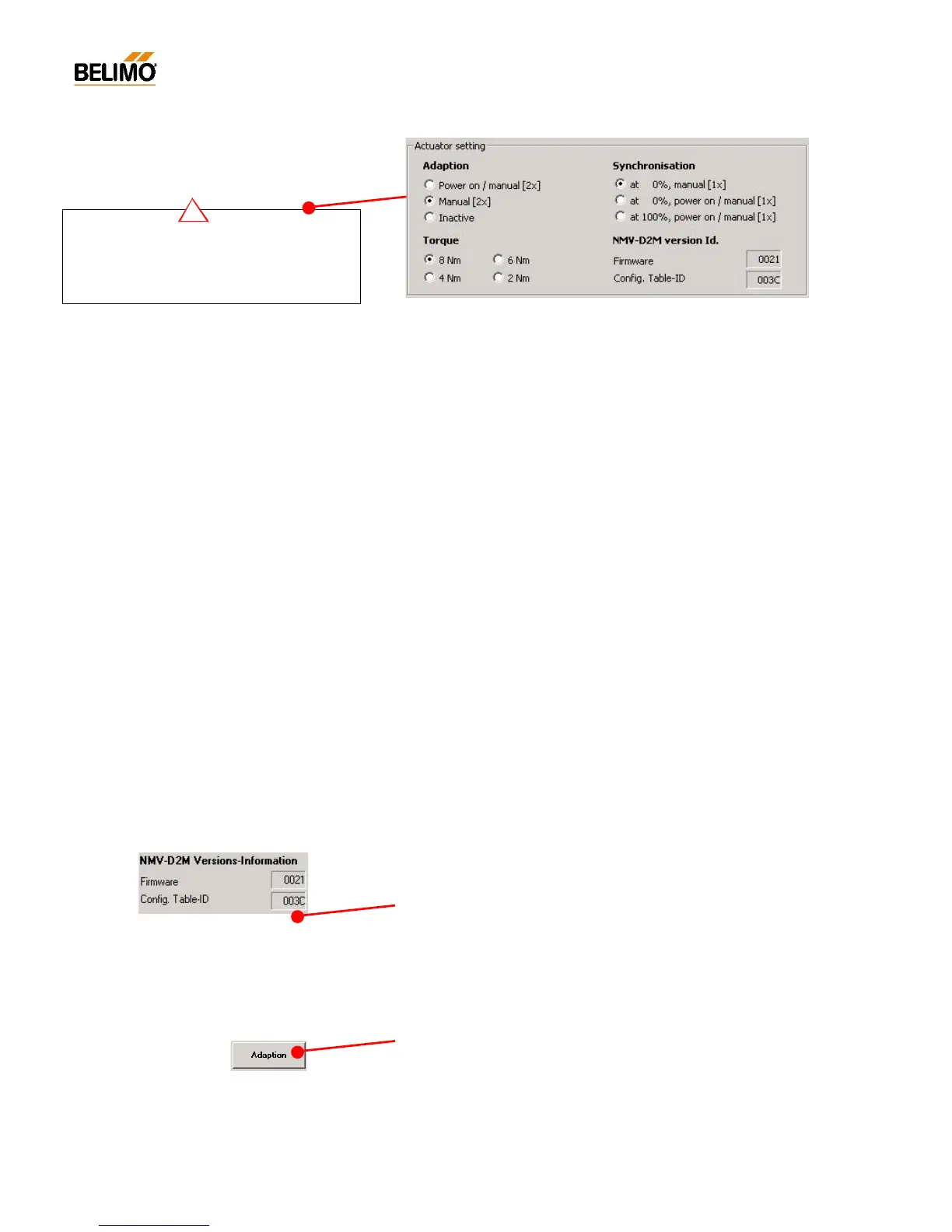

N-E3 Actuator settings
N-E3.1 Adaption
For adapting the control characteristics to the available range of control.
Setting Function Remarks
Manu al (2x) Adaption is initiated by Recommended
2x press manual disengagement button setting
Off Adaption deactivated
Automatic Adaption initiated:
(Power ON - after each power off
and manual (2x)) - 2x press manual disengagement button
N-E3.2 Synchronisation
Initiation criteria for synchronising the position calculation.
Setting Function Remarks
at 0% manual (1x) Synchronising at Closed position Recommended
- at first commissioning setting
- when manual disengagement button
at 0% manual (1x) Synchronising at Closed position
and Power ON - at each power-up
- at power fail
- when manual disengagement button
at 100% manual (1x) Synchronising at Open position
and Power ON - at each power-up
- at power fail
- when manual disengagement button is pressed
N-E3.4 Torque
Adapting the maximum value of torque to suit the type of air box being
used.
Step Function Torque
100% Rated active torque min. 8 Nm
75% 75% of active torque ca. 6 Nm
50% 50% of active torque ca. 4 Nm
25% 25% of active torque ca. 2 Nm
N-E3.5 NMV-D2M versions information
Indication of the version of software and the configuration table currently
being used in the controller.
- Firmware : Software version (Hex-Code)
- Config. Table ID : Configuration table (Hex-Code)
N-E4 Adaption
With this function it is possible to acquire the positions of the upper and
lower damper end-stops and store them in the NMV-D2M. Running time
and working range are then adapted to the available angle of rotation. As-
certaining the positions of the mechanical end-stops allows a smooth ap-
proach to the end-stops so preventing any unnecessary overloading of
the actuator and damper mechanisms.
Actuator setting
