LINETRAXX® RCM410R-1/-2
100
M4
Nm
1.0
!
3 Mounting and connection
i
Only qualified personnel are permitted to carry out the work necessary to install, com-
mission and run a device or system.
I
risk of electrocution due to electric shock! Touching live parts of the system carries the
risk of:
- A fatal electric shock
- Damage to the electrical installation
- Destruction of the device
Before installing and connecting the device, make sure that the installation has been
de-energised. The rules for working on electrical systems must be observed.
3.1 Mounting

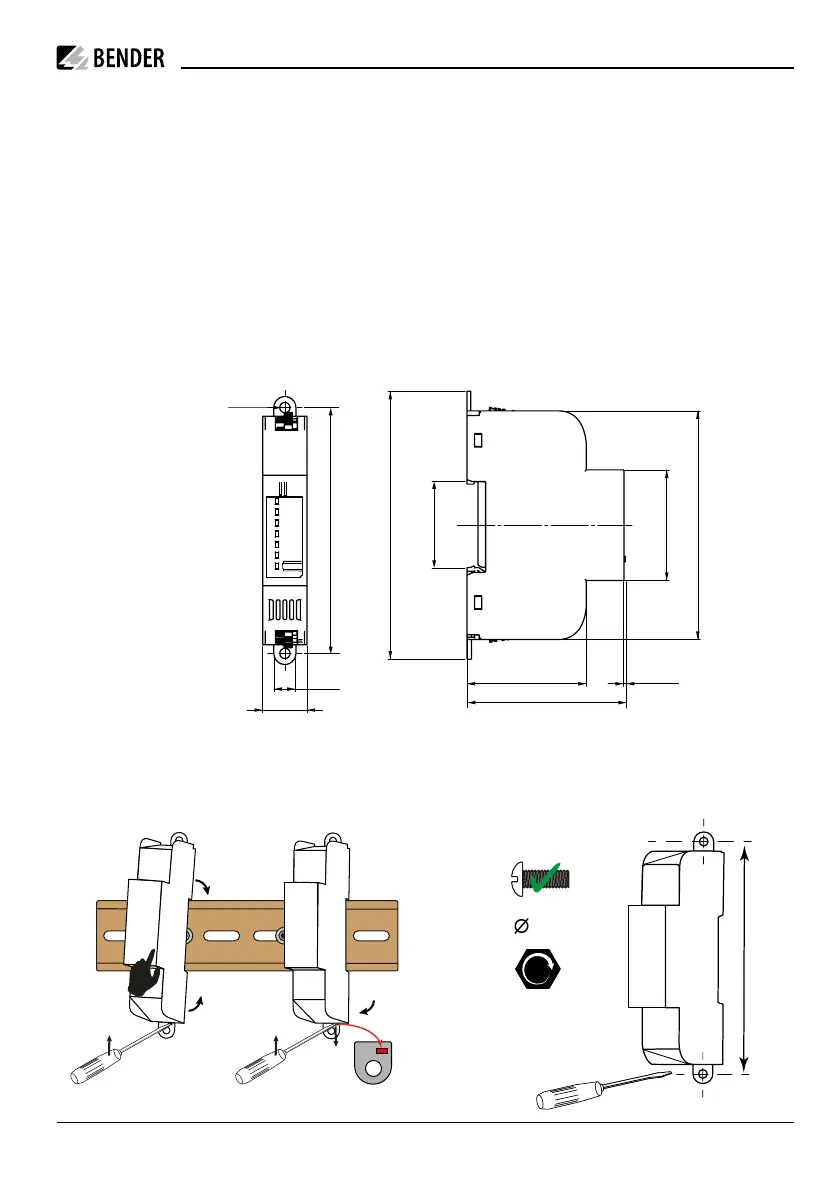

Abb. 3–1 Dimensions in mm
18
8,8
100
109
93
64
48.5
45
1
65
35
2 x Ø 4,2
18
8,8
100
109
93
64
48.5
45
1
65
35
2 x Ø 4,2
Screw mountingDIN rail mounting
1.
2.
3.
1.
Click!
2.
Mounting Removal
