5. Operation and setup
5.1 Display elements
The meaning of the display elements in use is listed in the table below.

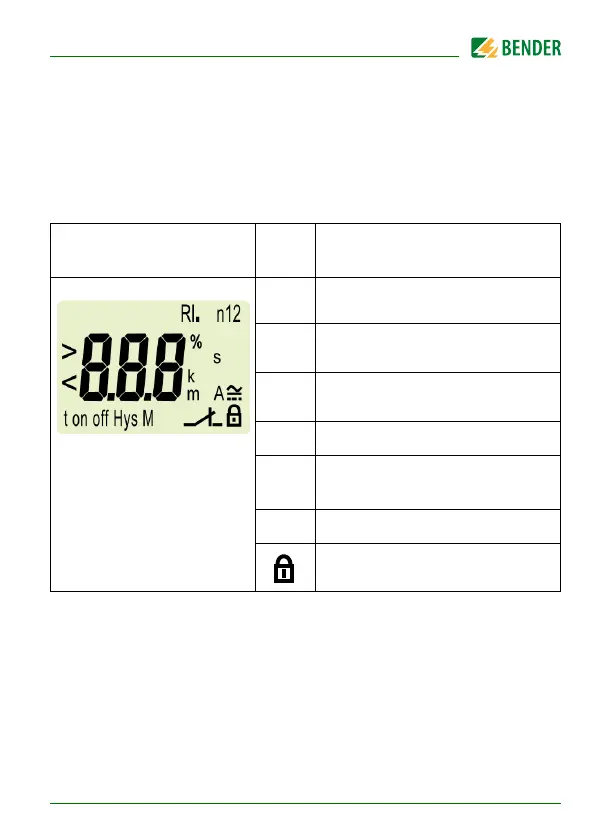

Display elements
Elemen
t
Function
RL
Reload function with memory = off
(L = I.)
I2
Response value I
n2
in mA
(alarm 2, main alarm)
I1
Response value I
n1
in % of I
n2
(alarm 1, prewarning)
I Hys, % Response value hysteresis in %
t Start-up delay t
M Fault memory active
Password protection enabled
