GETTING STARTED
Mount the display unit and connect to power source.

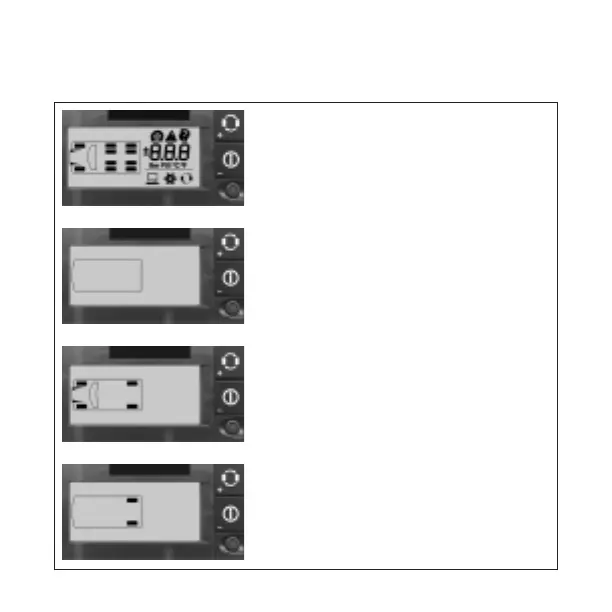

When power is applied to the receiver, the Full
Function Display momentarily turns on all icons,
beeps, and the alarm light blinks once. The unit
then goes into stand-by mode waiting for data
from the wheel transmitters.
Until the vehicle is in motion no data will be
received from any installed transmitter. The
display will remain blank as shown.
The respective tire icon is filled in as soon as data
from its transmitter is received. The windshield/
louver is shown for any towing vehicle transmitter.
After data from all transmitters is received the
display will be in the state shown at left until an
alert or warning condition is detected.
(Normal Mode)
Data from a towed vehicle is indicated by tire
icons with no windshield/louver icon.
Note: The system will alternate views between
the towing and towed vehicle when operating
with this configuration.
