GrandPrix (GP-7 Series) Two-Post Lifts 15 P/N 5900209 — August 2018 — Rev. C2
⚠ WARNING Cutting through a tensioned cable can result in injury or death. Do not drill into a
post tension slab unless the building architect confirms you are not going to hit
tensioned steel or you have located it using ground penetrating radar. If colored
sheath comes up during drilling, stop drilling immediately.
Anchor Bolt specifications are:
• Length: 6.25 inches
• Diameter: ¾ inch
• Effective embedment depth: 3.25 inches, minimum
• Anchor torque: 110 – 150 foot pounds
⚠ WARNING Use the ALI-certified Anchor Bolts that came with your GP-7 Series lift. If you use
components from a different source, you void your warranty and compromise the
safety of everyone who installs or uses the lift.

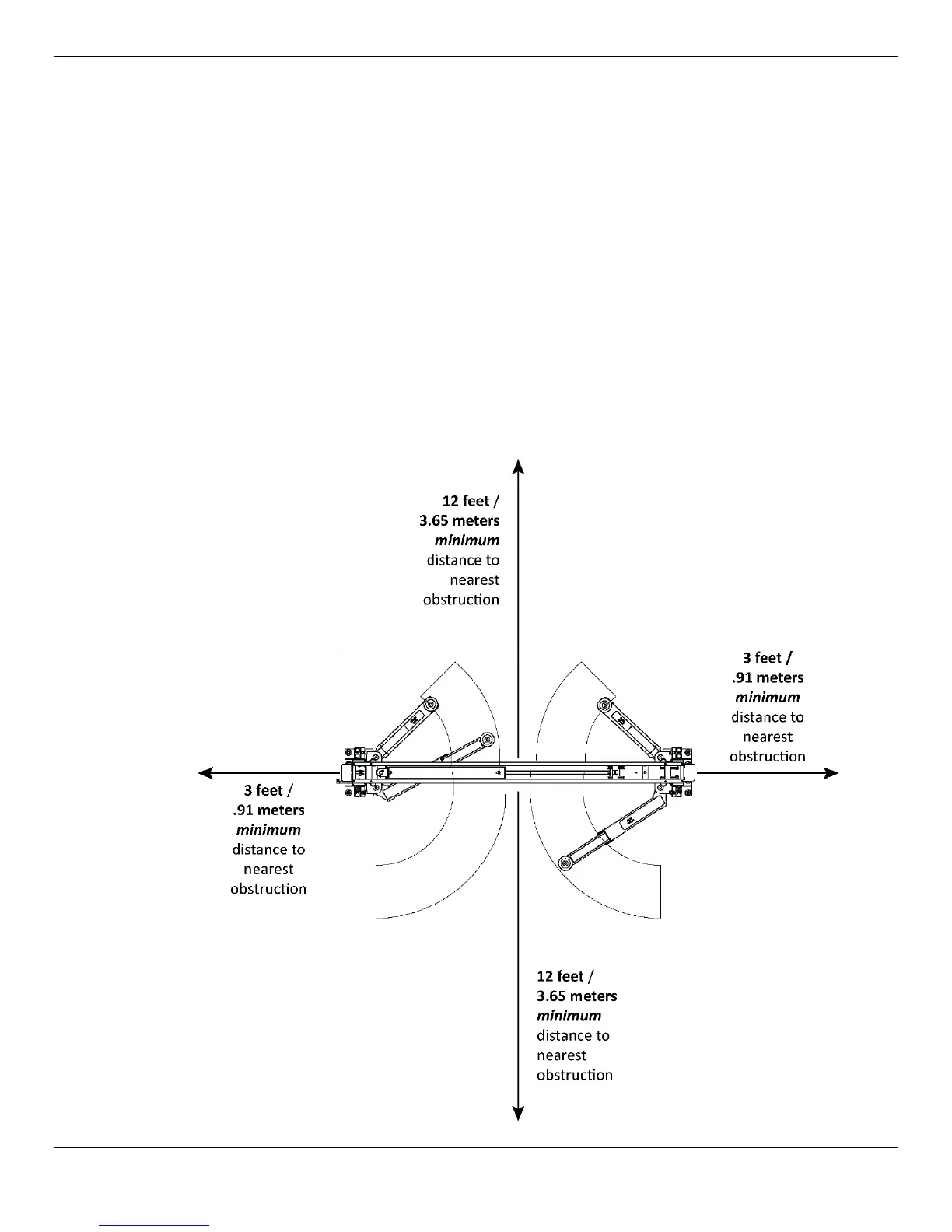

Clearances
