GrandPrix (GP-7 Series) Two-Post Lifts 27 P/N 5900209 — August 2018 — Rev. C2

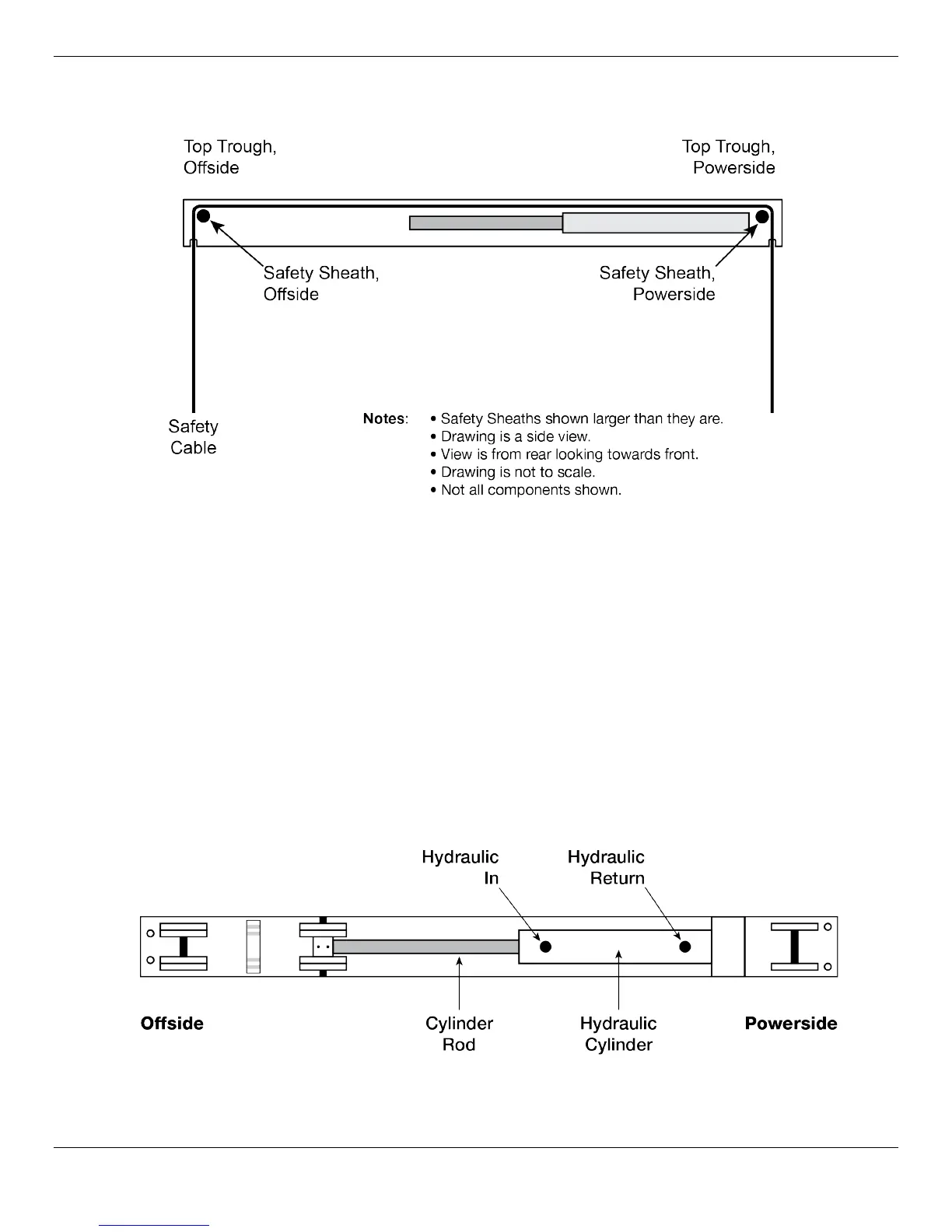

Safety Sheave, down through the small notch in the bottom of the Top Trough, and down to the
Powerside Safety.
3. Leave the two ends of the Safety Cable hanging over the ends of the Top Trough.
They will remain this way until the Top Trough is put into place.
⚠ CAUTION Do not step on or trip over the Safety Cable while the Top Trough remains near the
ground. It is a hazard until the Top Trough is put into position.
Connecting the Hydraulic Cables
The Hydraulic Cables connect to ports on the Hydraulic Cylinder on one end and to the Hydraulic
Lines on the other end. Together, the Hydraulic Cables and Hydraulic Lines move hydraulic power to
and from the Hydraulic Cylinder.
The two Hydraulic Cables are:
• Long Hydraulic Cable. Connects to the Hydraulic In port.
• Short Hydraulic Cable. Connects to the Hydraulic Return port.
