Installing the Pushbutton Air Valve
The Pushbutton Air Valve is used to lower the Runways. It can go on either side of the Power Unit, but
we recommend placing it on the side facing away from the Lift to be out of the way.
Once the pushbutton is in place, you need to connect it to the Air Line on one end and the customer-
supplied air pressure on the other end. A minimum air pressure of 75 PSI / 3 CFM is
required.

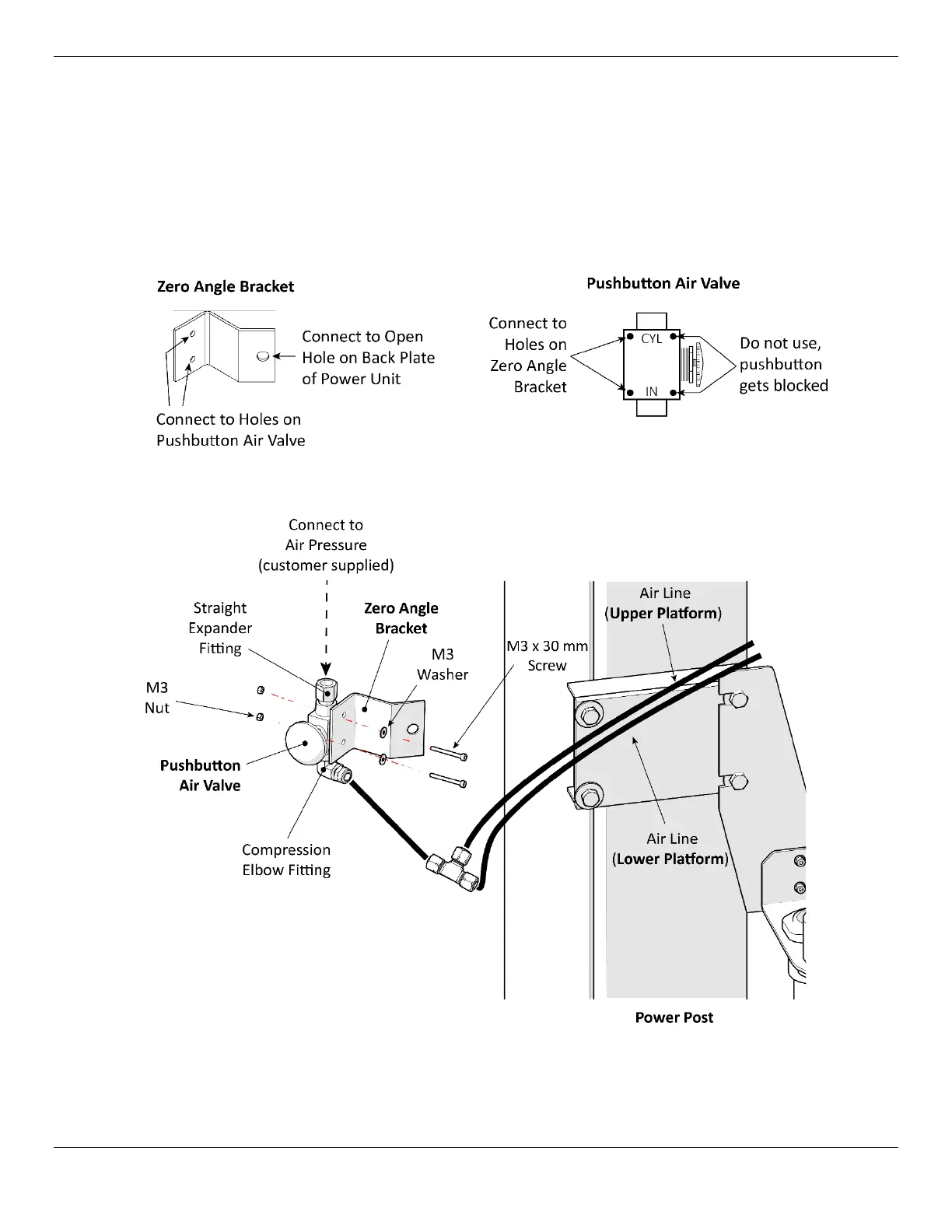

The following drawing shows the Zero Angle Bracket and where it connects.
The following drawing shows the Pushbutton Air Valve and its connections.
Power Unit not shown. Front view.
