MD-6XP Mid-Rise Scissor Lift 13 P/N 5900108 — Rev. F — March 2020

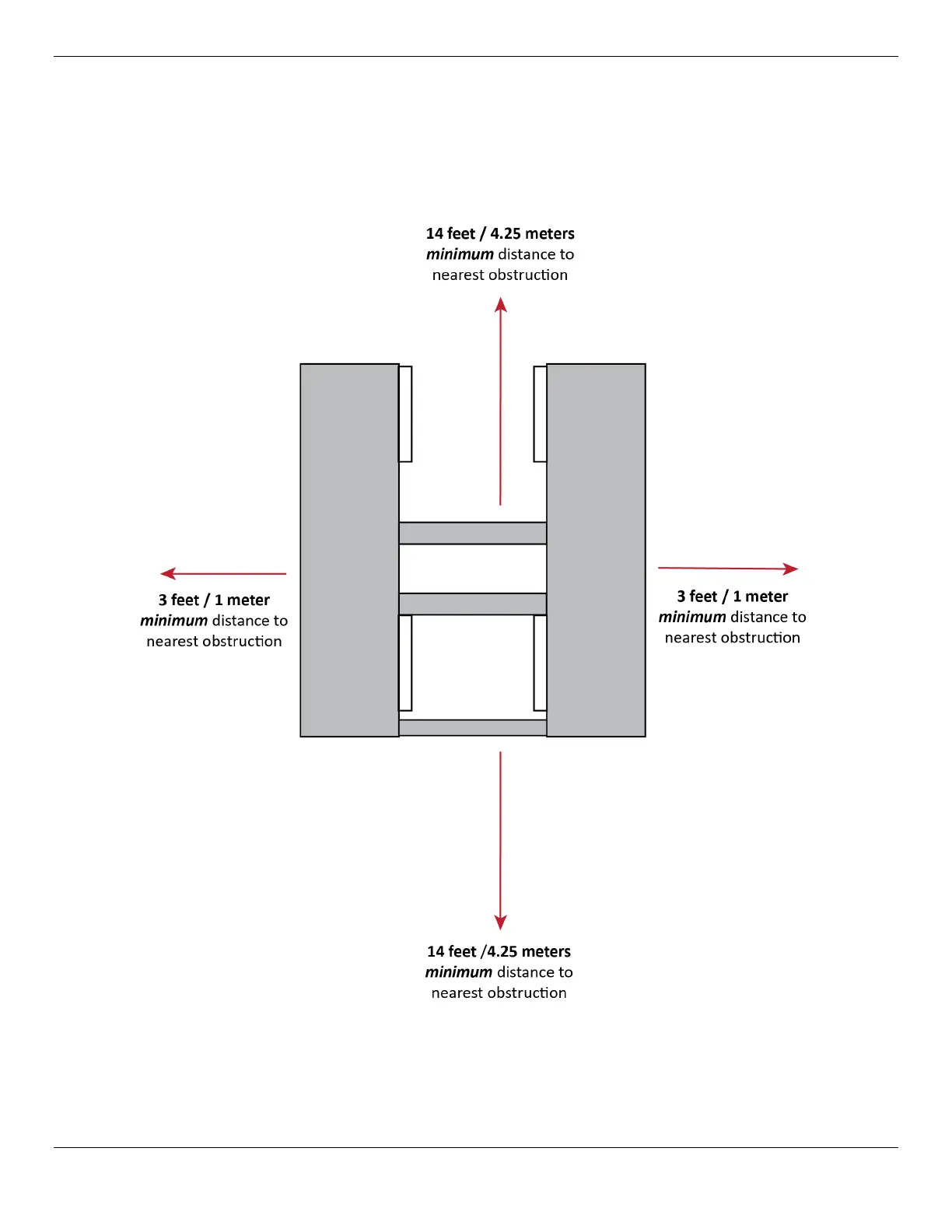

Clearance Around the Lift
For safety purposes, a certain amount of clear space around the Lift is
required
.
You also need to make sure to leave enough space
above
the Vehicles you will be raising. Be sure to
check for low-hanging obstructions such as hanging lights, beams, and so on.
Do not install the
Lift under low-hanging obstructions
.
Extra distance is required on both ends so that you can drive Vehicles onto and off of the Lift in either
direction; if your layout only allows Vehicles to be driven onto and off the Lift from one direction, then
less space is required at the non-approach end.
