Components

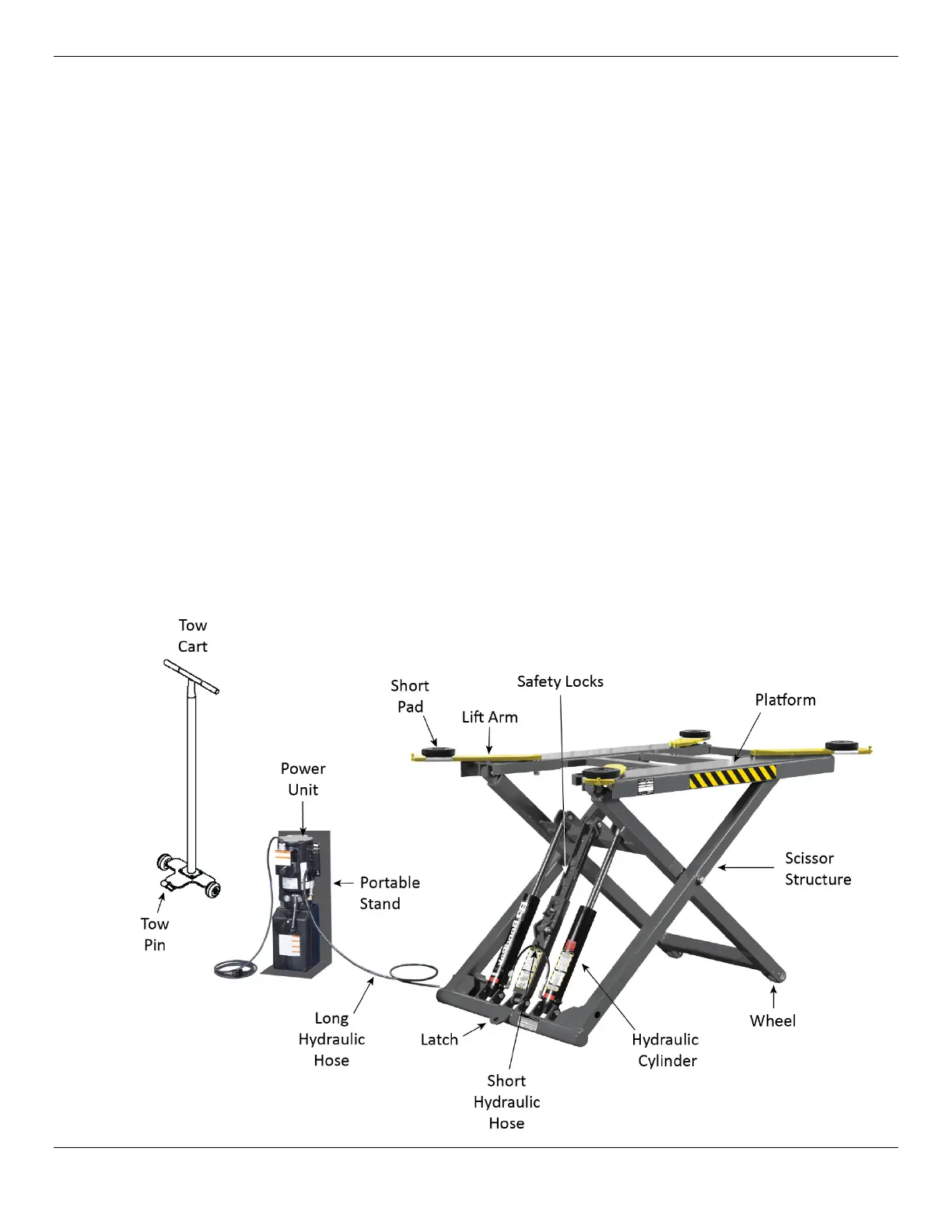

MD-6XP components include:
• Scissor Structure. Holds the Lift together. Pivots in the middle. The two scissor pieces move
together to raise the Lift, move apart to lower it.
• Power Unit. Provides Hydraulic Fluid to the Hydraulic Cylinders, which they use to raise the
Scissor Structure. Connects to an external power source.
• Platform. Located on the top of the Scissor Structure. Holds the Arms and the Lift Pads.
• Hydraulic Cylinders. Move the Scissor Structure and Platform up to raise a Vehicle, move them
down to lower a Vehicle.
• Long Hydraulic Hose. Connects to the Hydraulic Cylinder on the Lift closest to the Power Unit.
• Short Hydraulic Hose. Connects the two Hydraulic Cylinders on the Lift.
• Safety Locks. Hold the Platform in place, once they are engaged. The MD-6XP has three Safety
Lock positions, which lets you select the right Vehicle height for your needs.
• Latch. Located at the Base of the Lift, used for moving the Lift around.
• Lift Arm. Attaches to the inside channels of the Platform, used for holding the Lift Pads.
• Lift Pads. Black, rubber Pads that make contact with the Lifting Points on the underside of the
Vehicle being raised; do
not
raise a Vehicle on the Platform. The Lift comes with four Short Pads
and four Tall Pads/Adapters/Bases. Using the Lift Pads is
required
.
• Portable Stand. Holds the Power Unit, has two mounting holes to attach the Power Unit.
• Tow Cart. Used for moving the Lift around your work space.
• Tow Pin. Attached to the Tow Cart, hooks to the Lift so you can move it.
