Attach the Power Unit to the Portable Stand
The Power Unit attaches to a Portable Stand, so that you can move the Power Unit along with the Lift;
the Power Unit can be placed up to 35 inches away from the Lift.
Tip The Power Unit is heavy and awkward. We recommend having one person hold the
Power Unit while a second person bolts it onto the Stand.

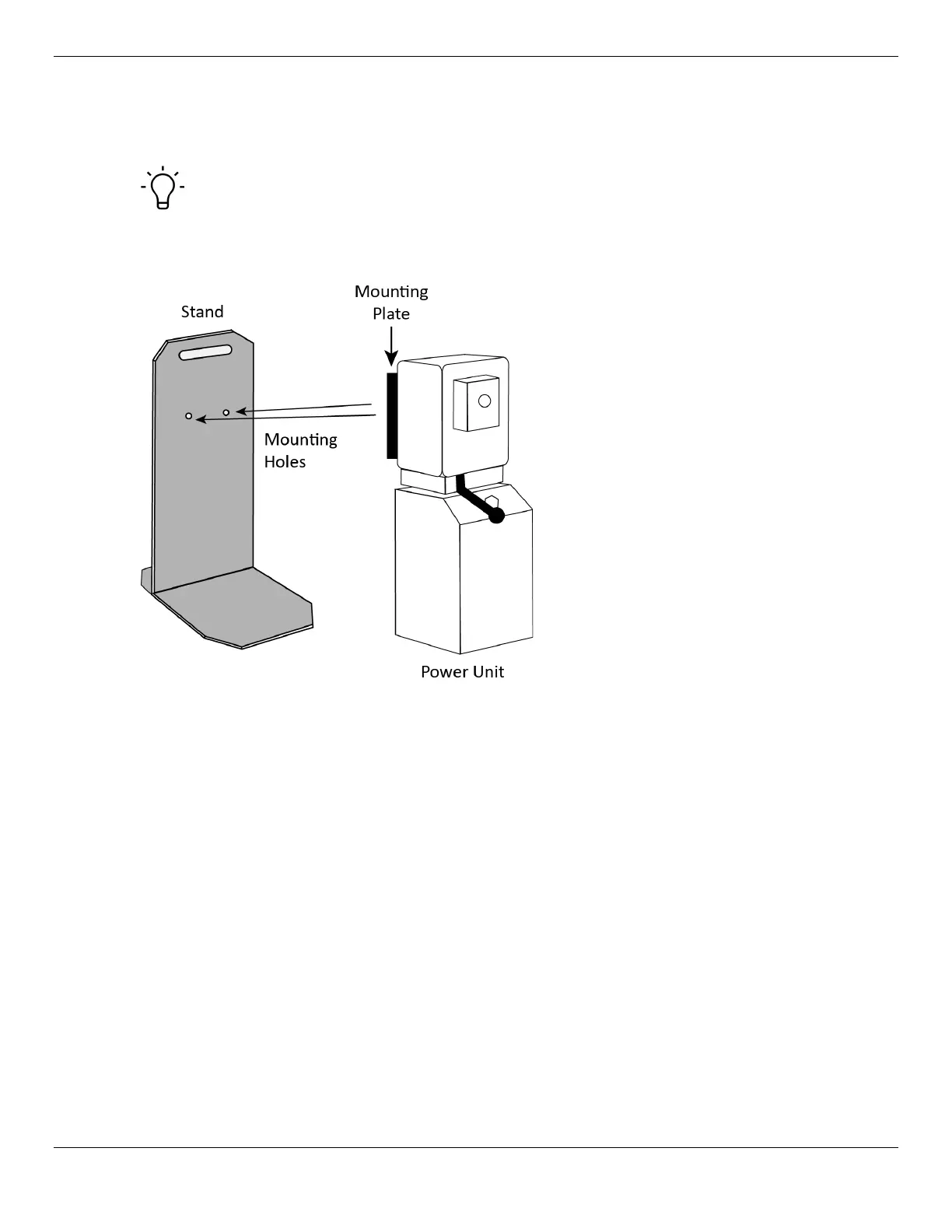

The following drawing shows the components of the Portable Stand.
Side View. Not all components are shown. Not to scale.
To attach the Power Unit to the Portable Stand:
1. Find the Power Unit, Portable Stand, and necessary hardware.
2. Remove the Power Unit from its packing material.
3. Align the Power Unit Mounting Plate with the Mounting Holes on the Stand, then secure it in place
with the supplied Nuts and Bolts.
4. Use an appropriate tool to securely tighten the Nuts and Bolts.
Important: Do
not
make any connections to the Power Unit at this point.
