P-9000LT/F Low-Rise Pit Lift 27 P/N 5900022 — Rev. B — Nov. 2019
5.
Switching to the Flow Divider
, connect the two Out Fittings to appropriate ports (see the

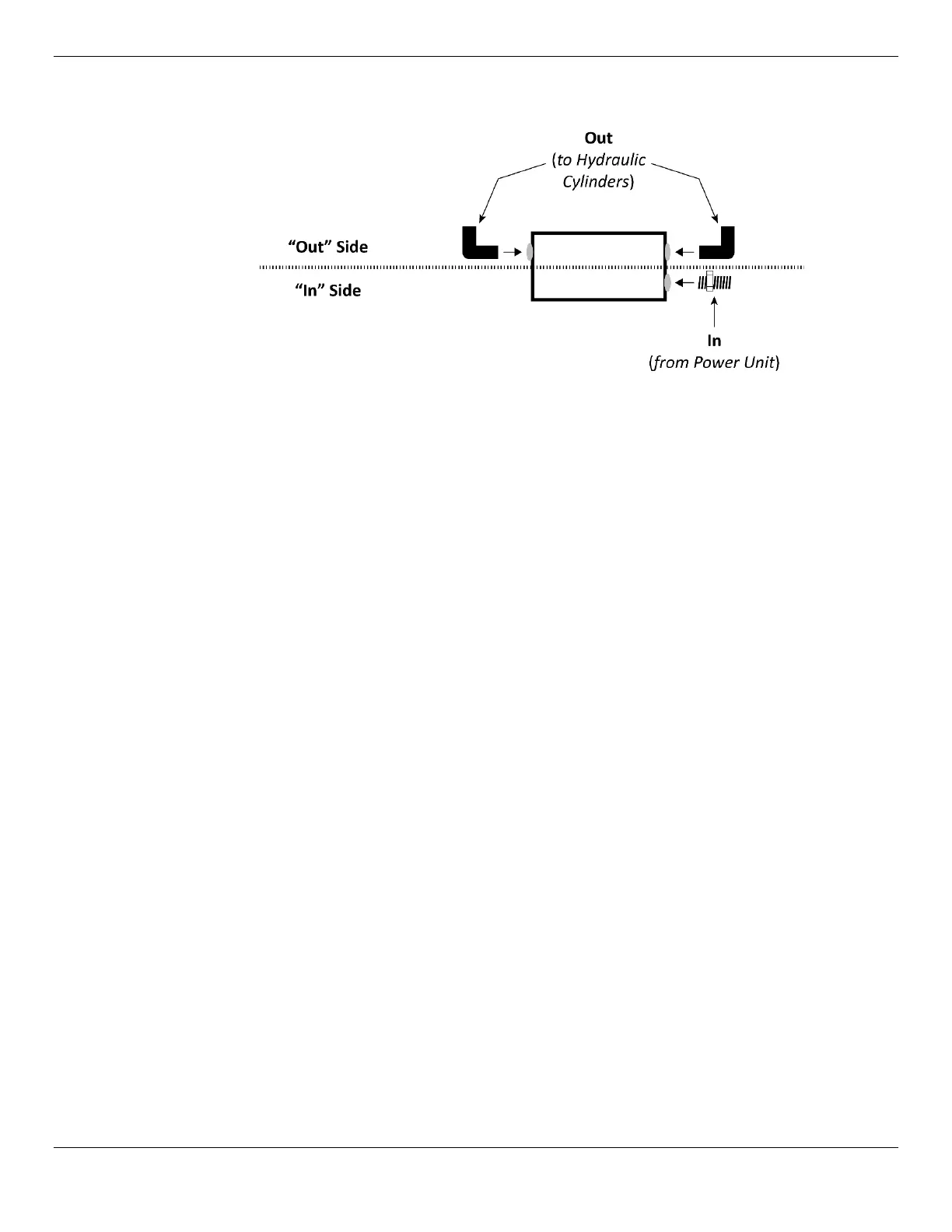

drawing below) and then connect the In Fitting to its port.
Some components not shown, other components exaggerated. Fittings shown not connected for
clarity. Drawing not necessarily to scale.
The ports for the two Out Fittings and the In Fitting may have colored plugs that need to be
removed before you put the fittings into place.
6. Connect the free end of the Short Hydraulic Line (coming from the Power Unit) to the In Fitting on
the Flow Divider.
7. Connect the two Long Hydraulic Lines to the two Out Fittings on the Flow Divider.
8.
Switching to the Hydraulic Cylinders
, remove the Shipping Plugs from the Hydraulic Hose
Ports near the bottom of each Hydraulic Cylinder.
9. Attach an Hydraulic Elbow Fitting to each of the Hydraulic Hose Ports.
