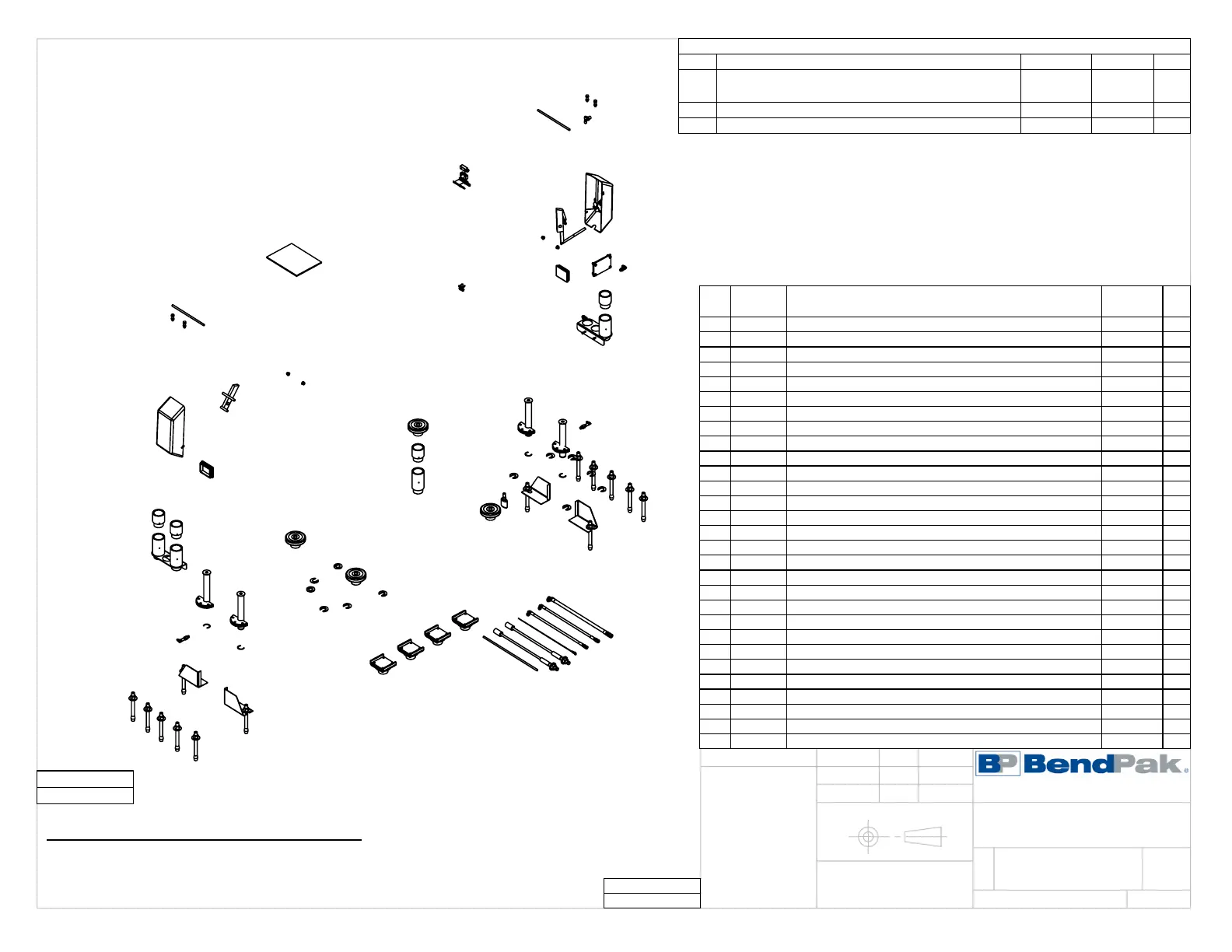

BendPak XPR-12CL Service Manual

DIMENSIONS ARE IN MM
☺
NEXT ASSEMBLY
5260567
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5174518 D2-12/15, XPR CLEARFLOOR PARTS BAG 1 N
2 5736605
D2-12C/XPR-12 BOLT ON ARM RESTRAINT GEAR
4 E
3 5746192 ARM ADAPTER, MEDIUM 4 E
4 5746193 ARM ADAPTER, LONG 4 D
5 5716174
D2-8/12/15, GP/XPR OFF SIDE PLASTIC SAFETY COVER
1 B
6 5716173
D2-8/12/15, GP/XPR POWER SIDE PLASTIC SAFETY COVER
1 B
7 5215701 ROUND LIFT PAD ADAPTER ASSEMBLY 4 D
8 5715003 POWER UNIT VIBRATION DAMPENER 1 B
9 5210010 D2/XPR OFF SIDE SAFETY WELDMENT 1 F
10 5210196
D2/XPR POWER SIDE INCLINED SAFETY ASSEMBLY
1 C
11 5505346 D2/XPR-12C/FD LIFT HEAD PIN WELDMENT 4 B
12 5570150 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 9611mm SB 1 E
13 5570017 HYDRAULIC HOSE ASSEMBLY Ø10 x 1219mm SB 1 D
14 5570832 HYDRAULIC HOSE ASSEMBLY Ø6.35 x 2299mm SB 1 F
15 5595125 Ø2.4mm x 8900 SAFETY CABLE 1 C
16 5595922 CABLE ASSEMBLY Ø12 x 10640mm ST 2 D
17 5540281 C RING Ø38mm OD 5103-150 4 -
18 5746166 DOUBLE THREADED ROD M10 x 1.5 x 295 2 B
19 5525150 SPDT MICRO SWITCH;25A@125VAC 1 -
20 5520116 14-4 SJO UL 62 CABLE 300vac 4275mm* -
21 5525112 MICRO SWITCH COVER-5PA2 1 -
22 5716634 D2/10AP/XPR MICROSWITCH COVER, PLASTIC 1 B
23 5215702 CRADLE LIFT PAD LARGE ADAPTER ASSEMBLY 4 E
24 5530308 AB 3/4" x 7" 14 -
25 5550112 FTG NPL -04 NPT x -04 F NPT 2 -
26 5900370 XPR-12CL-18CL INSTALLATION MANUAL 1 -
27 5701660 10AP/D2-12/15/XPR HEIGHT ADAPTER HOLDER 2 B
28 5701661 D2/XPR-12/15/18 FOOT GUARD, R.H. 2 A
29 5701662 D2/XPR-12/15/18 FOOT GUARD, L.H. 2 A
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
D
ADDED 5701660, 5701661 AND 5701662, REMOVED
5535011 AND 5545345, UPDATED BOM REVISIONS
03/09/2020 TM 01107
E UPDATED BOM REVISION 10/05/2020 TM 01215
F UPDATED BOM REVISION 06/22/2021 TM 01310
WHERE USED
XPR-12CL
SHEET 1 OF 2
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
F
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5250254
XPR-12CL PARTS BOX
10/17/2018
DO NOT SCALE DRAWING
1:28
SCALE:
THIRD ANGLE PROJECTION
OR 07/01/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
FOR 5220116 SPECIFICATIONS REFER TO PART SPECIFICATION FORM 3.
(*)5520116 QTY FOR REFERENCE ONLY 4.
