BendPak XPR-12CL Service Manual

DIMENSIONS ARE IN MM
☺
1
7
8
2
3
6
9
4
5
11
10
12

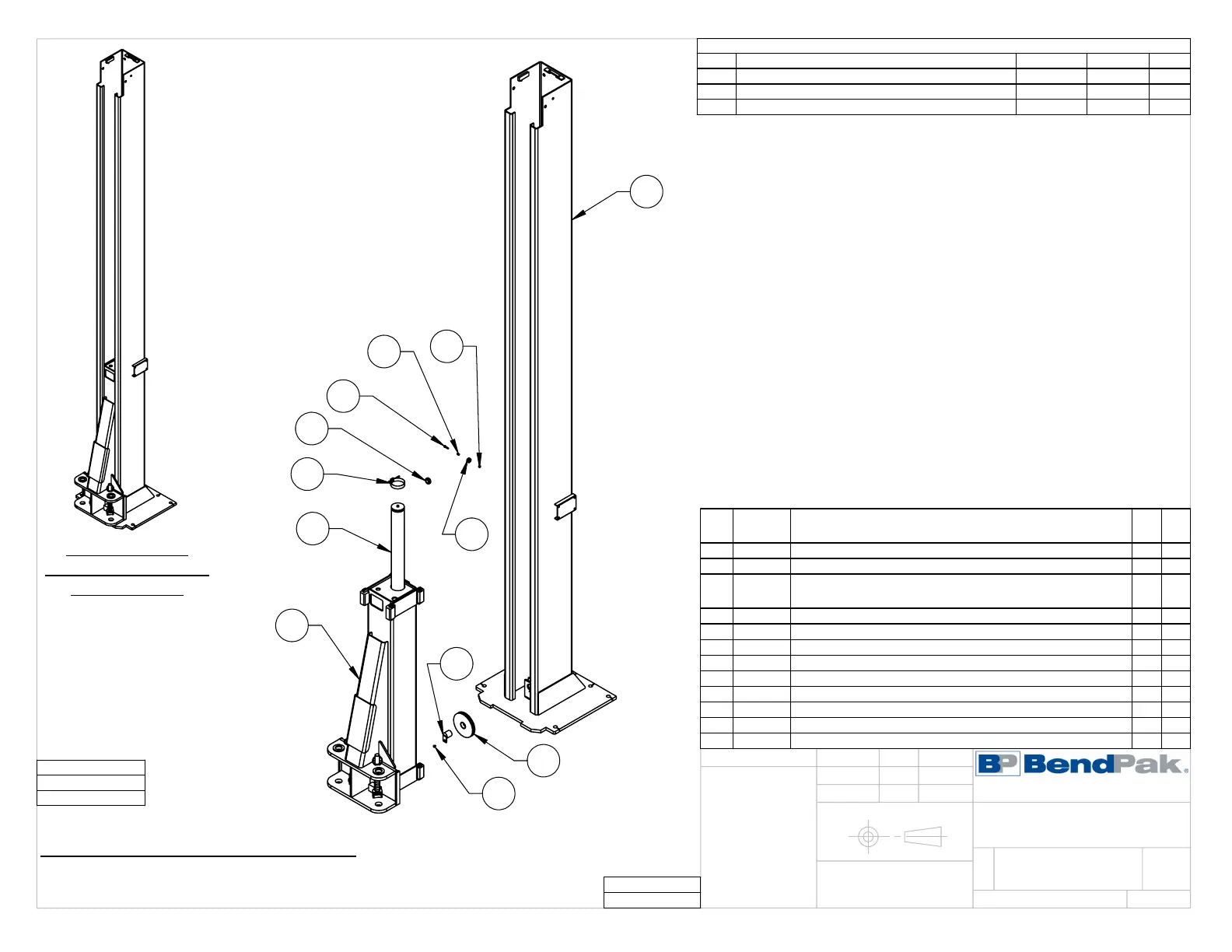

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
AB UPDATED BOM REVISION 05/15/2019 TS 01086
AC UPDATED BOM REVISIONS 03/09/2020 TM 01107
AD UPDATED BOM REVISION 12/22/2020 TM 01251
NEXT ASSEMBLY
5245138
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5600399 XPR-12/15/18CL POWER SIDE POST WELDMENT 1 M
2 5575113 D2/XPR-12/15/18 SHEAVE ASSEMBLY 1 E
3 5620142
D2-12/15, XPR-12C/12FD/15/18C CABLE SHEAVE PIN
WELDMENT
1 A
4 5575112 D2/GP/PCL/0XPR/PL-7000 SAFETY SHEAVE 1 C
5 5565350 D2/GP/PCL/XPR/PL-7000 SAFETY SHEAVE SPACER 1 C
6 5530030 HHB M6 x 1 x 8 1 -
7 5530756 HHB M6 x 1 x 25 1 -
8 5535357 NUT M6 x 1.0 NL 1 -
9 5520001 RUBBER GROMMET, 3/4 I.D. 1 -
10 5215269 XPR-12C LIFT HEAD ASSEMBLY 1 T
11 5502305 CYLINDER ASSEMBLY Ø2.5 x 69 1 J
12 5701115 CYLINDER CLAMP ASSY-74-79 1 -
WHERE USED
XPR-12CL
XPR-12CL-192
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AD
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5215293
XPR-12CL POWER SIDE
POST ASSEMBLY
01/05/2010
DO NOT SCALE DRAWING
1:25
SCALE:
THIRD ANGLE PROJECTION
OR 12/31/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
