DIMENSIONS ARE IN MM
☺
3
2
1

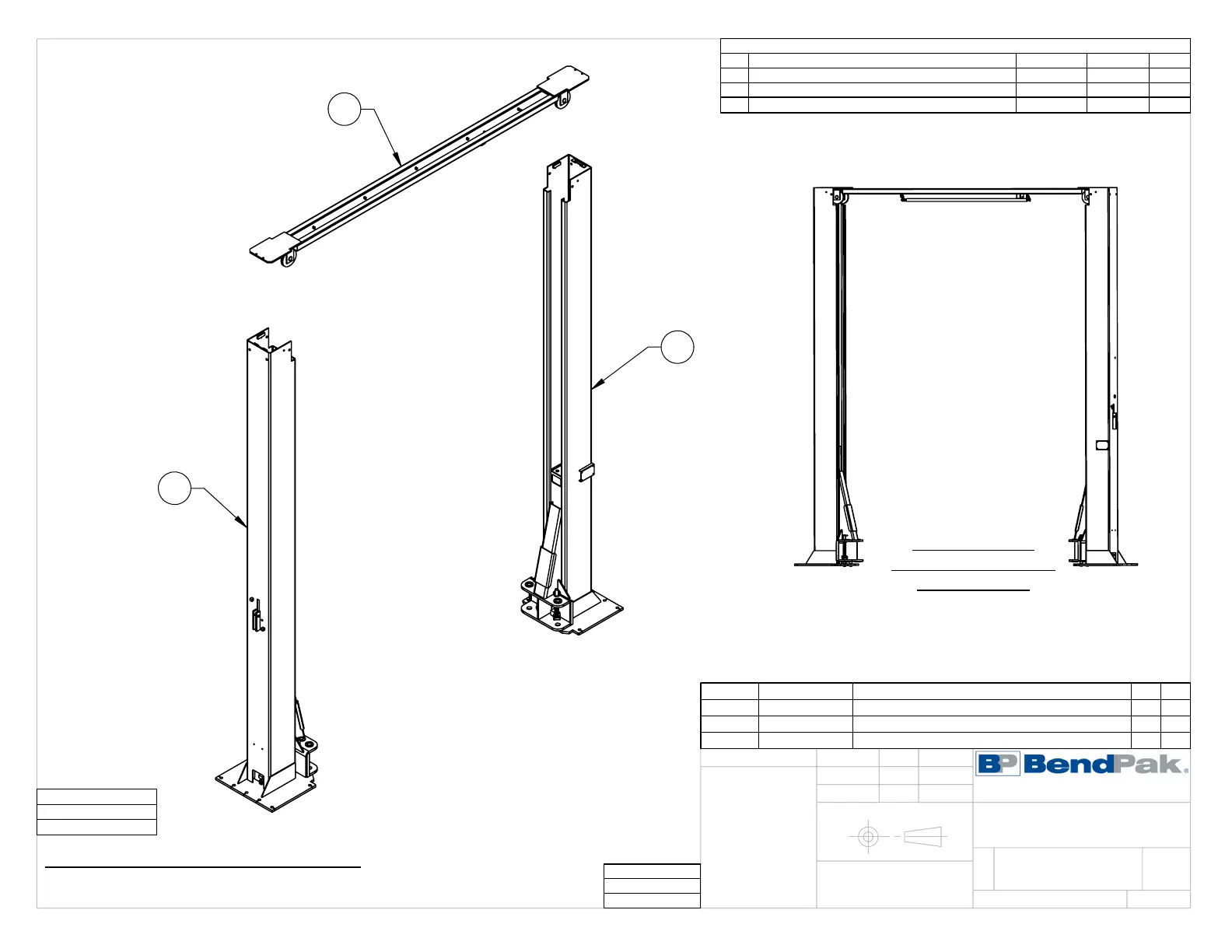

ISOMETRIC VIEW
FOR REFERENCE ONLY
DO NOT SCALE
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
AC
UPDATED BOM REVISIONS
05/16/2019
TS
01086
AD
UPDATED BOM REVISIONS
03/09/2020
TM
01107
AE
UPDATED BOM REVISIONS
12/22/2020
TM
01251
NEXT ASSEMBLY
5260563
5260567
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5215293
XPR-12CL POWER SIDE POST ASSEMBLY
1
AD
2 5215292
XPR-12CL OFF SIDE POST ASSEMBLY
1
AD
3 5210031
XPR-12/15/18C TOP TROUGH ASSEMBLY
1
L
WHERE USED
XPR-12CL
XPR-12CL-192
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
AE
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5245138
XPR-12CL LIFT
SUPERSTRUCTURE
01/29/2010
DO NOT SCALE DRAWING
1:35
SCALE:
THIRD ANGLE PROJECTION
OR
12/31/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
