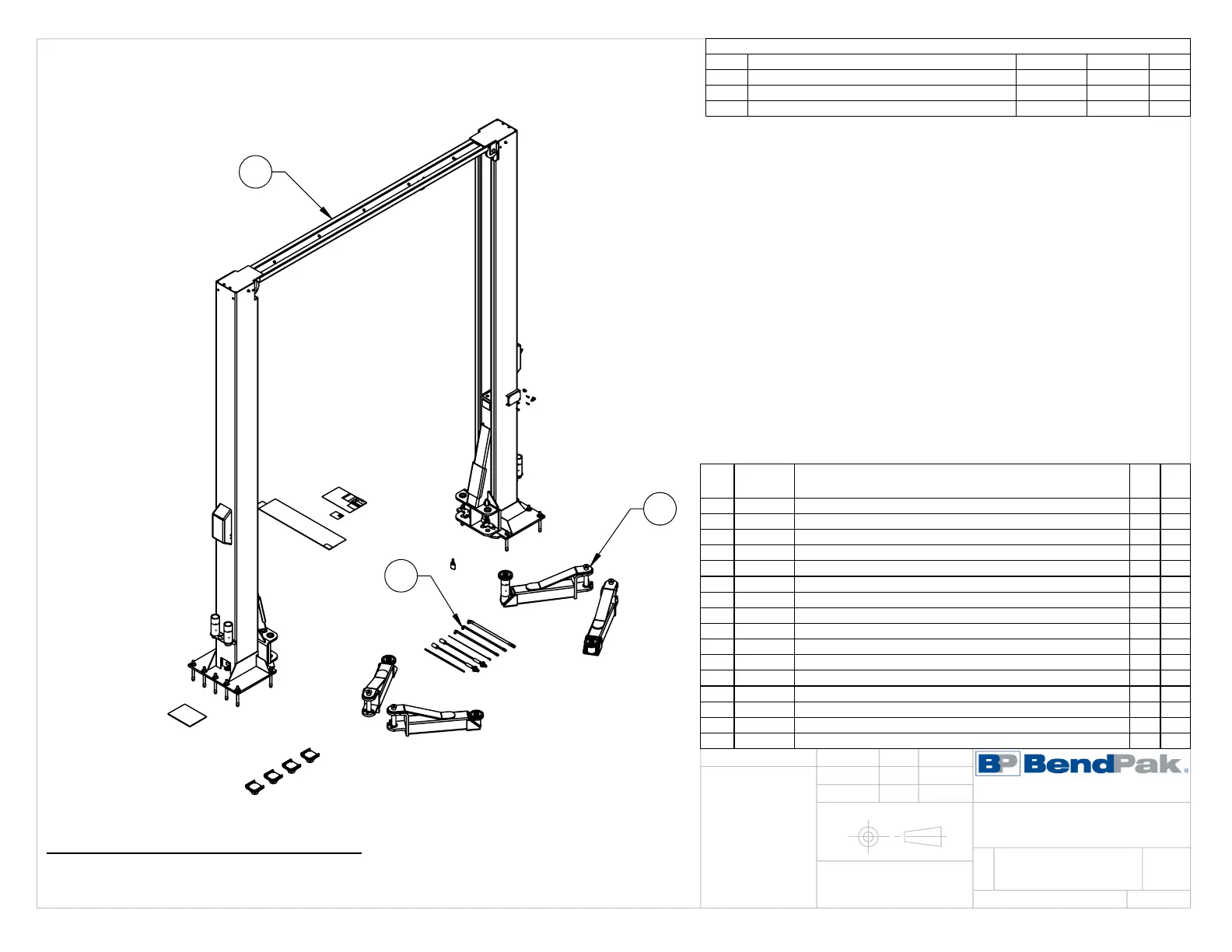

BendPak XPR-12CL Service Manual

DIMENSIONS ARE IN MM
☺
2
1
3
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5245138 XPR-12CL LIFT SUPERSTRUCTURE 1 AE
2 5250254 XPR-12CL PARTS BOX 1 F
3 5215283 XPR-12CL/FDL TRIPLE TELESCOPING ARM ASSEMBLY 4 K
- 5905109 WARNING ALI/WL 101 1 -
- 5905131 2 POST DECAL KIT, LESS ALI 1 E
- 5905404 MAX CAPACITY 12K DANGER LABEL, ENGLISH-FRENCH 1 -
- 5905465 MANUFACTURER LABEL 1 -
- 5905660 MAX CAPACITY NTRL 12K LABEL, ENGLISH-FRENCH 1 -
- 5905940 PRODUCT DATA LABEL 1 -
- 5905950 SERIAL TAG A 1 -
- 5905653 LABEL; ALI-ALCTV-2017 GOLD LABEL, US; MET LABS 1 -
- 5905414 GP/XPR LOCK-RELEASE LABEL 1 -
- 5905285 SERIALTAG EXTERIOR PEEL OFF INVENTORY LABEL 1 -
- 5905377 NOTICE LABEL, ALI/WLSIA01 1 -
- 5906044 AMERICAN OWNED LABEL 1 -
- 5905775 CALIFORNIA PROP. 65 LABEL 1 -
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
T UPDATED BOM REVISION 12/22/2020 TM 01251
U ADDED 5906044, UPDATED BOM REVISION 06/24/2021 TM 01310
V ADDED 5905775 08/09/2021 TM 01321
SHEET 1 OF 3
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
V
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
TM
5260567
XPR-12CL PRODUCTION
LIFT VER E
12/15/2015
DO NOT SCALE DRAWING
1:40
SCALE:
THIRD ANGLE PROJECTION
OR 08/12/2021
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE COLORS & GRAPHICS FOR LABEL PLACEMENT 2.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 3.
