BendPak XPR-12CL Service Manual

DIMENSIONS ARE IN MM
☺
1
2
3
4
REVISION
REV DESCRIPTION DATE EDITED BY ECO#
H UPDATED BOM REVISION 05/30/2018 TM 00953
J UPDATED BOM REVISION 08/12/2019 CA 01117
K UPDAT ED BOM REVISION 80/23/2019 TM 01123
NEXT ASSEMBLY
5260563
5260567
5260568
ITEM
NO
PART
NUMBER
DESCRIPTION QTY REV
1 5600993 XPR-12CL/FDL TRIPLE TELESCOPING ARM WELDMENT 1 K
2 5545341 WASHER M10 x Ø20 FLAT 3 -
3 5545200 WASHER M10 x Ø18 SL 3 -
4 5530302 HHB M10 x 1.5 x 40 FULLY THREAD 3 -
WHERE USED
XPR-12FDL
XPR-12CL
XPR-12CL-192
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
K
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF BENDPAK INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF BENDPAK INC. IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED .
JM
5215283

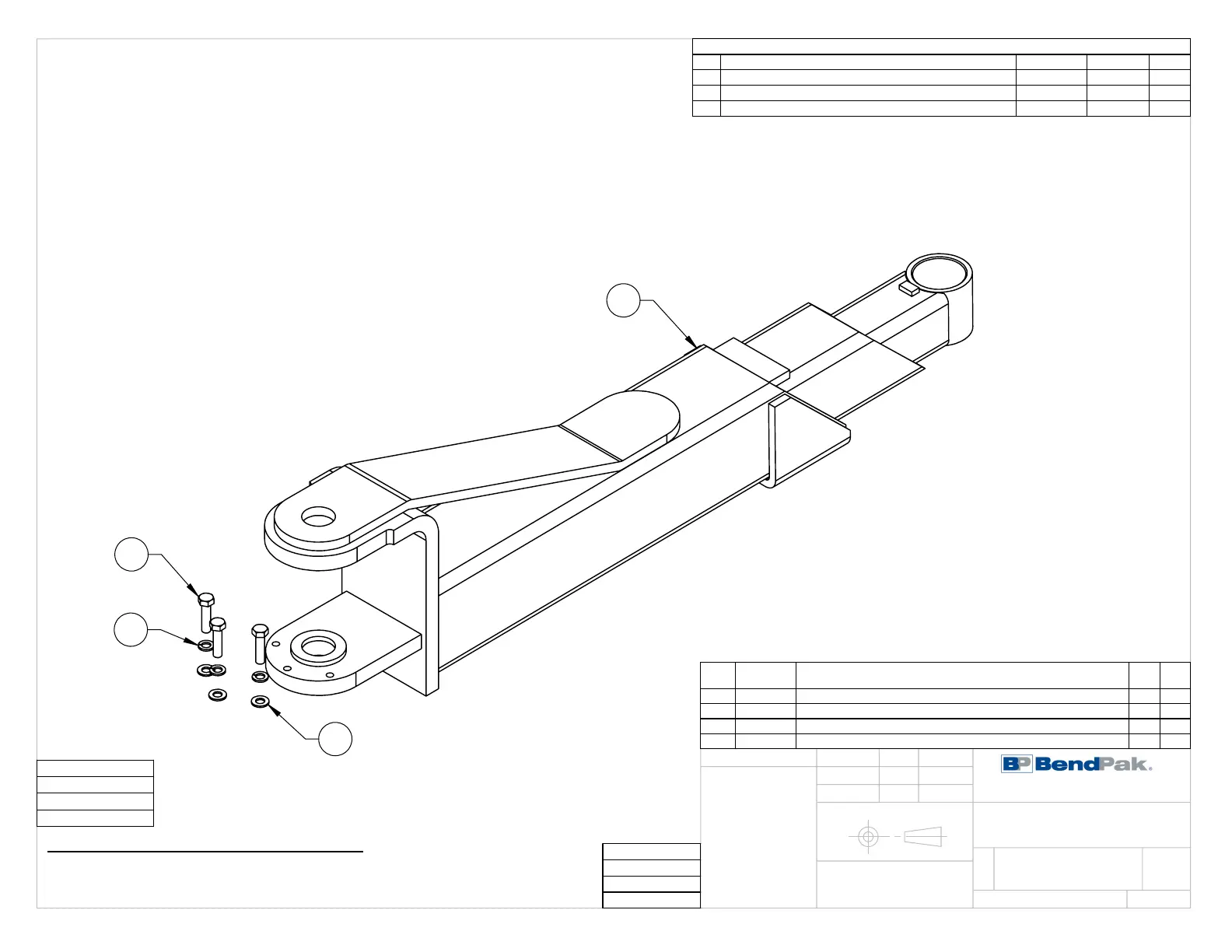

XPR-12CL/FDL TRIPLE
TELESCOPING ARM
ASSEMBLY
06/23/2015
DO NOT SCALE DRAWING
1:5
SCALE:
THIRD ANGLE PROJECTION
CA 08/26/2019
REFER TO MODEL FOR ADDITIONAL INFORMATION 1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING 2.
ASSEMBLE ITEMS AS SHOWN 3.
