DIMENSIONS ARE IN MM
☺
2
1
4
7
8
3
5
6
9
100
REVISION
REV
DESCRIPTION
DATE
EDITED BY
ECO#
Q
UPDATED BOM REVISION
03/07/2018
CA
00929
R
UPDATED BOM REVISION
03/29/2018
TM
00930
T
UPDATED BOM REVISIONS
03/09/2020
TM
01107
NEXT ASSEMBLY
5215292
5215293
ITEM NO
PART NUMBER
DESCRIPTION
QTY
REV
1 5600392
XPR-12CL LIFT HEAD WELDMENT
1
L
2 5716001
2 POST GUIDE BLOCK
8
G
3 5746099
XPR-12C/FD/15/18C Ø25mm LONG GEAR SHAFT
2
E
4 5701052
GP/XPR ARM INTERNAL GEAR STOP
2
F
5 5540130
XPR-12C/FD/15/18C LIFT HEAD SPRING
2
A
6 5580219
KEYRING 56mm x 3mm
2
-
7 5505106
SPRING PIN M6 x 50
2
-
8 5540006
SNAP RING TRUARC 5103-100
2
-
9 5930184
XPR-12/15/18 LIFT HEAD GUSSET COVER
1
C
WHERE USED
XPR-12CL
XPR-12CL-192
SHEET 1 OF 1
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
CHECKED
DRAWN
T
1645 LEMONWOOD DR.
SANTA PAULA, CA 93060
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS
THE SOLE PROPERTY OF
BENDPAK INC.
ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
BENDPAK INC.
IS
PROHIBITED.
NOTE: UNLESS OTHERWISE SPECIFIED
.
TM
5215269

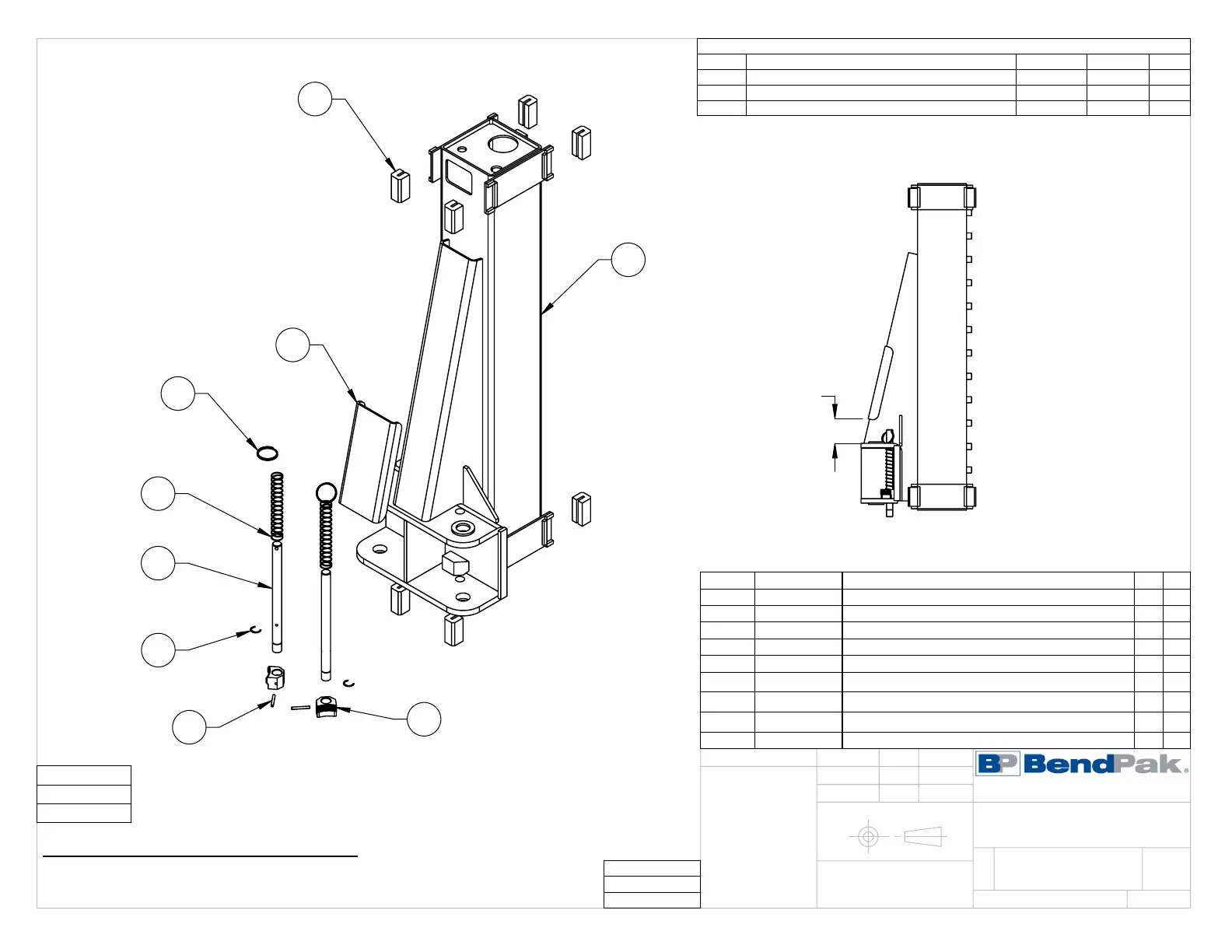

XPR-12C LIFT HEAD
ASSEMBLY
11/27/2009
DO NOT SCALE DRAWING
1:12
SCALE:
THIRD ANGLE PROJECTION
OR
04/15/2020
REFER TO MODEL FOR ADDITIONAL INFORMATION
1.
SEE SHIPPING INSTRUCTIONS FOR FINAL PACKAGING
2.
ASSEMBLE ITEMS AS SHOWN
3.
