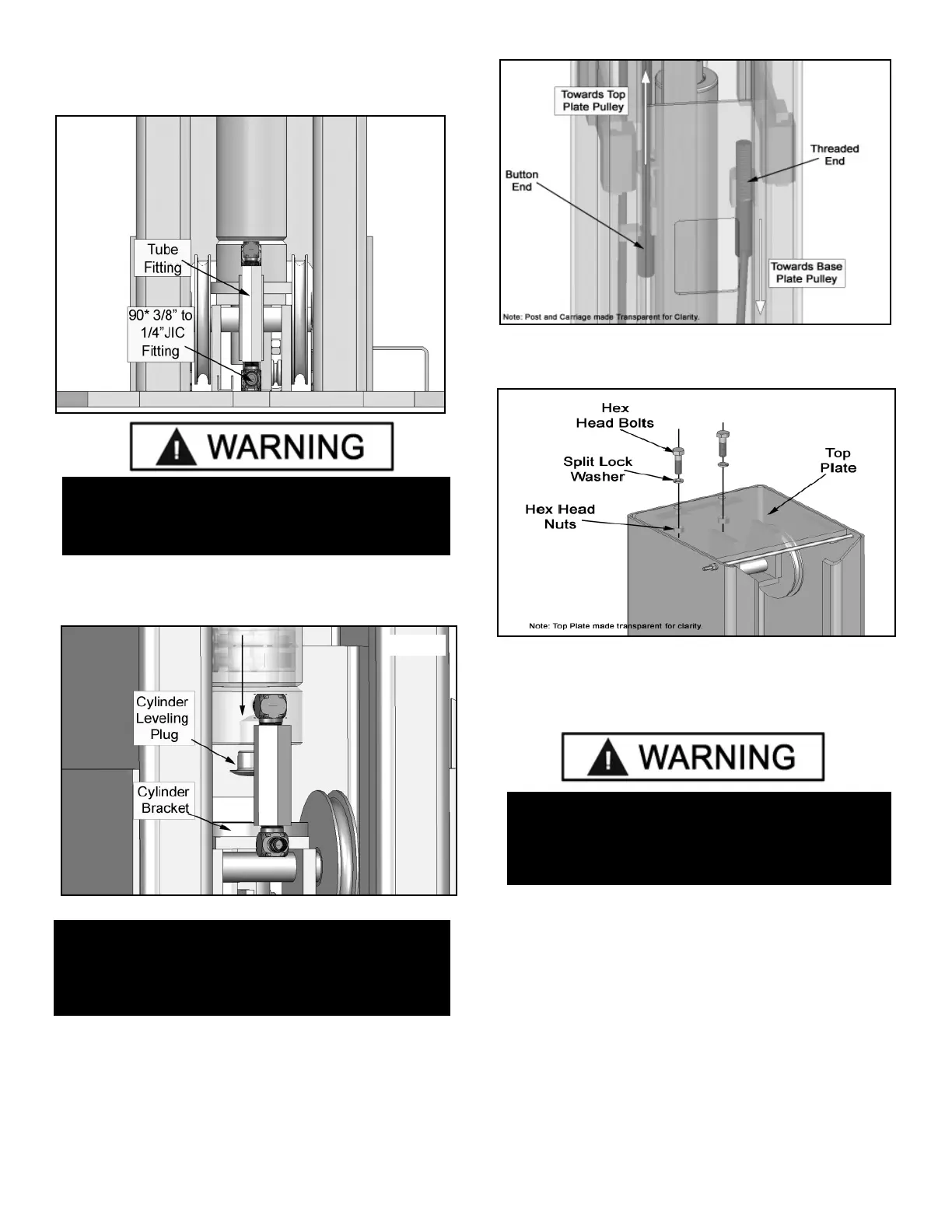

4. Connect Tube Fitting Assembly to the 90* 3/8 Fitting that
was installed into the Cylinder Port, using Teflon tape on the
pipe threads. (See Fig. 4.5)
5. Ensure the Cylinder seats back into the Mounting
Bracket and the Cylinder Leveling Plug sits in the hole in the
bottom of the Cylinder. (See Fig 4.6)
6. Route the Button End of the Equalizer Cable through
the Cable Retainer located inside the Carriage on the front
wall, up to the Top Plate Pulley, around the Pulley and coil
the remaining Cable up and leave it in the Column above the
Carriage. (See Fig 4.7)
7. Bolt the Top Plate Assembly to the Column using the
M10 Bolts, Washers and Nuts provided in the parts box.
(See Fig 4.8)
8. Repeat Step 4, Items 1-7 for the Offside Column.
9. Stand the Columns up and place them in position to be
mounted to the floor.
10. Proceed to Step 5.
NOTE:
REFER TO STEP 11 FOR CABLE ROUTING DETAILS.
ROUTE BUTTON END OF CABLES PRIOR TO
STANDING UP THE COLUMNS.
Fig 4.8
Fig 4.7
Fig 4.6
WARNING!
FAILURE TO TIGHTEN THE TUBE FITTINGS
FAILURE TO TIGHTEN THE TUBE FITTINGS
PROPERLY CAN CAUSE DAMAGE TO THE LIFT.
PROPERLY CAN CAUSE DAMAGE TO THE LIFT.
WARNING!
ENSURE THE LIFT HEAD IS ALL THE WAY
AGAINST THE BASE PLATE. PRIOR
TO RAISING THE COLUMNS.
Fig 4.5
To Next Page
