11

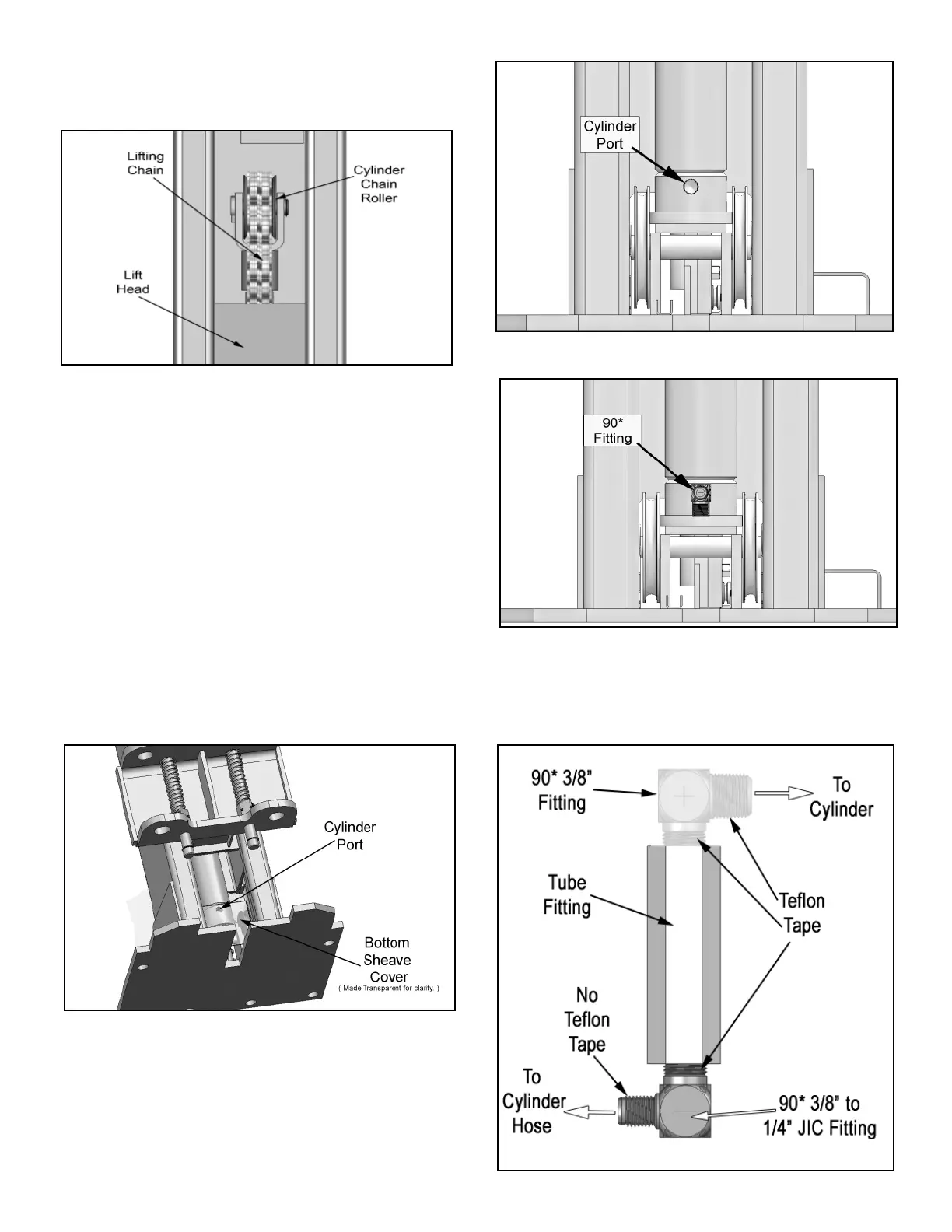

15. Slowly lower the Lift Head down to the Base of the
Column. Guide the Chain and the Cylinder Assembly so
as to keep the Chain in line with the Chain Roller.
(See Fig. 3.13 )
16. Repeat the procedure for the other Column.
STEP 4
(Preparing the Columns)
COMPLETE THE FOLLOWING
PRIOR TO STANDING UP COLUMNS.
1. Lay the Columns on the floor, slide the Carriage up
towards to the top of the Columns just enough to gain access
to the Port on the base of the Cylinder. Remove the Hair Clip
pins and remove the Bottom Sheave Cover.
(See Figs. 4.1 & 4.2)
2. Install the 90* 3/8” Fitting into the Cylinder port using
Teflon tape on the pipe threads. (See Fig. 4.3)
3. Assemble the Tube Fitting and 3/8” to 1/4” Hose Fitting
together. Use Teflon tape on all pipe threads making sure that
all pieces are fitted together as tight as possible. DO NOT use
Teflon tape on the JIC hose fittings. (See Fig. 4.4)
Fig 4.3
Fig 4.4
Fig 3.13
Fig 4.2
Fig 4.1
