BendPak XPR-9F User Manual

22
STEP 13
(Installing the Lift Arms)
1. Place the appropriate Lift Arm Assy. on the Lift
Heads. (See Fig. 13.3)
2. Install the Left Head pins into the Lift Head and
through the holes in the Arm Assy. (See Fig. 13.1)
3. Install the Snap Ring into the groove in the Lift Head
Pin the under side of the Lift Head. (See Fig. 13.2)

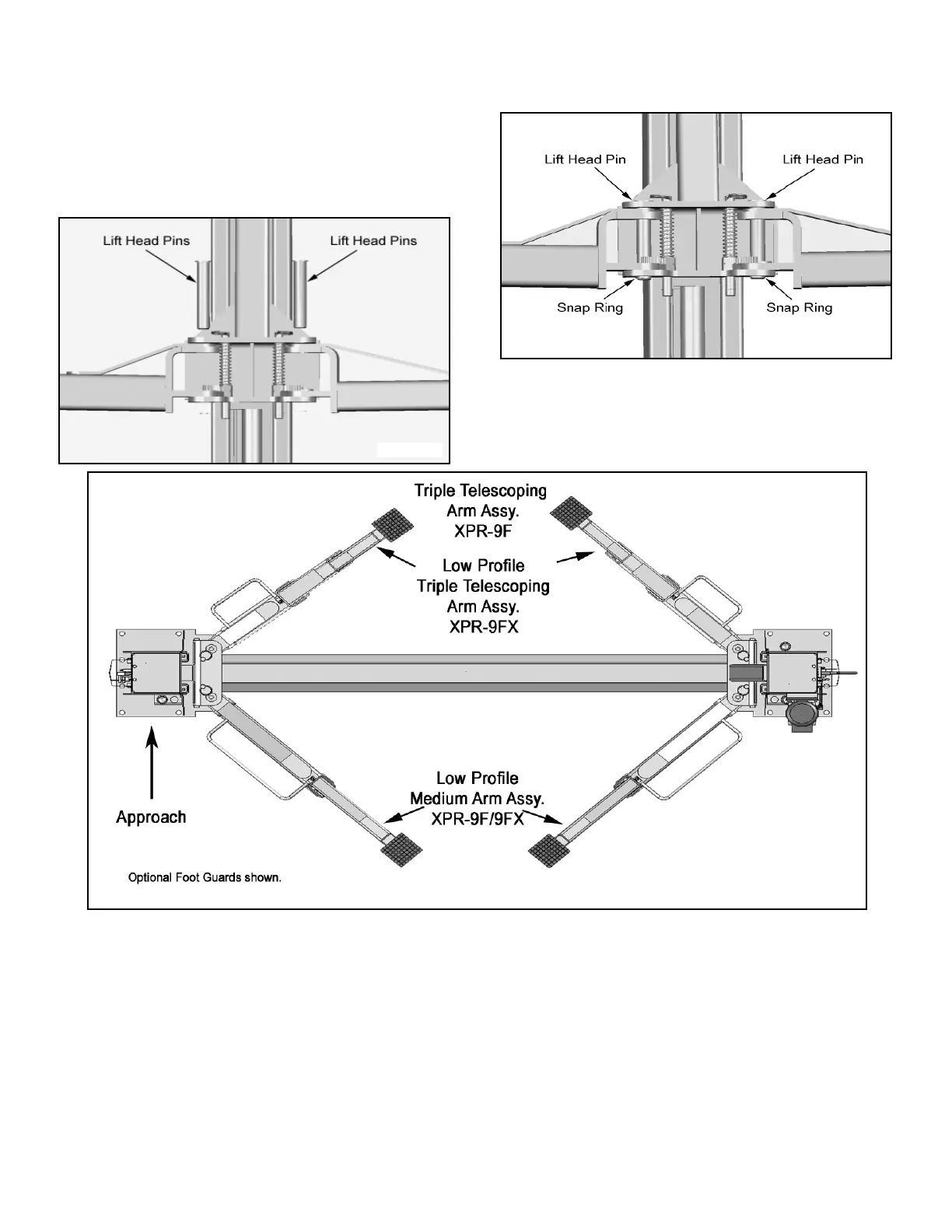

Fig. 13.1
Fig. 13.2
Fig. 13.3
