13
STEP 5
( Site Layout )
1. Determine which side will be the approach side.
2. Now determine where the Power Unit will be located.
The POWERSIDE Column has the Power Unit Mounting
Bracket attached to the side.
3. Once a location is determined, use a carpenters chalk
line to layout a grid for the Column locations. Keep all
dimensions and squareness within 1/8” or malfunctioning of
the lift can occur.
4. After the Column locations are properly marked, use a
chalk or crayon to make an outline of the Column on the
floor at each location using the Column base plates as a
template. (See Fig 5.1)
5. Double check all dimensions and make sure that the
layout is perfectly square.
Fig 4.1.

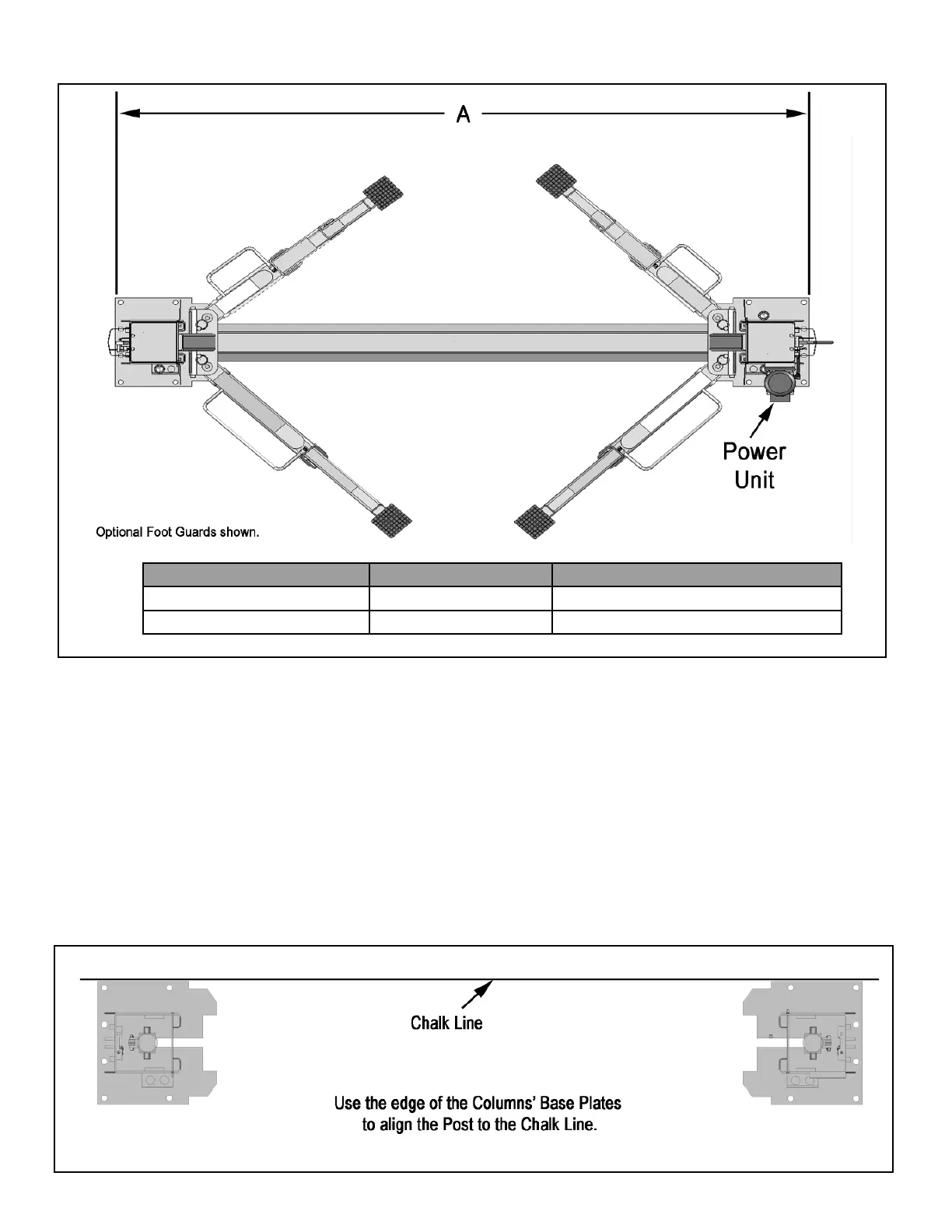

FLOOR PLAN / LAYOUT
Model A Capacity
XPR-9F 3353 mm / 132” 9,000 Lbs.
XPR-9FX 3683 mm / 145” 9,000 Lbs.
Fig 5.1
