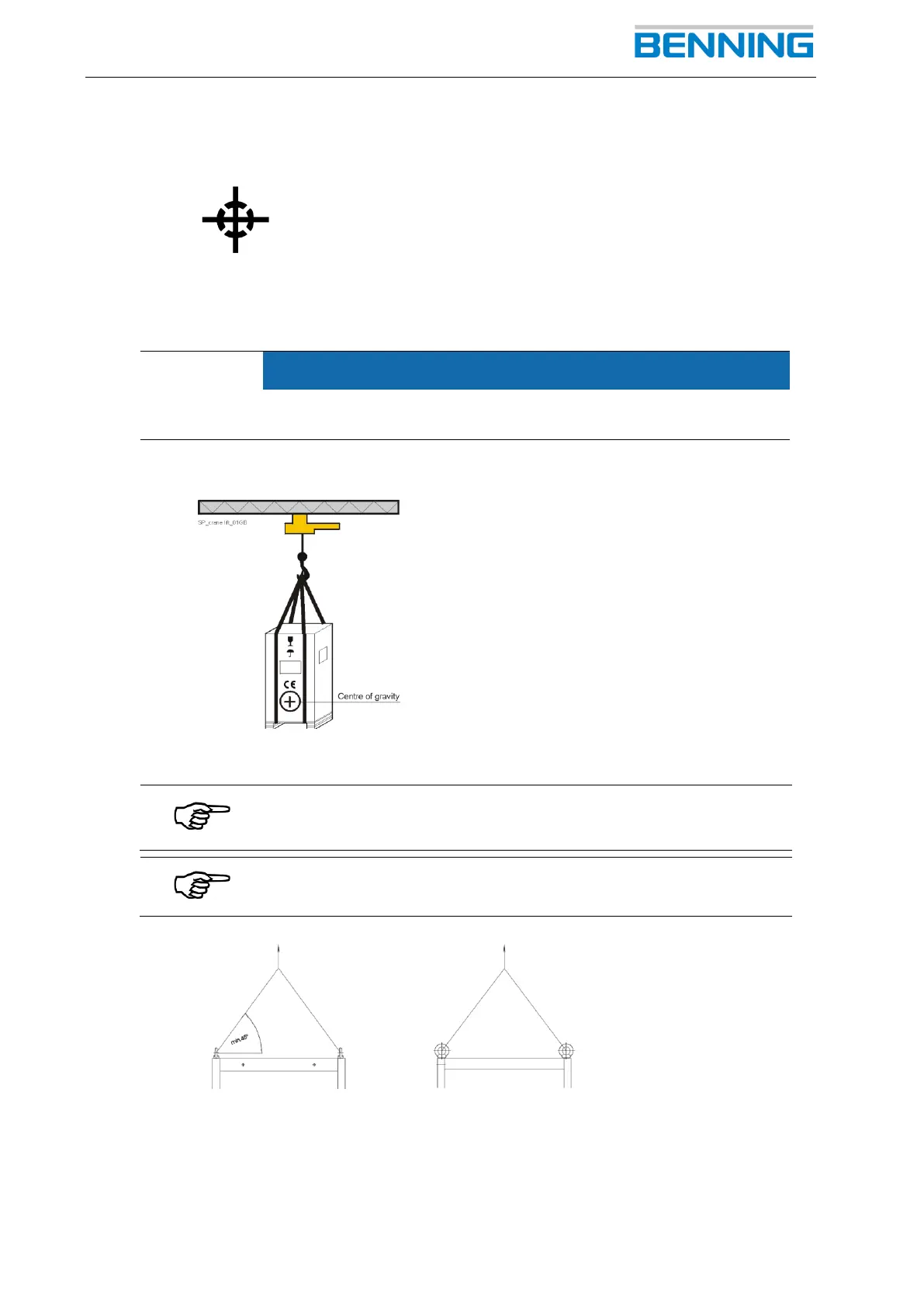

4.1 The system’s centre of gravity
The centre of gravity is not in the centre. This must be taken into account during
transport.
The centre of gravity is marked on the packaging with the centre of gravity symbol.
Figure 4-1: Centre of gravity symbol
4.2 Transport options
4.2.1 Transport with lifting belts
Property damage in the event of overload!
Only use lifting belts approved for the weight!
Lifting belts must be used when transporting the unit in an unpacked state. They must be
positioned so that the instruments and switches on the front door cannot be damaged.
Figure 4-2: Transport with lifting belts
4.2.2 Upright (vertical) transport on crane eyelets
Use only the original crane eyelets or swivel lifting eyes for transporting the
system with the crane. The crane eyelets were installed by the
manufacturer.
The information shown in Figure 4-3 must be observed when transporting
the unit upright using crane eyelets.
Figure 4-3: Crane eyelets – vertical transport
